Specifications

Absolute Maximum Ratings

over operating free-air temperature range(1)(2) (unless otherwise noted)
MIN MAX UNIT
VDD(3) Input supply voltage –0.3 20 V
OUTA, OUTB, SRA and SRB –0.3 VDD + 0.3 V
COMP –0.3 VREF + 0.3 V
Input voltages on SS and EN –0.3 5.5 V
Input voltages on RT, PS, SP, ILIM, OVP, HICC, VSENSE, EA+ and EA- –0.3 3.6 V
Input voltage on RAMP/CS –0.3 4.3 V
Output voltage on VREF –0.3 3.6 V
Lead temperature (soldering 10 sec) PW package 300 °C
Tstg Storage temperature –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
These devices are sensitive to electrostatic discharge; follow proper device handling procedures.
All voltages are with respect to GND unless otherwise noted. Currents are positive into, negative out of the specified terminal. See Mechanical, Packaging, and Orderable Information of the data sheet for thermal limitations and considerations of packages.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±3000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±2000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage, VDD 4.7 12 17 V
Supply bypass capacitor, CVDD 1 µF
VREF bypass capacitor 0.5 2 µF
Error amplifier input common-mode (REF/EA+, FB/EA-) 0 3 V
VSENSE input voltage 0 3.3 V
RT resistor 12.5 200
PS, SP resistor 5 250
RAMP/CS voltage 0 2.7 V
Operating junction temperature –40 150 °C

Thermal Information

THERMAL METRIC UCC28250 UNIT
RGB (VQFN) PW (TSSOP)
20 PINS 20 PINS
RθJA Junction-to-ambient thermal resistance 126 with hot spot,
104 without hot spot
60.3 with hot spot,
39.3 without hot spot
°C/W
RθJC(top) Junction-to-case(top) thermal resistance 31.5 °C/W
RθJB Junction-to-board thermal resistance 55.8 °C/W
RθJC(bot) Junction-to-case(bottom) thermal resistance 0.8 °C/W

Electrical Characteristics

VDD = 12 V, 1-µF capacitor from VDD and VREF to GND, TA = TJ = –40°C to 125°C, RT = 75 kΩ connected to ground to set FSW = 200 kHz (unless otherwise noted). (1)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY CURRENTS
IDD(off) Start-up current VDD = 3.6 V 150 275 µA
IDD Operating supply current 100-pF capacitor on OUTA, OUTB, SRA and SRB 2 2.7 3.4 mA
IDD(dis) Standby current EN = 0 V 250 425 600 µA
UNDERVOLTAGE LOCKOUT
VUVLOR Start threshold 4 4.3 4.6 V
VUVLOF Minimum operating voltage after start 3.8 4.1 4.4 V
Hysteresis 0.15 0.2 0.25 V
SOFT START
ISS Soft-start charge current VSS = 0 V 25 27 29 µA
VSS(max) Clamp voltage 3.3 3.6 4 V
ENABLE(2)
Trigger threshold 2.25 V
Minimum pulse width for pulse enable 3 µs
ERROR AMPLIFIER
High-level COMP voltage 2.8 3 V
Low-level COMP voltage 0.3 0.4 V
Input offset -12 12 mV
Open loop gain 70 100 dB
ICOMP(snk) COMP sink current 3 6.5 9 mA
ICOMP(src) COMP source current 2 4.5 8 mA
OSCILLATOR
FSW(nom) Nominal switching frequency at OUTA or OUTB set by RT resistor RT/SYNC = 75 kΩ, RSP = 20 kΩ 185 200 215 kHz
FSW(min_sync) Minimum switching frequency at OUTA or OUTB set by external sync frequency fRT/SYNC = 100 kHz 85 kHz
FSW(max_sync) Maximum switching frequency at OUTA or OUTB set by external sync frequency fRT/SYNC = 2.5 MHz 1.15 MHz
External synchronization signal high 1 V
External synchronization signal low 0.2 V
VOLTAGE REFERENCE
VVREF Output voltage VDD = from 7 V to 17 V, IVREF = 2 mA 3.22 3.3 3.38 V
0 < IREF < 10 mA 3.22 3.3 3.38
Short circuit current VREF = 3 V, TJ = 25°C 12 25 40 mA
CURRENT SENSE, CYCLE-BY-CYCLE CURRENT LIMIT WITH HICCUP
VILIM ILIM cycle-by-cycle threshold 0.495 0.502 0.509 V
TPDILIM Propagation delay from ILIM to OUTA and OUTB outputs Exclude leading edge blanking 15 25 36 ns
TBLANK leading edge blanking 40 60 90 ns
Current limit shutdown delay timing program current Measured at HICC pin 55 75 95 µA
Hiccup timing program current Measured at HICC pin 2 2.7 3.5 µA
VHICC_SD Current limit shutdown delay timer threshold at HICC 0.55 0.6 0.65 V
VHICC_PU HICC pullup threshold 2.3 2.4 2.5 V
VHICC_RST Hiccup restart threshold 0.25 0.3 0.35 V
VCS(max) RAMP/CS clamp voltage 10-V ramp charging voltage source with 40-kΩ current limiting resistor 3.5 4 4.5 V
OVP/OTP COMPARATOR
VOVP Internal reference 0.66 0.7 0.74 V
IOVP Internal current 8.5 11 13.5 µA
PRIMARY OUTPUTS
Rise/fall time CLOAD = 100 pF 8 ns
RSRC Output source resistance IOUT = 20 mA 12 20 35 Ω
RSNK Output sink resistance IOUT = 20 mA 4 12 30 Ω
SYNCHRONOUS RECTIFIER OUTPUTS
Rise/fall time CLOAD = 100 pF 8 ns
RSRC Output source resistance IOUT = 20 mA, VDD = 12 V 12 20 35 Ω
IOUT = 20 mA, VDD = 5 V 15 25 45
RSNK Output sink resistance IOUT = 20 mA, VDD = 12 V 4 12 30 Ω
TDPS Primary off to secondary on dead time PS = VREF -5 0 7.5 ns
PS = 27 kΩ 27 40 50
PS = 27 kΩ, 25°C 37 40 43
TDSP Secondary off to primary on dead time SP = VREF -5 0 7.5 ns
SP = 20 kΩ 30 40 50
SP = 20 kΩ, 25°C 37 40 43
Typical values for TA = 25°C.
Refer to EN pin description in .

Typical Characteristics

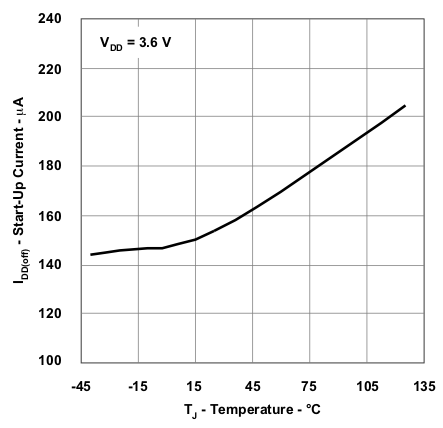

UCC28250 wav1_lusa29.gif Figure 1. Start-up Current vs
Temperature

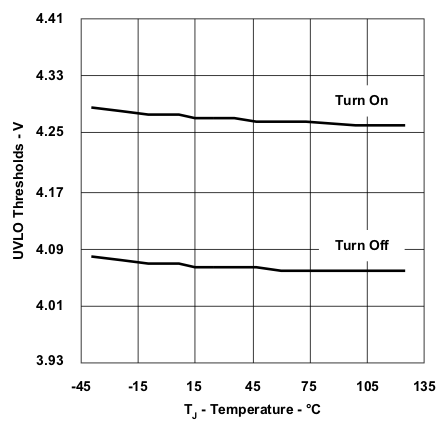

UCC28250 wav3_lusa29.gif Figure 3. UVLO Thresholds vs
Temperature

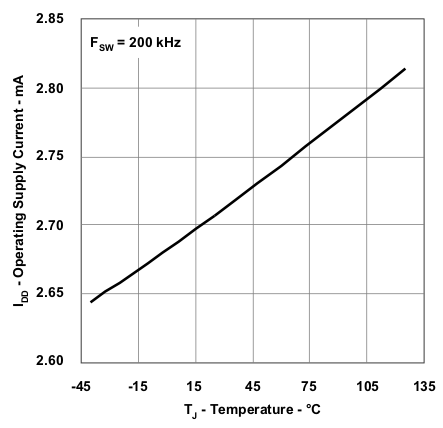

UCC28250 wav5_lusa29.gif Figure 5. Operating Supply Current vs
Temperature

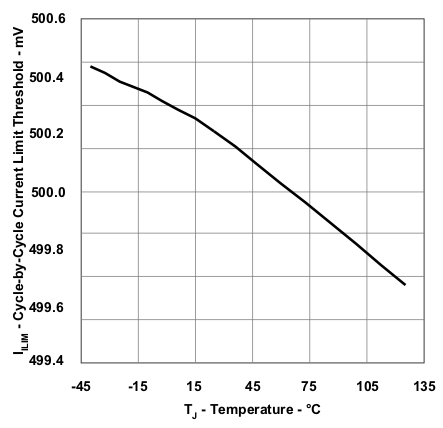

UCC28250 wav7_lusa29.gif Figure 7. Cycle-by-Cycle Current Limit vs Temperature

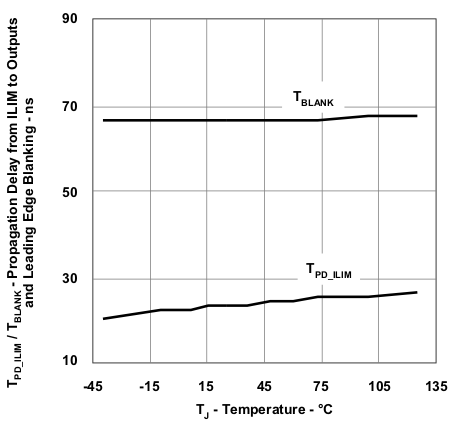

UCC28250 wav9_lusa29.gif Figure 9. Propagation Delay and Leading Edge Blanking vs Temperature

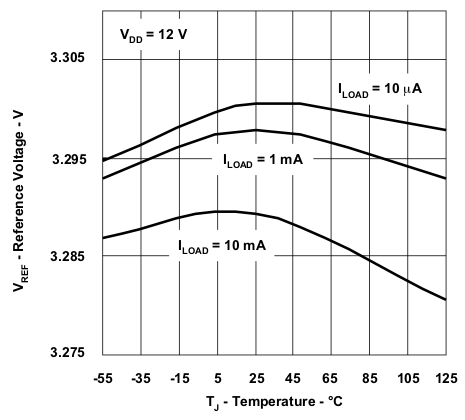

UCC28250 wav11_lusa29.gif Figure 11. Reference Voltage vs Temperature

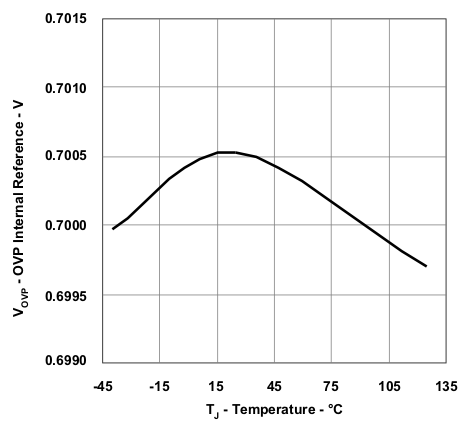

UCC28250 wav13_lusa29.gif Figure 13. OVP Internal Reference vs Temperature

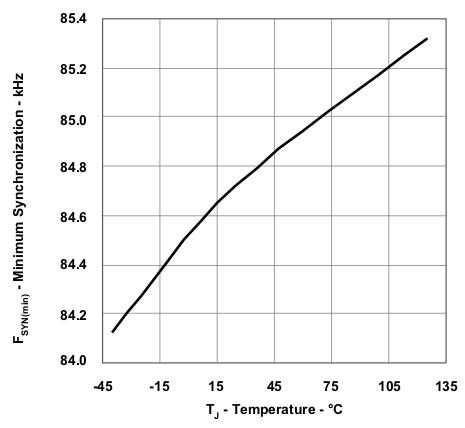

UCC28250 wav15_lusa29.gif Figure 15. Minimum Synchronization Frequency vs Temperature

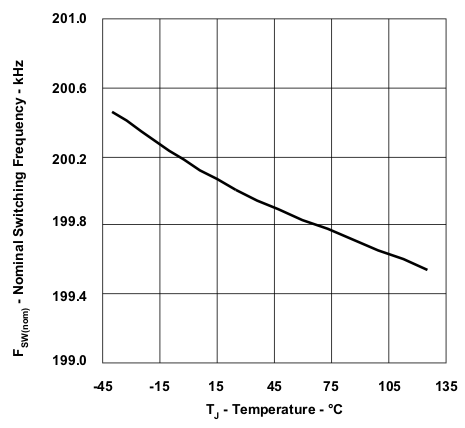

UCC28250 wav17_lusa29.gif Figure 17. Nominal Switching Frequency vs Temperature

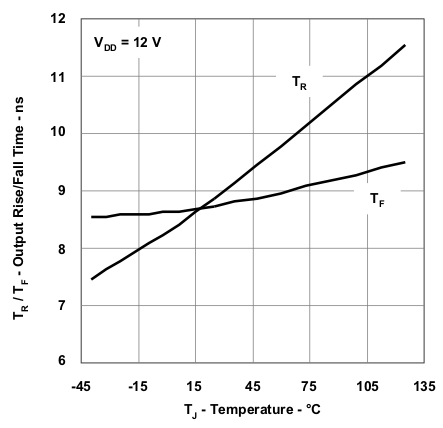

UCC28250 wav19_lusa29.gif Figure 19. Output Rise/Fall Time vs Temperature

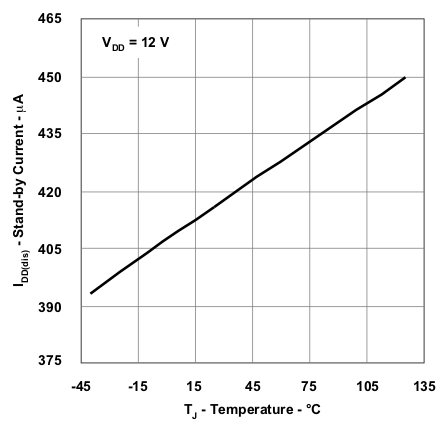

UCC28250 wav2_lusa29.gif Figure 2. Stand-by Current vs Temperature

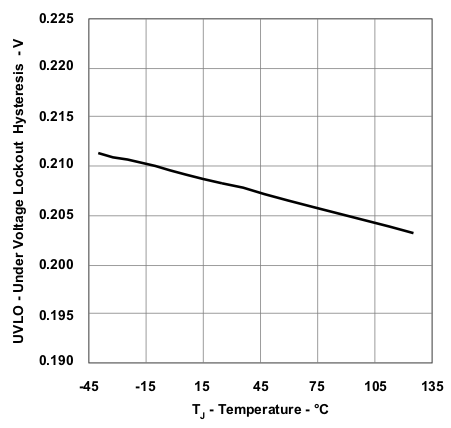

UCC28250 wav4_lusa29.gif Figure 4. UVLO Voltage Lockout Hysteresis

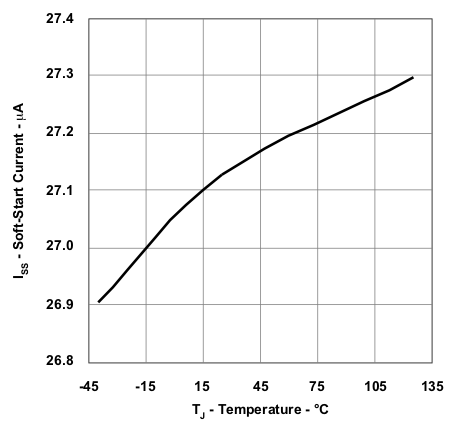

UCC28250 wav6_lusa29.gif Figure 6. Soft-start Current vs Temperature

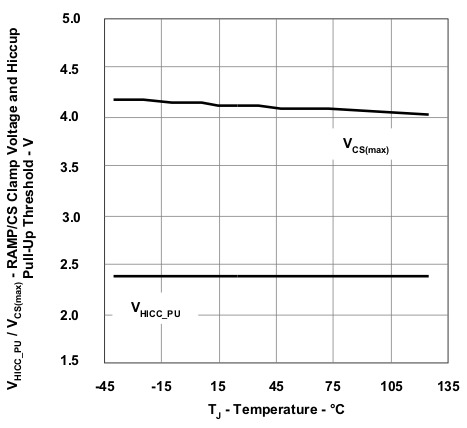

UCC28250 wav8_lusa29.gif Figure 8. RAMP/CS Clamp Voltage and Hiccup Pullup Threshold vs Temperature

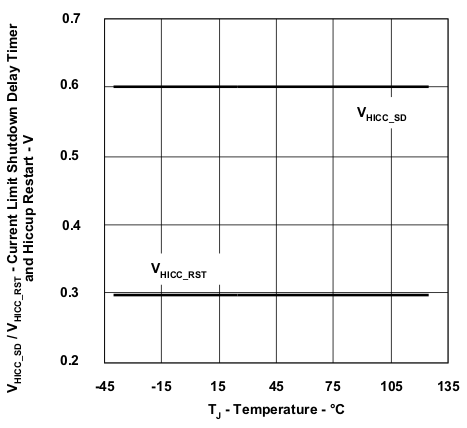

UCC28250 wav10_lusa29.gif Figure 10. Current Limit Shutdown Delay Timer and Hiccup Restart vs Temperature

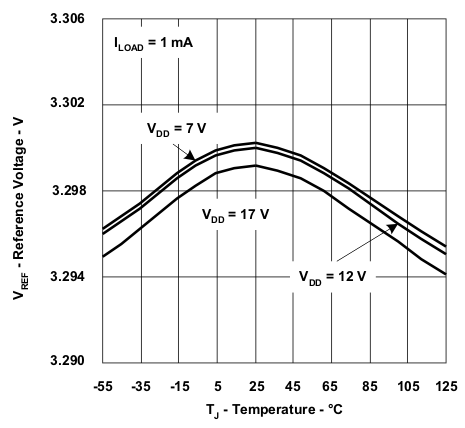

UCC28250 wav12_lusa29.gif Figure 12. Reference Voltage vs Temperature

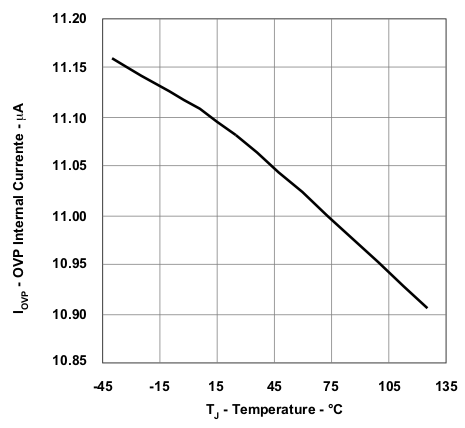

UCC28250 wav14_lusa29.gif Figure 14. OVP Internal Current vs Temperature

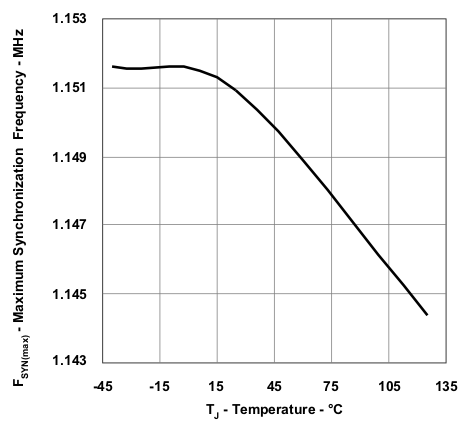

UCC28250 wav16_lusa29.gif Figure 16. Maximum Synchronization Frequency vs Temperature

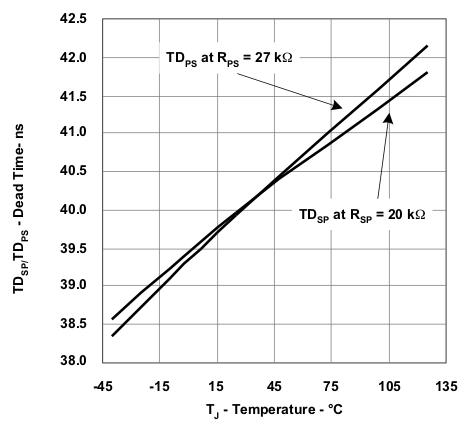

UCC28250 wav18_lusa29.gif Figure 18. Dead Time vs Temperature

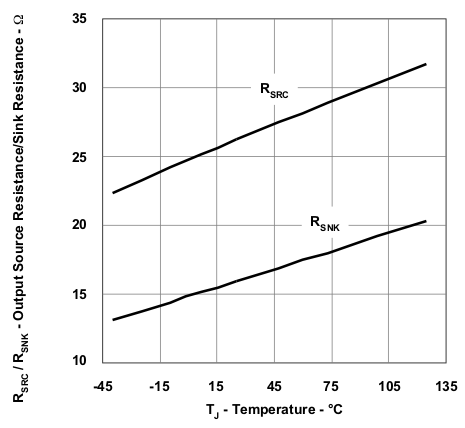

UCC28250 wav20_lusa29.gif Figure 20. Output Source Resistance/Sink Resistance vs Temperature
