Typical Characteristics

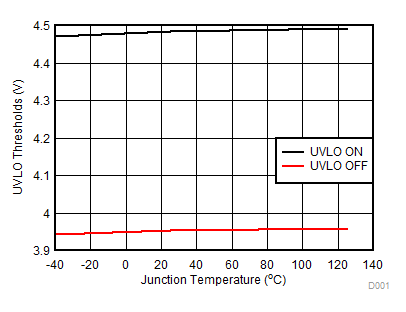

Figure 7-1 UVLO Thresholds vs Temperature
GUID-08431300-9F0F-4313-A24E-536D56E448B4-low.gifFigure 7-3 SR Turn-on Threshold Voltage vs Temperature
GUID-25791F6F-322C-4EDF-B514-CDE244E29435-low.gifFigure 7-5 Proportional Gate Drive Threshold vs Temperature
ILOAD_REG = 10 mA
Figure 7-7 REG Dropout in Pass-through Mode vs Temperature

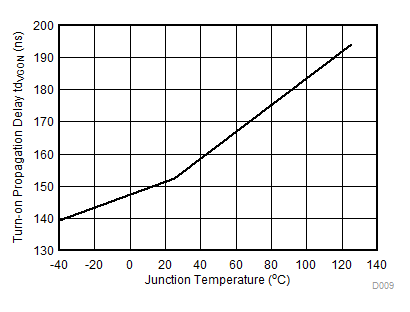

GUID-AEE49F56-276B-4AA3-A26C-D9015DEDC2D0-low.gifFigure 7-9 SR Turn-on Delay Time vs Temperature
GUID-4A40AED5-854A-4537-A68F-AF61C132CC20-low.gifFigure 7-11 Standby Current vs Temperature
CVG1 = CVG2 = 0 pFVVD1= VVD2 = 1 V

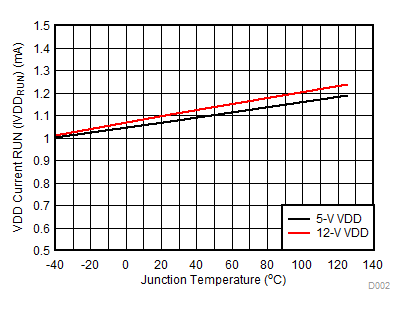

Figure 7-2 Bias Supply Current vs Temperature (No Switching)

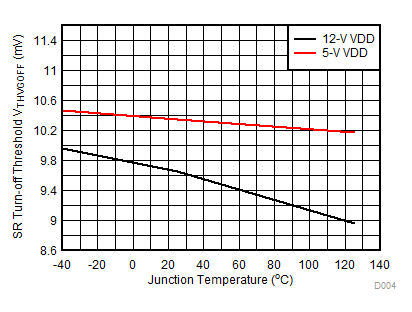

GUID-F8D903CB-3D4B-4B55-8B0B-98A8632B4650-low.gifFigure 7-4 SR Turn-off Threshold Voltages vs Temperature
GUID-C461F47B-D4DC-49D8-8D63-682DC94401C3-low.gifFigure 7-6 REG Pin Voltage vs Temperature at Different Loading Conditions

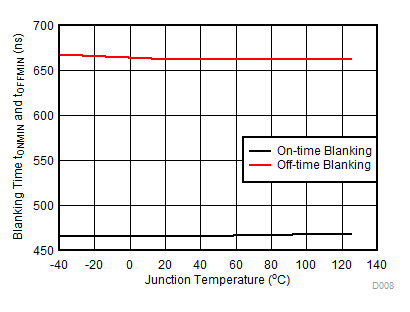

Figure 7-8 Blanking Time vs Temperature

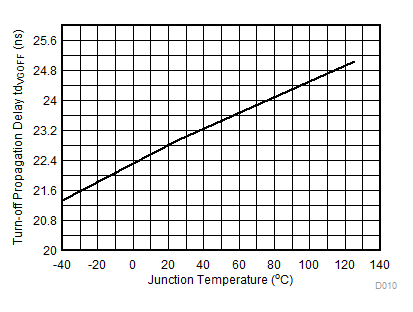

GUID-38A7A27A-263D-46F9-B1AB-B0739A1458CB-low.gifFigure 7-10 SR Turn-off Propagation Delay vs Temperature

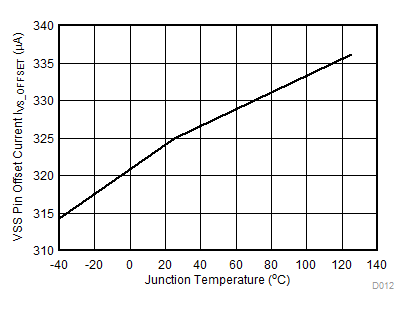

GUID-4BA7E0A7-F680-42A7-B9F4-124984ED98C4-low.gifFigure 7-12 VSS Pin Offset Current vs Temperature
