11.2 Layout Example

Figure 41 shows a 2-layer PCB layout example with the signals and key components labeled.

UCC20225 fig39b_SLUSCV8.gifFigure 41. Layout Example

Figure 42 and Figure 43 shows top and bottom layer traces and copper.

NOTE

There are no PCB traces or copper between the primary and secondary side, which ensures isolation performance.

PCB traces between the high-side and low-side gate drivers in the output stage are increased to maximize the creepage distance for high-voltage operation, which will also minimize cross-talk between the switching node VSSA (SW), where high dv/dt may exist, and the low-side gate drive due to the parasitic capacitance coupling.

UCC20225 fig40a_SLUSCV8.gif
A.

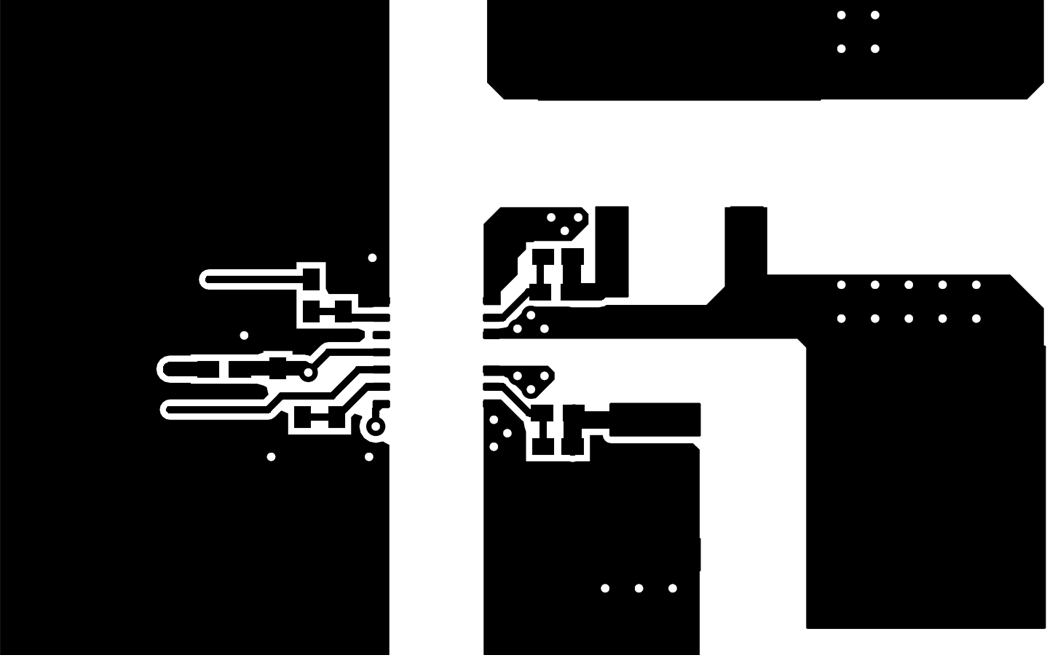

Figure 42. Top Layer Traces and Copper
UCC20225 fig41a_SLUSCV8.gif
A.

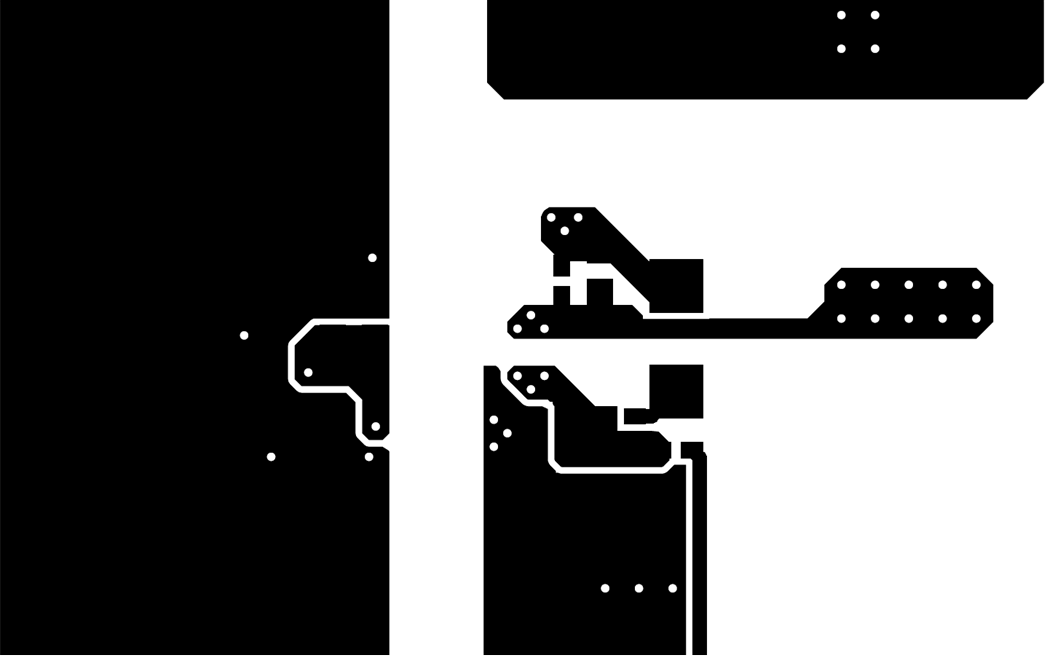

Figure 43. Bottom Layer Traces and Copper

Figure 44 and Figure 45 are 3D layout pictures with top view and bottom views.

NOTE

The location of the PCB cutout between the primary side and secondary sides, which ensures isolation performance.
UCC20225 fig42a_SLUSCV8.gif
A.
Figure 44. 3-D PCB Top View
UCC20225 fig43a_SLUSCV8.gif
A.
Figure 45. 3-D PCB Bottom View
