6.11 Typical Characteristics

TUSB546A-DCI D001_SLLSEV7.gif

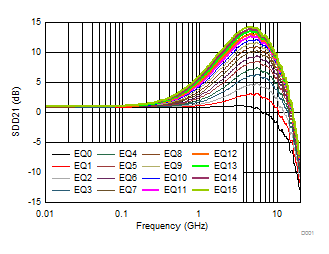

Figure 1. DisplayPort EQ Settings Curves
TUSB546A-DCI D003_SLLSEV7.gif
Figure 3. USB TX EQ Settings Curves
TUSB546A-DCI D005_SLLSEV7.gif
Figure 5. USB TX Linearity Curves at 2.5 GHz
TUSB546A-DCI D007_SLLSEV7.gif
Figure 7. Input Return Loss Performance
TUSB546A-DCI TUSB546A_DCI_8p1G_Eye_SLLSF14.gif
Figure 9. DisplayPort HBR3 Eye-Pattern Performance with 12-inch Input PCB Trace at 8.1 Gbps
TUSB546A-DCI D002_SLLSEV7.gif
Figure 2. USB RX EQ Settings Curves
TUSB546A-DCI D004_SLLSEV7.gif

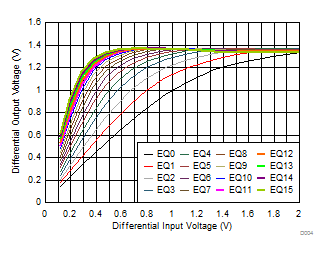

Figure 4. DisplayPort Linearity Curves at 4.05 GHz
TUSB546A-DCI D006_SLLSEV7.gif
Figure 6. USB RX Linearity Curves at 2.5 GHz
TUSB546A-DCI D008_SLLSEV7.gif
Figure 8. Output Return Loss Performance
TUSB546A-DCI TUSB546A_DCI_5G_Eye_SLLSF14.gif
Figure 10. USB 3.1 Gen1 Eye-Pattern Performance with
12-inch Input PCB Trace at 5 Gbps
