Figure 6. R_on vs V_COM

Figure 8. R_on vs V_COM (V_CC = 2.7 V)

Figure 10. Q_C vs V_COM

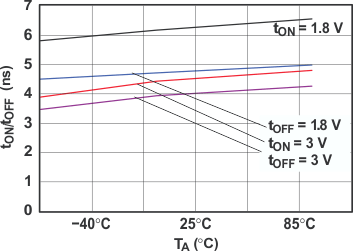

Figure 12. t_ON and t_OFF vs Temperature

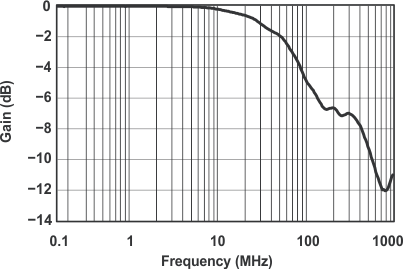

Figure 14. Gain vs Frequency
(V_CC = 3 V)

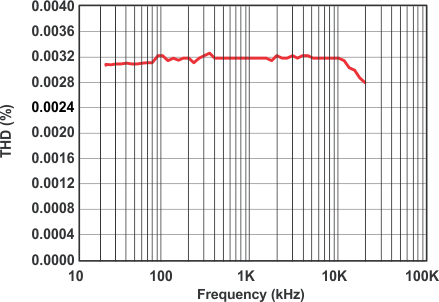

Figure 16. Total Harmonic Distortion vs Frequency
(R_L = 32 Ω)

Figure 18. Crosstalk vs Frequency (V_CC = 3 V)

Figure 7. R_on vs V_COM (V_CC = 1.8 V)

Figure 9. I_ON and I_OFF vs Temperature
(V_CC = 3.6 V)

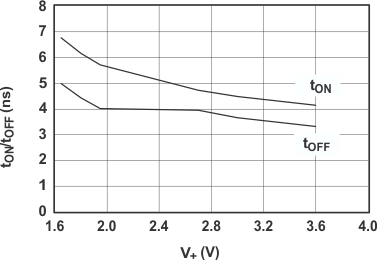

Figure 11. t_ON and t_OFF vs Supply Voltage

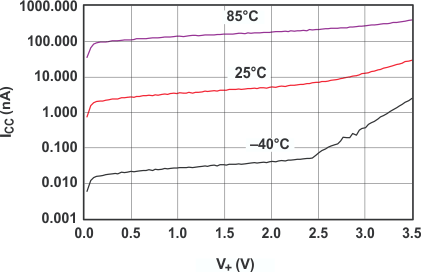

Figure 13. I_CC vs V_CC

Figure 15. OFF Isolation vs Frequency
(V_CC = 3 V)

Figure 17. Total Harmonic Distortion vs Frequency
(R_L = 600 Ω)
