Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

Application Information

The TPSM84A21 is a synchronous series capacitor step down DC-DC power module. It is used to convert a higher DC voltage to a lower DC voltage with a maximum output current of 10 A. The following design procedure can be used to select components for the TPSM84A21. Alternately, the WEBENCH® software may be used to generate complete designs. When generating a design, the WEBENCH software utilizes an iterative design procedure and accesses comprehensive databases of components. Please visit www.ti.com/webench for more details.

Typical Application

The TPSM84A21 includes both input and output capacitors internal to the device, therefore it only requires a voltage setting resistor and possibly a pull-up resistor on the PGOOD pin in most applications. Figure 17 shows a typical TPSM84A21 schematic with only the minimum required components.

TPSM84A21 A21TypAppSch.gif Figure 17. Typical Application Schematic

Design Requirements

For this design example, use the parameters listed in Table 3 and follow the design procedures below.

Table 3. Design Parameters

DESIGN PARAMETER VALUE
Input Voltage VIN 12 V typical
Output Voltage VOUT 1.0 V
Output Current Rating 10 A
Key care-abouts Tight transient response, small footprint, high efficiency, PGOOD signal
Transient Response Requirements ±2% voltage deviation, 5 A load step, 5 A/µs slew rate

Detailed Design Procedure

Setting the Output Voltage

The output voltage of the TPSM84A21 is externally adjustable using a single resistor (RSET). Select the value of RSET from or calculate using Equation 5:

Equation 5. TPSM84A21 equation_1_Rset_cal_SLVSDF8.gif

To set the output voltage to 1.0 V, the calculated value for RSET is 1.03 kΩ. The closest E96 value is 1.02 kΩ.

Input and Output Capacitance

The TPS84A21 requires no external input or output capacitance to operate. Input and output capacitors can be added to improve ripple or transient response. In this design example, in order to meet the ±2% voltage deviation for a 5-A, 5-A/µs load step, 100 µF of output capacitance is required.

Power Good (PGOOD)

Applications requiring voltage rail sequencing can benefit from the PGOOD signal present with the TPSM84A21. The PGOOD pin is an open drain output. When the output voltage is typically between 95% and 105% of the set point, the PGOOD pin pull-down is released and the pin floats, requiring an external pull-up resistor for a high signal. A 10-kΩ pull-up resistor is placed between the PGOOD pin and an external 5V rail.

External VG Voltage

The VG supply rail is used to power the internal gate drivers and other internal supply rails used by the controller. For best efficiency, supply an external 5 V to the VG pin, thereby overriding the internal 4.8 V regulator. Expect a 2-3% efficiency improvement by driving the VG pin with an external 5V.

Application Curves

TPSM84A21 StartUp.gif
VIN = 12 V VOUT = 1.0 V
Figure 18. Start-up Waveforms

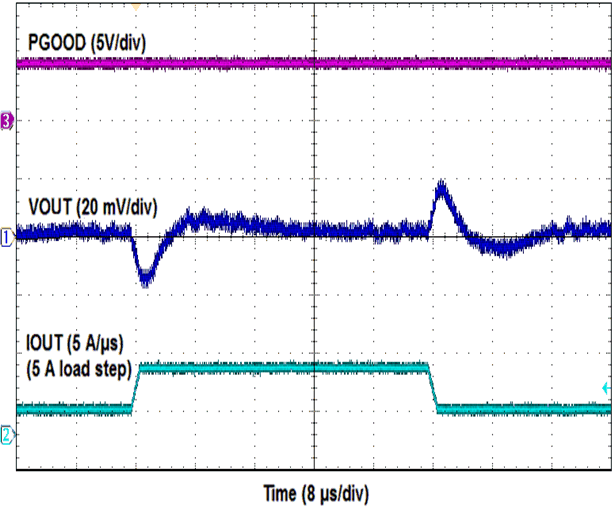

TPSM84A21 A21Trans1V5AApp.gif
VIN = 12 V VOUT = 1.0 V Load Step = 5 A
COUT = 100 µF Slew Rate = 1 A/µs
Figure 19. Application Transient Response
