7.3.3 Drop-Out Voltage

The drop-out voltage of a voltage regulator is the difference between the input voltage and the output voltage that is required to maintain regulation. Figure 16 and Figure 17 show typical drop-out voltage graphs for TPSM84205 at ambient temperatures of 25°C and 85°C. Figure 18 and Figure 19 show typical drop-out voltage graphs for TPSM84212 at ambient temperatures of 25°C and 85°C.

TPSM84203 TPSM84205 TPSM84212 5VDropout25C.gif
1.
VOUT = 5.0 V TA = 25°C
Figure 16. Drop-Out Voltage
TPSM84203 TPSM84205 TPSM84212 12VDropO25C.gif
1.
VOUT = 12 V TA = 25°C
Figure 18. Drop-Out Voltage
TPSM84203 TPSM84205 TPSM84212 5VDropout85C.gif
1.
VOUT = 5.0 V TA = 85°C
Figure 17. Drop-Out Voltage

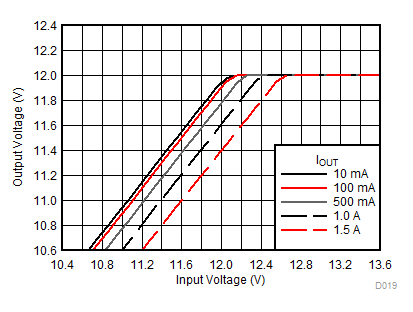

TPSM84203 TPSM84205 TPSM84212 12VDrop85C.gif
1.
VOUT = 12 V TA = 85°C
Figure 19. Drop-Out Voltage
