Typical Characteristics

TPS92638-Q1 D005_SLVSCK5.gif
Figure 1. I(IOUTx) Accuracy vs V(SUPPLY)
TPS92638-Q1 D003_SLVSCK5.gif
V(SUPPLY) = 5 V
Figure 3. I(IOUTx) Accuracy vs Ambient Temperature
TPS92638-Q1 D009_SLVSCK5.gif
V(SUPPLY) = 12 V
Figure 5. I(IOUTx) Current vs Temperature

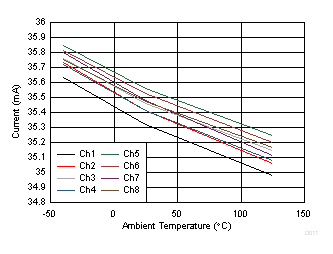

TPS92638-Q1 D011_SLVSCK5.gif
V(SUPPLY) = 40 V
Figure 7. I(IOUTx) Current vs Temperature

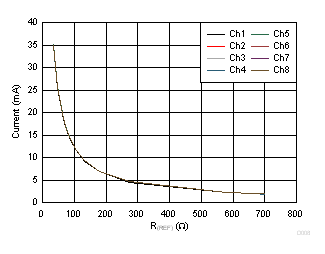

TPS92638-Q1 D008_SLVSCK5.gif
Figure 9. I(IOUTx) Current vs R(REF)

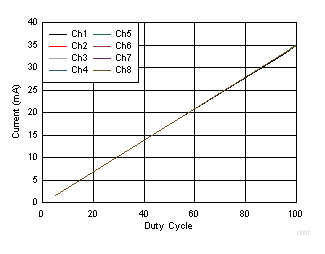

TPS92638-Q1 D007_SLVSCK5.gif
Figure 11. I(IOUTx) Current vs PWM Duty Cycle

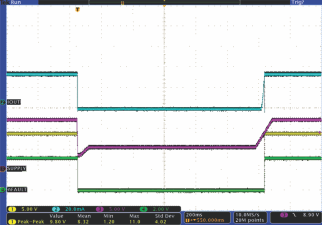

TPS92638-Q1 scope_p27_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: FAULT
Figure 13. Cold Cranking Behavior

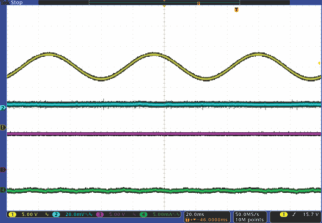

TPS92638-Q1 scope_p29_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 15. Superimposed Alternating Voltage, 12 V–18 V, 15 Hz
TPS92638-Q1 scope_p31_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 17. Superimposed Alternating Voltage, 12 V–18 V, 2 kHz

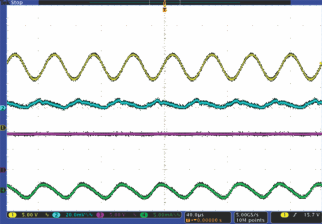

TPS92638-Q1 scope_p33_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 19. Superimposed Alternating Voltage, 12 V–18 V, 20 kHz

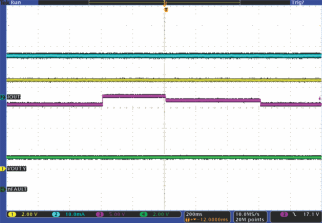

TPS92638-Q1 scope_p35_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: I(FAULT)
Figure 21. Transient Overvoltage (16 V – 18 V – 17 V – 16 V)

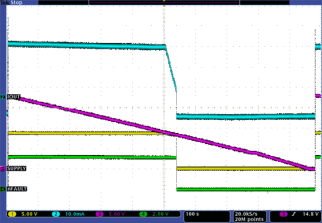

TPS92638-Q1 scope_p37_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: I(FAULT)
Figure 23. Slow Decrease and Quick Increase

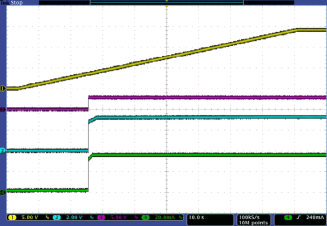

TPS92638-Q1 scope_p39_slvsck5.gif
CH1: V(SUPPLY) CH2: V(FAULT) CH3: V(REF)
CH4: I(IOUT8)
Figure 25. Slow Power Up (V(SUPPLY), V(EN), V(PWMx) Rise Together From 0 V to 14 V by 0.2 V/s)

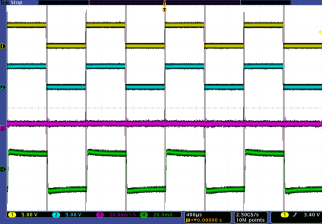

TPS92638-Q1 scope_p41_slvsck5.gif
CH1: V(PWM3) CH2: V(PWM4) CH3: V(REF)
CH4: I(IOUT8) Duty cycle = 50% V(SUPPLY), V(EN) = 14 V
Figure 27. PWM Dimming, Dimming Frequency = 1000 Hz

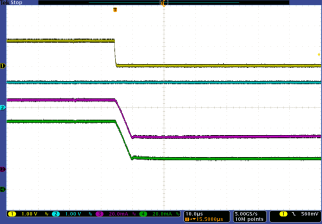

TPS92638-Q1 scope_p43_slvsck5.gif
CH1: V(REFHI) CH2: V(REF) CH3: I(IOUT1)
CH4: I(IOUT8)
Figure 29. Load Transient, I(IOUTx) Decreases From 70 mA to 35 mA
TPS92638-Q1 D002_SLVSCK5.gif
V(SUPPLY) = 12 V
Figure 2. I(IOUTx) Accuracy vs Ambient Temperature

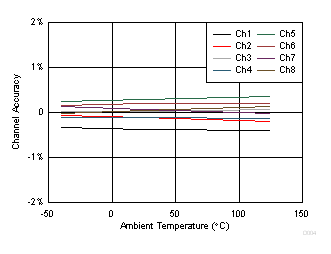

TPS92638-Q1 D004_SLVSCK5.gif
V(SUPPLY) = 40 V
Figure 4. I(IOUTx) Accuracy vs Ambient Temperature
TPS92638-Q1 D010_SLVSCK5.gif
V(SUPPLY) = 5 V
Figure 6. I(IOUTx) Current vs Temperature

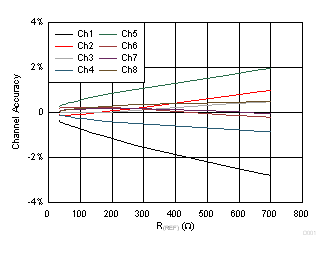

TPS92638-Q1 D001_SLVSCK5.gif
V(SUPPLY) = 12 V TA = 25ºC
Figure 8. I(IOUTx) Channel Accuracy vs R(REF)

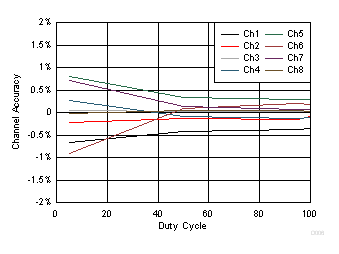

TPS92638-Q1 D006_SLVSCK5.gif
Figure 10. I(IOUTx) Accuracy vs PWM Duty Cycle

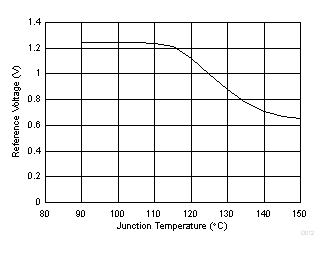

TPS92638-Q1 D012_SLVSCK5.gif
Figure 12. Reference Voltage vs Junction Temperature

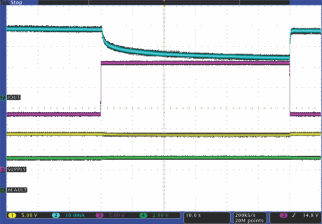

TPS92638-Q1 scope_p28_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: FAULT
Figure 14. Jump Start From 13.5 V to 26 V

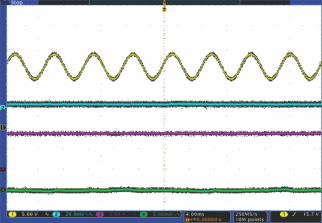

TPS92638-Q1 scope_p30_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 16. Superimposed Alternating Voltage, 12 V–18 V, 200 Hz
TPS92638-Q1 scope_p32_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 18. Superimposed Alternating Voltage, 12 V–18 V, 10 kHz

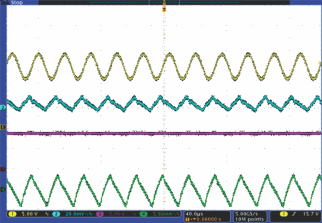

TPS92638-Q1 scope_p34_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(IOUT8)
CH4: I(IOUT8) I(IOUTx) = 35 mA
Figure 20. Superimposed Alternating Voltage, 12 V–18 V, 30 kHz

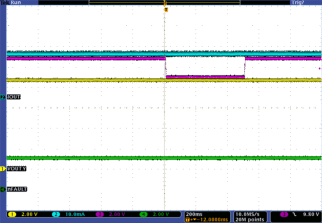

TPS92638-Q1 scope_p36_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: I(FAULT)
Figure 22. Transient Undervoltage (10.8 V – 9 V – 10.8 V)

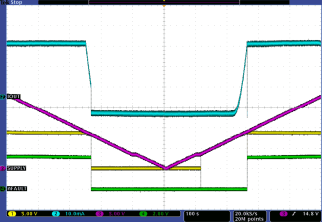

TPS92638-Q1 scope_p38_slvsck5.gif
CH1: V(IOUT1) CH2: I(IOUT1) CH3: V(SUPPLY)
CH4: I(FAULT)
Figure 24. Slow Decrease and Slow Increase

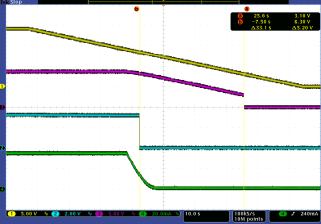

TPS92638-Q1 scope_p40_slvsck5.gif
CH1: V(SUPPLY) CH2: V(FAULT) CH3: V(REF)
CH4: I(IOUT8)
Figure 26. Slow Power Down (V(SUPPLY), V(EN), V(PWMx) Fall Together From 14 V to 0 V by 0.2 V/s)

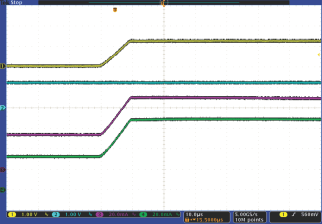

TPS92638-Q1 scope_p42_slvsck5.gif
CH1: V(REFHI) CH2: V(REF) CH3: I(IOUT1)
CH4: I(IOUT8)
Figure 28. Load Transient, I(IOUTx) Increases From 35 mA to 70 mA

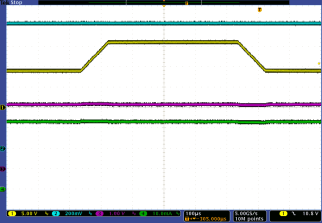

TPS92638-Q1 scope_p44_slvsck5.gif
CH1: V(SUPPLY) CH2: V(REF) CH3: V(FAULT)
I(IOUTx) = 35 mA
Figure 30. Line Transient, V(SUPPLY), V(EN), V(PWMx) Ramp From 9 V to 16 V to 9 V by 0.1 V/µs
