Typical Characteristics: TPS7A8400A

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(nom) + 0.4 V (w hichever is greater), VBIAS = open, VOUT(nom) = 0.8 V, VEN = 1.1 V, CIN = 10 μF, COUT = 47 μF, CNR/SS = 0 nF, no CFF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)

VIN = 1.1 V, VBIAS = 5 V, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF

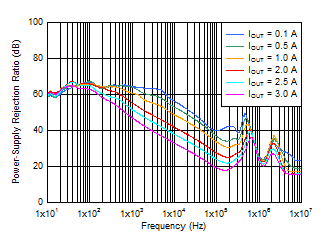

Figure 6-1 PSRR vs Frequency and IOUT
VIN = 1.4 V, IOUT = 1 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF

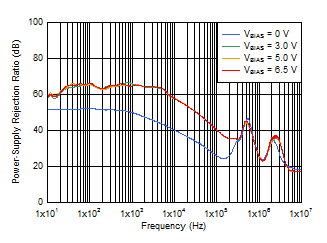

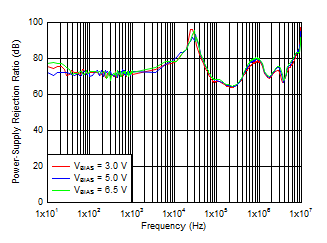

Figure 6-3 PSRR vs Frequency and VBIAS
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF
Figure 6-5 PSRR vs Frequency and VOUT With Bias
VIN = 1.4 V, VBIAS = 5 V, VOUT = 1 V, IOUT = 3 A,
CNR/SS = 10 nF, CFF = 10 nF

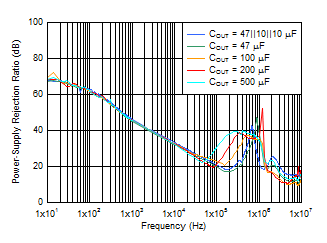

Figure 6-7 PSRR vs Frequency and COUT
VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-9 Output Voltage Noise vs VOUT
IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF,
CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz

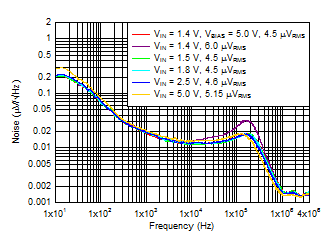

Figure 6-11 Output Noise vs Frequency and VIN
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-13 Output Noise vs Frequency and CFF
VIN = 1.2 V, VOUT = 0.9 V, VBIAS = 5 V, IOUT = 3 A,
COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF
Figure 6-15 Start-Up Waveform vs Time and CNR/SS
IOUT, DC = 100 mA, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = CFF = 10 nF, slew rate = 1 A/μs

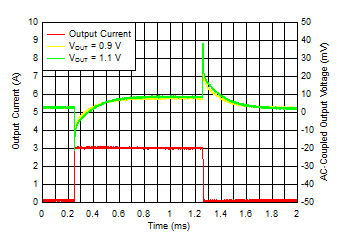

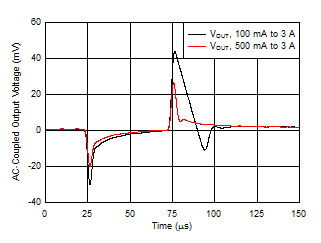

Figure 6-17 Load Transient vs Time and VOUT Without Bias
VIN = 1.2 V, VBIAS = 5 V, COUT = 47 μF || 10 μF || 10 μF,
VOUT = 0.9 V, CNR/SS = CFF = 10 nF, slew rate = 1 A/μs
Figure 6-19 Load Transient vs Time and DC Load
IOUT = 3 A, VBIAS = 6.5 V
Figure 6-21 Dropout Voltage vs VIN With Bias
VIN = 1.1 V, VBIAS = 3 V
Figure 6-23 Dropout Voltage vs IOUT With Bias
IOUT = 100 mA to 3 A
Figure 6-25 Load Regulation vs VOUT
VIN = 3.8 V
Figure 6-27 Load Regulation vs IOUT (3.3-V Output)
VOUT = 0.8 V, IOUT = 5 mA

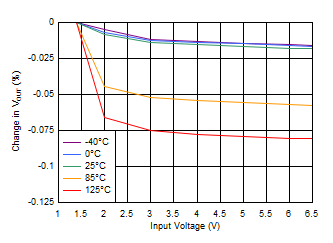

Figure 6-29 Line Regulation vs VIN
IOUT = 5 mA
Figure 6-31 Line Regulation vs VIN (5-V Output)
VIN = 1.1 V, IOUT = 5 mA
Figure 6-33 Bias Pin Current vs Bias Voltage
VIN = 1.1 V
Figure 6-35 Shutdown Current vs Bias Voltage

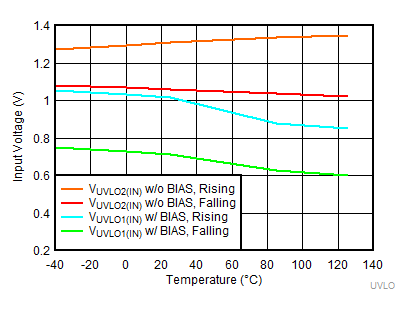

Figure 6-37 VIN UVLO vs Temperature
VIN = 1.4 V, 6.5 V
Figure 6-39 Enable Threshold vs Temperature
VIN = 6.5 V
Figure 6-41 PG Voltage vs PG Current Sink
IOUT = 3 A, VBIAS = 5 V, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF

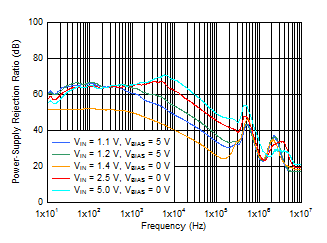

Figure 6-2 PSRR vs Frequency and VIN With Bias
IOUT = 1 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF

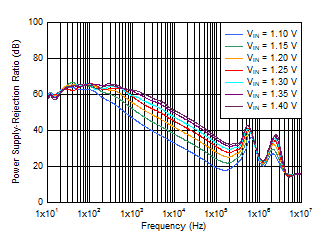

Figure 6-4 PSRR vs Frequency and VIN
IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-6 PSRR vs Frequency and VIN
(VOUT = 3.3 V)
VIN = VOUT + 0.3 V, VOUT = 1 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF
Figure 6-8 VBIAS PSRR vs Frequency
VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz

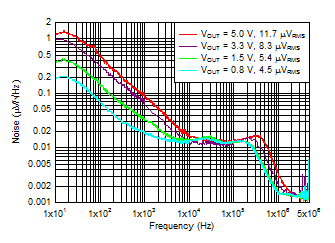

Figure 6-10 Output Noise vs Frequency and VOUT
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-12 Output Noise vs Frequency and CNR/SS
IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz

Figure 6-14 Output Noise at 5-V Output
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT, DC = 100 mA, slew rate = 1 A/μs, CNR/SS = CFF = 10 nF, COUT = 47 μF || 10 μF || 10 μF
Figure 6-16 Load Transient vs Time and VOUT With Bias
VOUT = 5 V, IOUT, DC = 100 mA, IOUT = 100 mA to 3 A,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = CFF = 10 nF

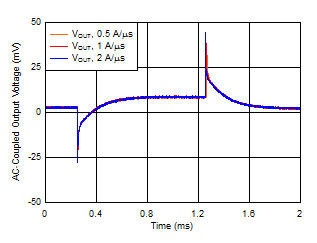

Figure 6-18 Load Transient vs Time and Slew Rate
IOUT = 3 A

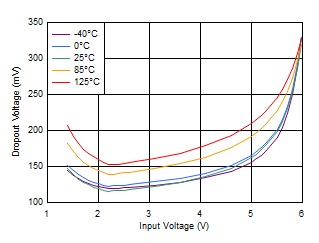

Figure 6-20 Dropout Voltage vs VIN Without Bias
VIN = 1.4 V
Figure 6-22 Dropout Voltage vs IOUT Without Bias
VIN = 5.5 V
Figure 6-24 Dropout Voltage vs IOUT (High VIN)
VIN = 1.4 V

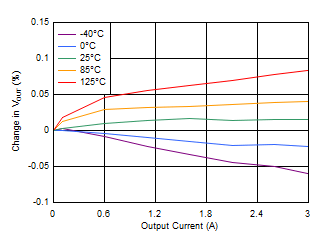

Figure 6-26 Load Regulation vs IOUT
VIN = 5.5 V
Figure 6-28 Load Regulation vs IOUT (5-V Output)
VOUT = 0.8 V, VIN = 1.1 V, IOUT = 5 mA, VBIAS = 5 V
Figure 6-30 Line Regulation With Bias
VBIAS = 0 V, IOUT = 5 mA
Figure 6-32 Ground Pin Current vs VIN
VBIAS = 0 V
Figure 6-34 Shutdown Current vs VIN
VBIAS = 0 V

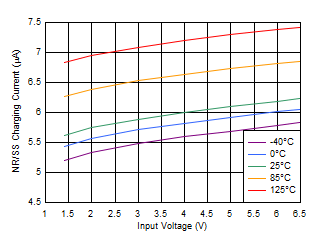

Figure 6-36 INR/SS Current vs VIN
VIN = 1.1 V
Figure 6-38 VBIAS UVLO vs Temperature

Figure 6-40 PG Voltage vs PG Current Sink

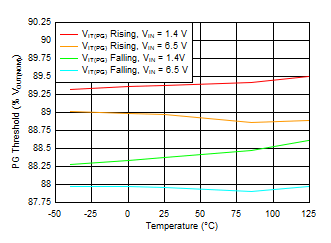

Figure 6-42 PG Threshold vs Temperature
