Typical Characteristics

at operating temperature range TJ = 25°C, VIN = VOUT(NOM) + 0.5 V or 1.5 V (whichever is greater), IOUT = 1 mA, VEN = VIN, and CIN = COUT = 1 μF (unless otherwise noted)
TPS746 D041-SBVS337.gif
VOUT = 3.3 V, IOUT = 1 mA
Figure 1. 3.3-V Line Regulation vs VIN
TPS746 D053-SBVS337.gif
VOUT = 5.5 V, IOUT = 1 mA
Figure 3. 5.5-V Line Regulation vs VIN
TPS746 D006-SBVS337.gif
Figure 5. 0.55-V Dropout Voltage vs IOUT
TPS746 D021-SBVS337.gif
IOUT = 1 A
Figure 7. VDO vs VOUT
TPS746 D002-SBVS337.gif
VEN = 0 V
Figure 9. ISHDN vs VIN
TPS746 D039-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V
Figure 11. 3.3-V Load Regulation vs IOUT
TPS746 D055-SBVS337.gif
VIN = 6 V, VOUT = 5.5 V
Figure 13. 5-V Load Regulation vs IOUT
TPS746 D044-SBVS337.gif
Figure 15. PGLTH and PGHTH vs Temperature
TPS746 D045-SBVS337.gif

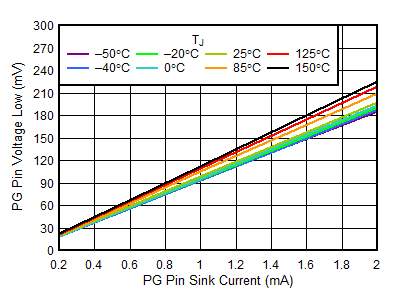

Figure 17. VOL(PG) vs PG Pin Sink Current
TPS746 D059-SBVS337.gif
Figure 19. tPGDH vs Temperature (For TPS746B Only)
TPS746 D000-SBVS337.gif
Figure 21. VEN(HI) and VEN(LO) vs Temperature
TPS746 D010-SBVS337.gif
Figure 23. 3.3-V Foldback Current Limit vs IOUT
TPS746 D012-SBVS337.gif
VOUT = 3.3 V, IOUT = 1 mA, VIN slew rate = 1 V/µs
Figure 25. 3.3-V Line Transient
TPS746 D014-SBVS337.gif
VOUT = 5 V, VIN = 5.5 V, IOUT slew rate = 1 A/µs
Figure 27. 1-mA to 1-A Load Transient (5 V)
TPS746 D016-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 29. VIN Power-Up
TPS746 D022-SBVS337.gif
VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 31. PSRR vs Frequency and VIN
TPS746 D025-SBVS337.gif
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 33. PSRR vs Frequency and VIN
TPS746 D026-SBVS337.gif
IOUT = 500 mA, COUT = 2.2 µF
Figure 35. PSRR vs Frequency
TPS746 D028-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA
Figure 37. PSRR vs Frequency and COUT
TPS746 D031-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF
Figure 39. PSRR vs Frequency and ILOAD
TPS746 D033-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF,
VRMS BW = 10 Hz to 100 kHz
Figure 41. Output Spectral Noise Density
TPS746 D035-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 100 mA, CFF = 0 µF,
VRMS BW = 10 Hz to 100 kHz
Figure 43. Output Spectral Noise Density vs
Frequency and COUT
TPS746 D004-SBVS337.gif
VOUT = 0.55 V, IOUT = 1 mA
Figure 2. 0.55-V Line Regulation vs VIN
TPS746 D038-SBVS337.gif
Figure 4. 3.3-V Dropout Voltage vs IOUT
TPS746 D051-SBVS337.gif
Figure 6. 5.5-V Dropout Voltage vs IOUT
TPS746 D008-SBVS337.gif
Figure 8. IGND vs IOUT
TPS746 D056-SBVS337.gif
VOUT = 3.3 V, IOUT = 0 mA
Figure 10. IQ vs VIN
TPS746 D005-SBVS337.gif
VIN = 2 V, VOUT = 0.55 V
Figure 12. 0.55-V Load Regulation vs IOUT
TPS746 D046-SBVS337.gif
Figure 14. VOUT vs IOUT Pulldown Resistor
TPS746 D009-SBVS337.gif
Figure 16. IIkg(PG) vs Temperature and PG Pin Voltage
TPS746 D058-SBVS337.gif
Figure 18. tPGDH vs Temperature
TPS746 D060-SBVS337.gif
Figure 20. tPGDL vs Temperature
TPS746 D007-SBVS337.gif
VEN = 5.5 V
Figure 22. IEN vs VIN
TPS746 D011-SBVS337.gif
VOUT = 0.55 V, IOUT = 1 mA, VIN slew rate = 1 V/µs
Figure 24. 0.55-V Line Transient
TPS746 D013-SBVS337.gif
VOUT = 0.55 V, VIN = 2 V, IOUT slew rate = 1 A/µs
Figure 26. 1-mA to 1-A Load Transient (0.55 V)
TPS746 D015-SBVS337.gif
VOUT = 3.3 V, VIN = 3.8 V, IOUT slew rate = 1 A/µs
Figure 28. 1-mA to 1-A Load Transient (3.3 V)
TPS746 D018-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 30. Startup With EN
TPS746 D023-SBVS337.gif
VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 32. PSRR vs Frequency and VIN
TPS746 D024-SBVS337.gif
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 34. PSRR vs Frequency and VIN
TPS746 D027-SBVS337.gif
IOUT = 1 A, COUT = 2.2 µF
Figure 36. PSRR vs Frequency
TPS746 D029-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA
Figure 38. PSRR vs Frequency and CFF
TPS746 D032-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, COUT = 4.7 µF,
VRMS BW = 10 Hz to 100 kHz
Figure 40. Output Spectral Noise Density
TPS746 D034-SBVS337.gif
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF,
VRMS BW = 10 Hz to 100 kHz
Figure 42. Output Spectral Noise Density vs
Frequency and CFF
TPS746 D042-SBVS337.gif
IOUT = 500 mA, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz
Figure 44. Output Spectral Noise Density vs Frequency
