Typical Characteristics

Over operating temperature range (TJ = –40°C to 125°C), VBIAS = (VOUT + 1.4 V) or 2.5 V (whichever is greater); VIN = VOUT + 0.5 V, IOUT = 1 mA, VEN = 1.1 V, COUT = 2.2 μF, unless otherwise noted. Typical values are at TJ = 25°C.
TPS720 tc_line_vin_0_bvs100.gif
IOUT = 0 mA
Figure 1. VIN Line Regulation (TPS72013YZU)
TPS720 tc_line_vbias_0_bvs100.gif
IOUT = 0 mA
Figure 3. VBIAS Line Regulation (TPS72013YZU)
TPS720 tc_load_light_bvs100.gif
Figure 5. Load Regulation Under Light Loads (TPS72013YZU)
TPS720 tc_load_vbias_bvs100.gif
Figure 7. Load Regulation With VIN Floating (TPS72013YZU)
TPS720 tc_vdo-iout_bvs100.gif
Figure 9. VIN Dropout Voltage vs Output Current (TPS72013YZU)
TPS720 tc_vout-tmp_bvs100.gif
Figure 11. Output Voltage vs Temperature (TPS72013YZU)
TPS720 tc_ignd-iout_bvs100.gif
Figure 13. Ground Pin Current vs Output Current (TPS72013YZU)
TPS720 tc_ishdn-vbias_bvs100.gif
Figure 15. Shutdown Current vs VBIAS Input Voltage (TPS72013YZU)
TPS720 tc_icl-vin_bvs100.gif
Figure 17. Current Limit vs VIN Input Voltage (TPS72013YZU)
TPS720 tc_psrr-frq_iout_bvs100.gif
Figure 19. VIN Power-Supply Ripple Rejection
vs Frequency (TPS72015YZU)
TPS720 tc_noise-frq_bvs100.gif
Figure 21. Output Spectral Noise Density vs Frequency (TPS72015YZU)
TPS720 tc_inrush_350ma_bvs100.gif
VIN = 1.8 V VOUT = 1.3 V VBIAS = 2.7 V
IOUT = 350 mA
Figure 23. VIN Inrush Current
TPS720 tc_line_resp_vbias_bvs100.gif
VIN = 1.8 V VOUT = 1.3 V VBIAS = 2.7 V to 3.3 V
VBIAS Slew Rate = 600 m/μs IOUT = 350 mA
Figure 25. VBIAS Line Transient Response
TPS720 tc_line_vin_350_bvs100.gif
IOUT = 350 mA
Figure 2. VIN Line Regulation (TPS72013YZU)
TPS720 tc_line_vbias_350_bvs100.gif
IOUT = 350 mA
Figure 4. VBIAS Line Regulation (TPS72013YZU)
TPS720 tc_load_reg_bvs100.gif
Figure 6. Load Regulation (TPS72013YZU)
TPS720 tc_load_tj_bvs100.gif
Figure 8. Load Regulation With VIN Floating (TPS72013YZU)

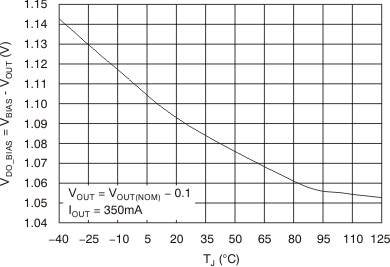

TPS720 tc_vdo-tmp_bvs100.gif
Figure 10. VBIAS Dropout Voltage vs Temperature (TPS72033YZU)
TPS720 tc_ignd-vbias_bvs100.gif
Figure 12. Ground Pin Current vs VBIAS Input Voltage (TPS72013YZU)
TPS720 tc_ignd-tmp_bvs100.gif
Figure 14. Ground Pin Current vs Temperature (TPS72013YZU)
TPS720 tc_icl-vbias_bvs100.gif
Figure 16. Current Limit vs VBIAS Input Voltage (TPS72013YZU)
TPS720 tc_psrr-frq_vin_bvs100.gif
Figure 18. VIN Power-Supply Ripple Rejection vs Frequency (TPS72015YZU)
TPS720 tc_psrr-frq_vbias_bvs100.gif
Figure 20. VBIAS Power-Supply Ripple Rejection vs Frequency (TPS72015YZU)
TPS720 tc_inrush_0ma_bvs100.gif
VIN = 1.8 V VOUT = 1.3 V VBIAS = 2.7 V
IOUT = 0 mA
Figure 22. VIN Inrush Current
TPS720 tc_line_resp_vin_bvs100.gif
VIN = 1.6 to 2 V VOUT = 1.3 V VBIAS = 2.7 V
VIN Slew Rate = 1 V/μs IOUT = 350 mA
Figure 24. VIN Line Transient Response
TPS720 tc_load_resp_bvs100.gif
VIN = 1.8 V VOUT = 1.3 V VBIAS = 2.7 V
tRISE = 1 μs
Figure 26. Load Transient Response
