Application Curves

Table 8-5 Components for Application Characteristic Curves for VOUT = 3.3 V
REFERENCE(1) DESCRIPTION(2) PART NUMBER MANUFACTURER
U1 400-mA ultra low Iq Buck-Boost Converter (2.5 mm x 2.5 mm QFN) TPS63900DSK Texas Instruments
L1 2.2 µH, 2.5 mm x 2 mm x 1.2 mm, 3.3 A, 82 mΩ DFE252012F-2R2M Murata
C1 10 µF, 0603, Ceramic Capacitor, ±20%, 6.3 V GRM188R60J106ME47 Murata
C2 22 µF, 0603, Ceramic Capacitor, ±20%, 6.3 V GRM187R60J226ME15 Murata
CFG1 36.5 kΩ, 0603 Resistor, 1%, 100 mW Standard Standard
CFG2 0 Ω, 0603 Resistor, 1%, 100 mW Standard Standard
CFG3 0 Ω, 0603 Resistor, 1%, 100 mW Standard Standard
For other output voltages, refer to Table 8-1 for resistor values.
Table 8-6 Typical Characteristics Curves
PARAMETER CONDITIONS FIGURE
Output Current Capability
Typical Output Current Capability versus Input Voltage VO = 1.8 V to 5.0 V Figure 8-2
Switching Frequency
Typical Burst Switching Frequency versus Output Current VI = 3.3 V, VO = 1.8 V to 5.0 V Figure 8-3
Typical Burst Switching Frequency versus Output Current VI = 2.0 V, VO = 1.8 V to 5.0 V Figure 8-4
Typical Burst Switching Frequency versus Output Current VI = 5.2 V, VO = 1.8 V to 5.0 V Figure 8-5
Efficiency
Efficiency versus Output Current VI = 1.8 V to 5.5 V, VO = 1.8 V Figure 8-6
Efficiency versus Output Current VI = 1.8 V to 5.5 V, VO = 3.3 V Figure 8-7
Efficiency versus Output Current VI = 1.8 V to 5.5 V, VO = 5.0 V Figure 8-8
Efficiency versus Input Voltage IO = 1 μA to 400 mA, VO = 3.3 V Figure 8-9
Switching Waveforms
Switching Waveforms, Boost Operation VI = 1.8 V, VO = 3.3 V Figure 8-10
Switching Waveforms, Boost Operation VI = 2.8 V, VO = 3.3 V Figure 8-11
Switching Waveforms, Buck-Boost Operation VI = 3.3 V, VO = 3.3 V Figure 8-12
Switching Waveforms, Buck Operation VI = 4.0 V, VO = 3.3 V Figure 8-13
Output Voltage Ripple
Output Voltage Ripple VI = 2.0 V, VO = 1.8 V to 5.0 V Figure 8-14
Output Voltage Ripple VI = 3.3 V, VO = 1.8 V to 5.0 V Figure 8-15
Output Voltage Ripple VI = 5.2 V, VO = 1.8 V to 5.0 V Figure 8-16
Output Voltage Ripple over Temperature VI = 3.3 V, VO = 3.6 V Figure 8-17
Regulation Accuracy
Load Regulation VO = 3.3 V Figure 8-18
Line Regulation VI = 1.8 V to 5.0 V, Load = 1 mA Figure 8-19
Transient Performance
Line Transient, Light Load VI = 2.5 V to 4.2 V, VO = 3.3 V, Load = 1 mA Figure 8-20
Line Transient, High Load VI = 2.5 V to 4.2 V, VO = 3.3 V, Load = 100 mA Figure 8-21
Load Transient, 100 mA Step VI = 1.8 V, VO = 3.3 V, Load = 0 mA to 100 mA Figure 8-22
Load Transient, 100 mA Step VI = 3.3 V, VO = 3.3 V, Load = 0 mA to 100 mA Figure 8-23
Load Transient, 100 mA Step VI = 1.8 V, VO = 3.3 V, Load = 0 mA to 100 mA Figure 8-24
Load Transient, 300 mA Step VI = 3.3 V, VO = 1.8 V, Load = 0 mA to 300 mA Figure 8-25
Load Transient, 300 mA Step VI = 3.3 V, VO = 3.3 V, Load = 0 mA to 300 mA Figure 8-26
Load Transient, 300 mA Step VI = 5.5 V, VO = 3.3 V, Load = 0 mA to 300 mA Figure 8-27
Start-up
Start-up Behavior from Rising Enable VI = 3.3 V, VO = 3.3 V, Load = 100 mA Figure 8-28
Start-up Behavior from Rising Enable VI = 1.8 V, VO = 1.8 V, Load = 10 μA Figure 8-29
Start-up Behavior from Rising Enable VI = 1.8 V, VO = 5.0 V, Load = 10 μA Figure 8-30
Start-up Behavior from Rising Enable VI = 1.8 V, VO = 5.0 V, Load = 1000 μF Figure 8-31
ICL (Input Current Limit)
Start-up with 1 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-32
Start-up with 2.5 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-33
Start-up with 5 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-34
Start-up with 10 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-35
Start-up with 25 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-36
Start-up with 50 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-37
Start-up with 100 mA ICL VI = 3.3 V, VO = 3.3 V, CO = 300 μF Figure 8-38
Short Circuit Behavior
Short Circuit Behavior VI = 3.3 V, VO = 1.8 V Figure 8-39
Short Circuit Behavior VI = 3.3 V, VO = 3.3 V Figure 8-40
Short Circuit Behavior VI = 3.3 V, VO = 5.0 V Figure 8-41
DVS (Digital Voltage Scaling)
DVS Behavior at Light Load VI = 3.3 V, VO(1) = 2.2 V, VO(2) = 3.6 V, Load = 1 kΩ Figure 8-42
DVS Behavior at High Load VI = 3.3 V, VO(1) = 2.2 V, VO(2) = 3.6 V, Load = 30 Ω Figure 8-43
TA = 25°C

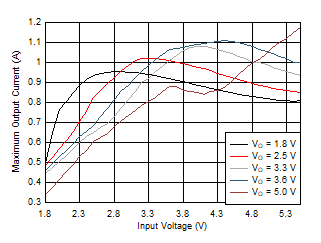

Figure 8-2 Typical Output Current Capability versus Input Voltage
VI = 2.0 V TA = 25°C
Figure 8-4 Typical Burst Switching Frequency versus Output Current
VO = 1.8 V TA = 25°C

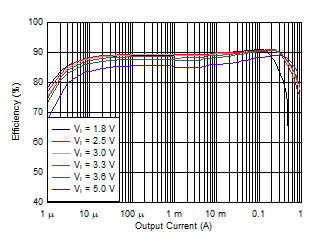

Figure 8-6 Efficiency versus Output Current
VO = 5.0 V TA = 25°C
Figure 8-8 Efficiency versus Output Current
VI = 1.8 V, VO = 3.3 V No load

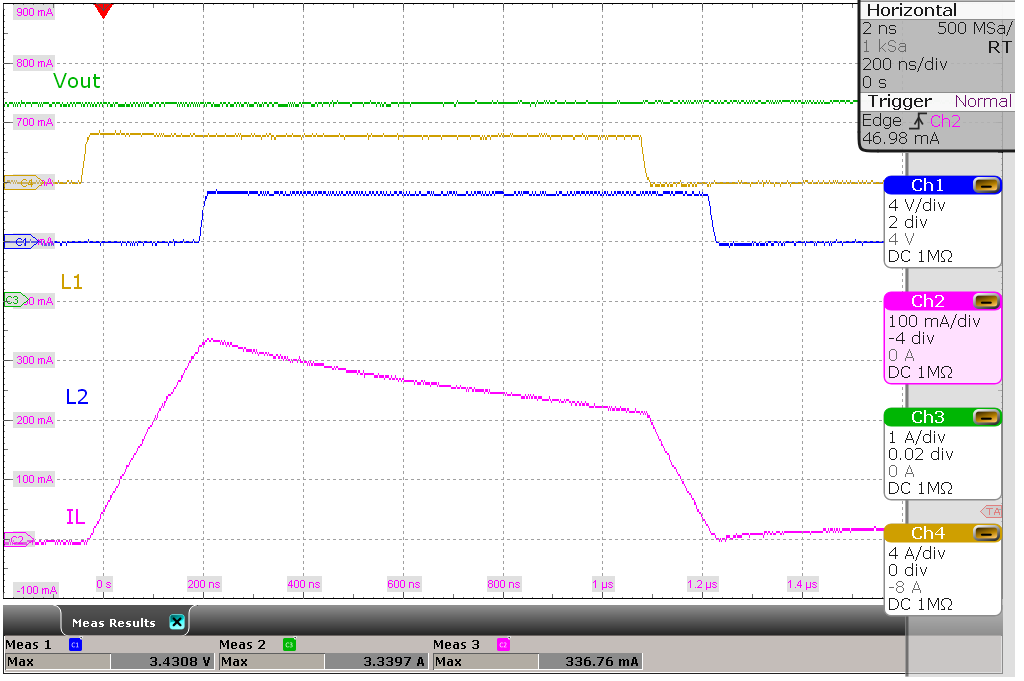

Figure 8-10 Switching Waveforms, Boost Operation
VI = 3.3 V, VO = 3.3 V No load
Figure 8-12 Switching Waveforms, Buck-Boost Operation
VI = 2.0 V TA = 25°C

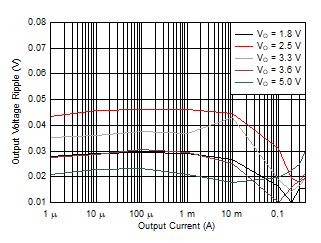

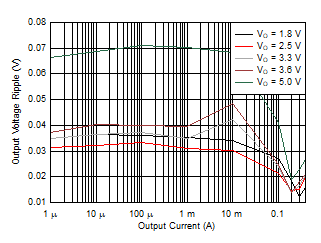

Figure 8-14 Output Voltage Ripple
VI = 5.2 V TA = 25°C
Figure 8-16 Output Voltage Ripple
VO = 3.3 V TA = 25°C

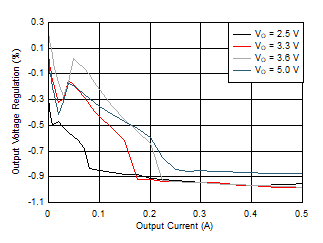

Figure 8-18 Load Regulation
VI = 2.5 V to 4.2 V, VO = 3.3V Load = 1 mA

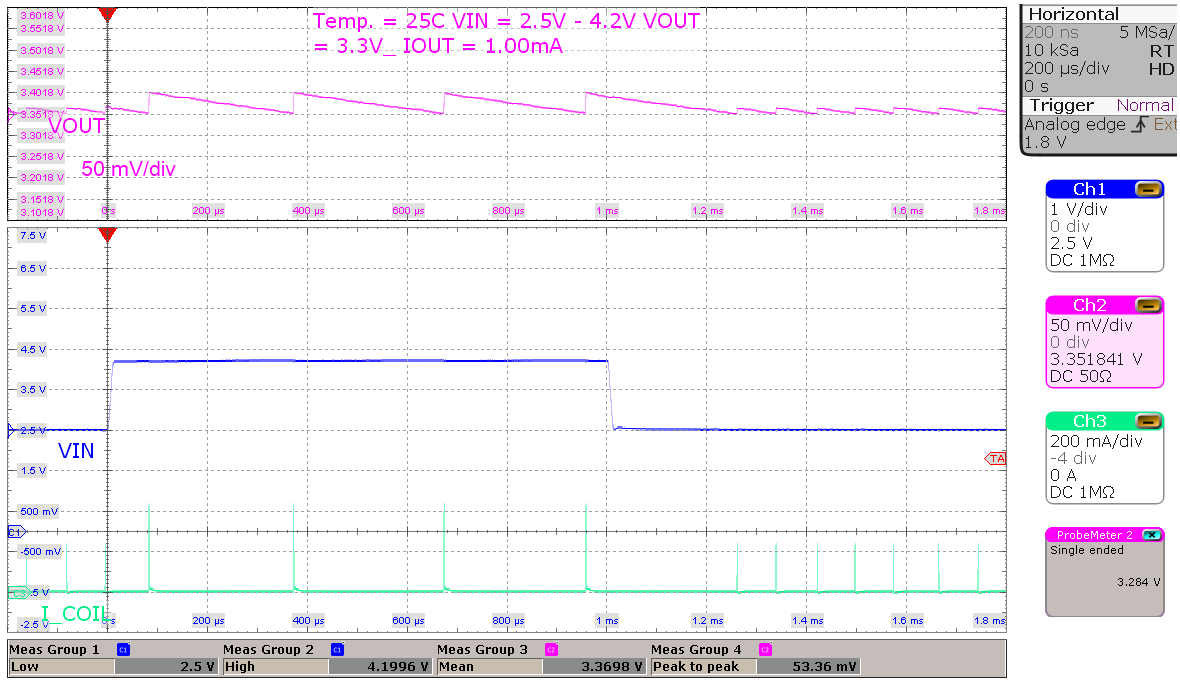

Figure 8-20 Line Transient, Light Load
VI = 1.8 V, VO = 3.3 V Load = 0 mA to 100 mA, tr/tf = 1 μs
Figure 8-22 Load Transient, 100 mA Step
VI = 3.3 V, VO = 3.3 V Load = 0 mA to 100 mA, tr/tf = 1 μs
Figure 8-24 Load Transient, 100 mA Step
VI = 3.3 V, VO = 3.3 V Load = 0 mA to 300 mA, tr/tf = 1 μs
Figure 8-26 Load Transient, 300 mA Step


VI = 3.3 V, VO = 3.3 V 100-mA resistive load

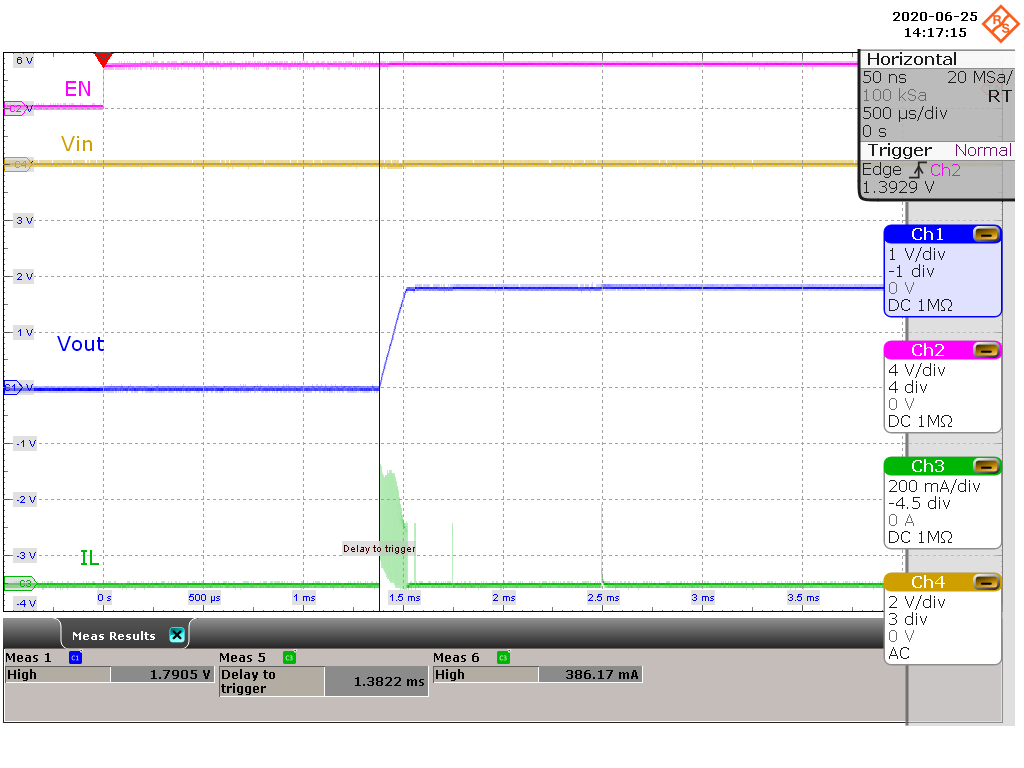

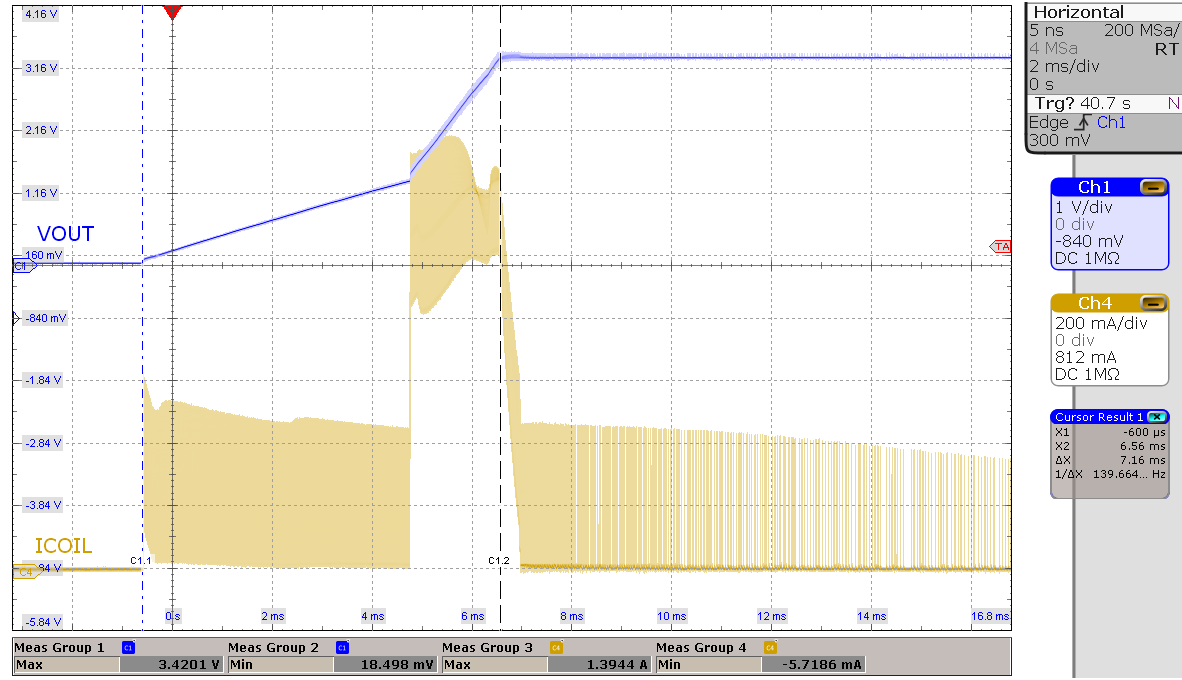

Figure 8-28 Start-up Behavior from Rising Enable
VI = 1.8 V, VO = 5.0 V 10-μA resistive load
Figure 8-30 Start-up Behavior from Rising Enable
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF

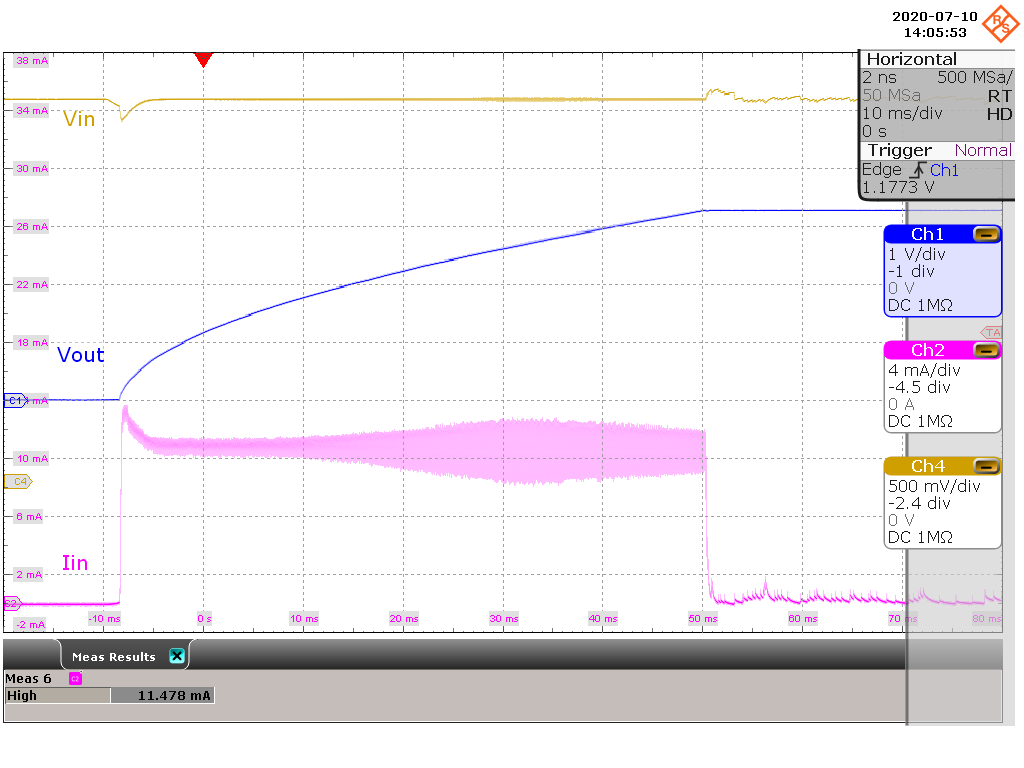

Figure 8-32 Start-up with 1-mA ICL
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-34 Start-up with 5-mA ICL
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-36 Start-up with 25-mA ICL
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-38 Start-up with 100-mA ICL
VI = 3.3 V, VO = 3.3 V TA = 25°C
Figure 8-40 Short Circuit Behavior

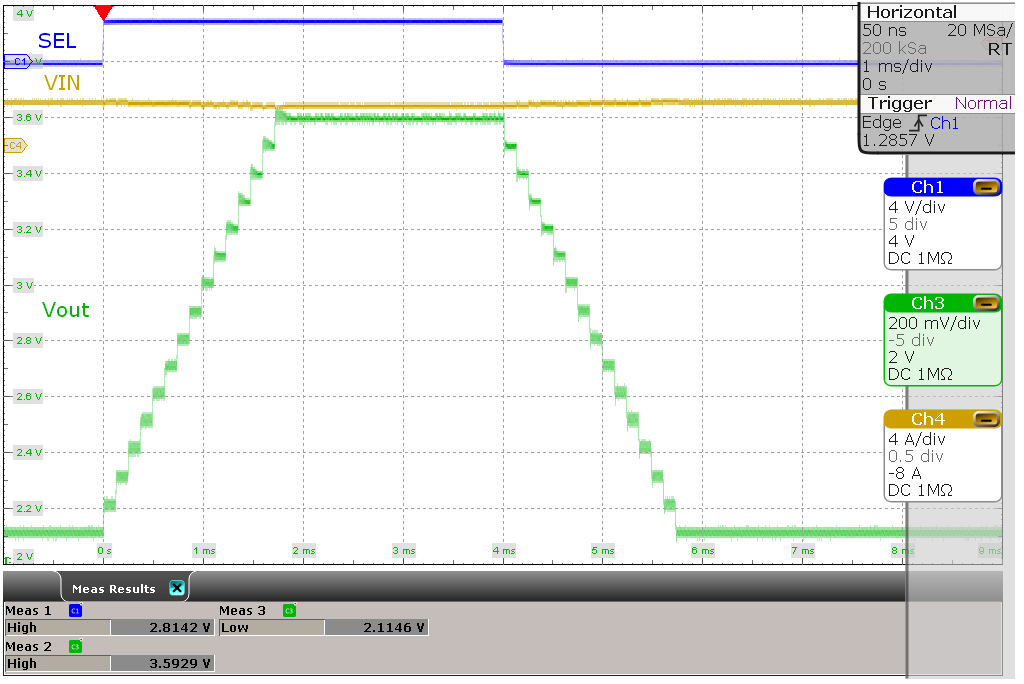

VI = 3.3 V, VO(1) = 2.2 V, VO(2) = 3.6 V 1-kΩ resistive load
Figure 8-42 DVS Behavior at Light Load
VI = 3.3 V TA = 25°C

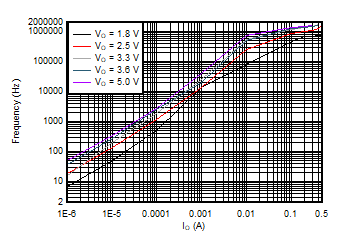

Figure 8-3 Typical Burst Switching Frequency versus Output Current
VI = 5.2 V TA = 25°C
Figure 8-5 Typical Burst Switching Frequency versus Output Current
VO = 3.3 V TA = 25°C
Figure 8-7 Efficiency versus Output Current
VO = 3.3 V TA = 25°C

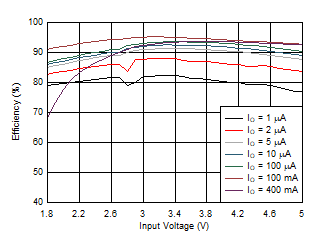

Figure 8-9 Efficiency versus Input Voltage
VI = 2.8 V, VO = 3.3 V No load

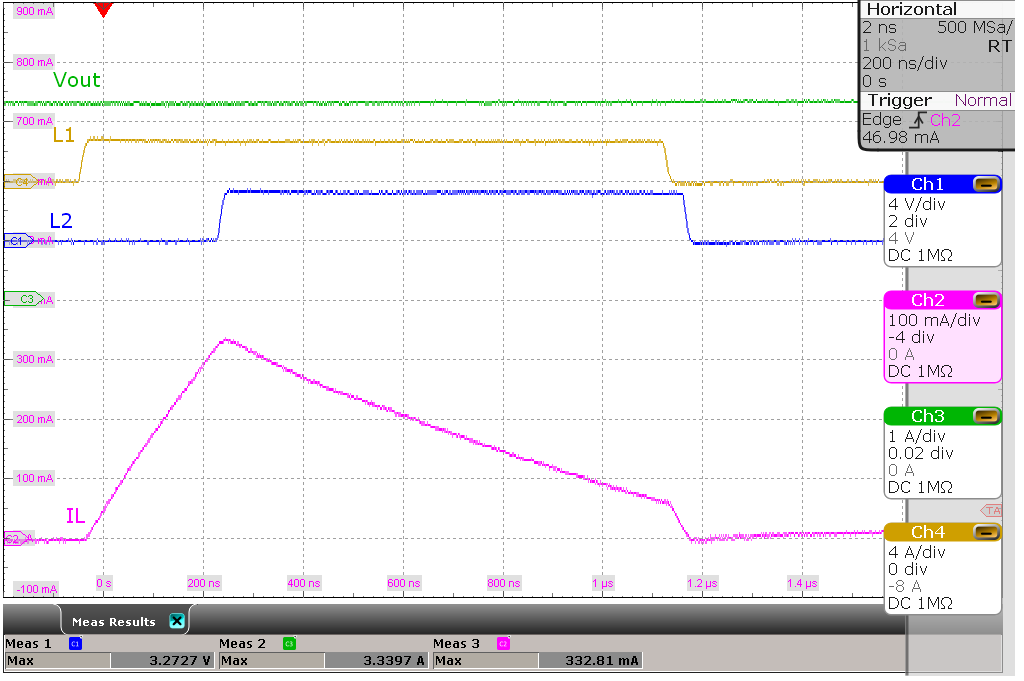

Figure 8-11 Switching Waveforms, Boost Operation
VI = 4.0 V, VO = 3.3 V No load
Figure 8-13 Switching Waveforms, Buck Operation
VI = 3.3 V TA = 25°C

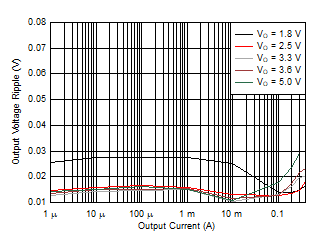

Figure 8-15 Output Voltage Ripple

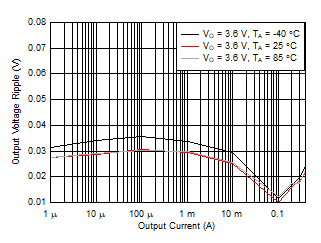

VI = 3.3 V, VO = 3.6 V
Figure 8-17 Output Voltage Ripple over Temperature
VI = 1.8 V to 5.0 V Load = 1 mA, TA = 25°C

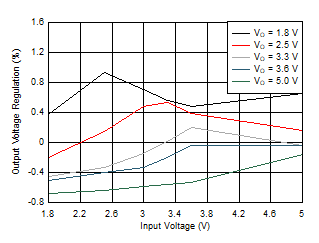

Figure 8-19 Line Regulation

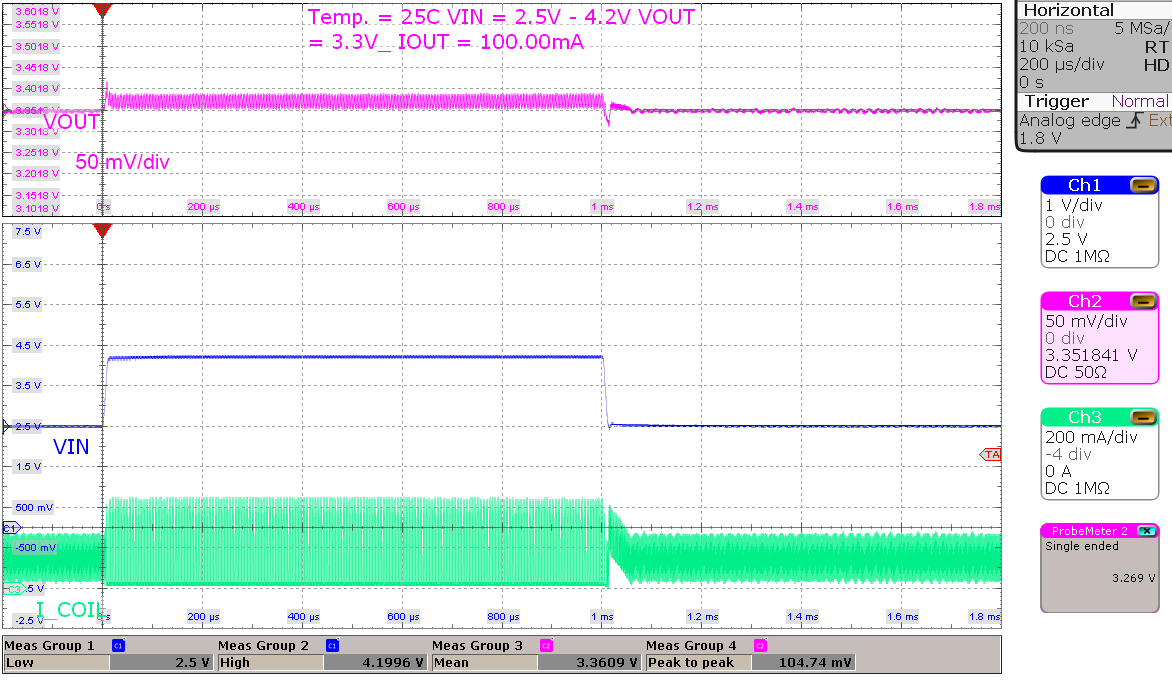

VI = 2.5 V to 4.2 V, VO = 3.3 V Load = 100 mA
Figure 8-21 Line Transient, High Load

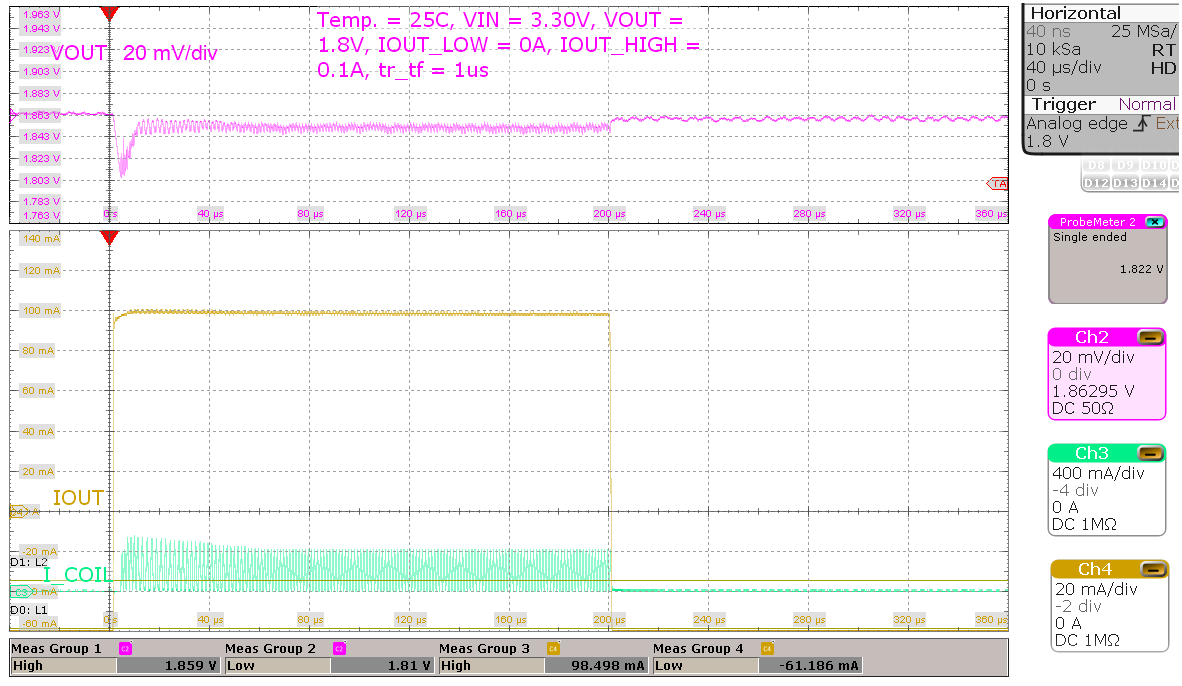

VI = 3.3 V, VO = 1.8 V Load = 0 mA to 100 mA, tr/tf = 1 μs
Figure 8-23 Load Transient, 100 mA Step
VI = 3.3 V, VO = 1.8 V Load = 0 mA to 300 mA, tr/tf = 1 μs
Figure 8-25 Load Transient, 300 mA Step
VI = 5.5 V, VO = 3.3 V Load = 0 mA to 300 mA, tr/tf = 1 μs
Figure 8-27 Load Transient, 300 mA Step
VI = 1.8 V, VO = 1.8 V 10-μA resistive load
Figure 8-29 Start-up Behavior from Rising Enable
VI = 3.3 V, VO = 3.3 V 1000-μF capacitive load
Figure 8-31 Start-up Behavior from Rising Enable
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-33 Start-up with 2.5-mA ICL
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-35 Start-up with 10-mA ICL
VI = 3.3 V, VO = 3.3 V CI = 32 μF, CO = 300 μF
Figure 8-37 Start-up with 50-mA ICL


VI = 3.3 V, VO = 1.8 V TA = 25°C
Figure 8-39 Short Circuit Behavior
VI = 3.3 V, VO = 5.0 V TA = 25°C
Figure 8-41 Short Circuit Behavior
VI = 3.3 V, VO(1) = 2.2 V, VO(2) = 3.6 V 30-Ω resistive load
Figure 8-43 DVS Behavior at High Load
