Typical Characteristics

VIN = 3.6 V, VOUT = 5 V, TJ = 25°C, unless otherwise noted
VIN = 3.6 V, VOUT = 5 V, TJ = 25°C, unless otherwise notedGUID-1D58C84F-F543-4488-9A7F-38B34CE3DB37-low.gif
VIN = 1.8 V, 3 V, 3.6 V, 4.2 V; VOUT = 5 V
Figure 6-1 Load Efficiency With Different Input in Auto PFM. VIN = 3.6 V, VOUT = 5 V, TJ = 25°C, unless otherwise noted
VIN = 1.8 V, 3 V, 3.6 V, 4.2 V; VOUT = 5 V
Figure 6-3 Load Efficiency With Different Input in Forced PWM
VIN = 1.8 V, 3 V, 3.6 V, 4.2 V; VOUT = 5 V
Figure 6-5 Load Regulation in Auto PFM
VIN = 5 V; VOUT = 0.5 V to 4 V

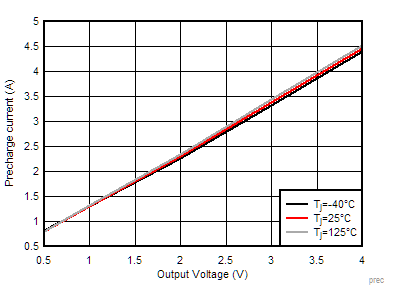

Figure 6-7 Pre-charge Current vs Output Voltage
VIN = 1.8 V, 3.6 V 4.5 V; VOUT = 5 V, TJ = –40°C to +85°C, No switching

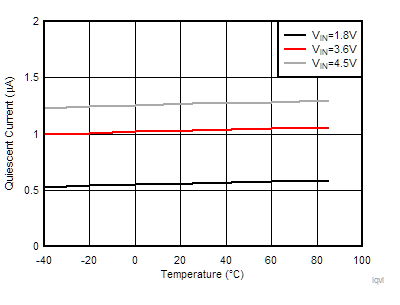

Figure 6-9 Quiescent Current into VIN vs Temperature
VIN = VSW = 1.8 V, 3.6 V, 4.5 V, 5 V; TJ = –40°C to +85°C

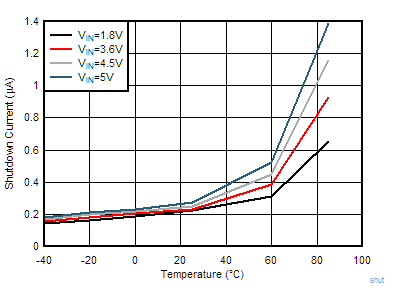

Figure 6-11 Shutdown Current vs Temperature
VIN = 1.8 V, 2.4 V, 3.6 V, 4.5 V; VOUT = 5 V; TJ = –40°C to +125°C
Figure 6-13 EN Rising Threshold vs Temperature
VIN = 1.8 V; VOUT = 3.3 V, 3.8 V, 4 V, 5 V

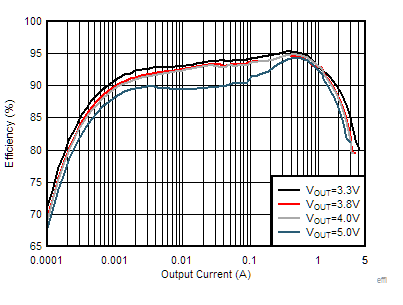

Figure 6-2 Load Efficiency With Different Output in Auto PFM
VIN = 1.8 V; VOUT = 3.3 V, 3.8 V, 4 V, 5 V

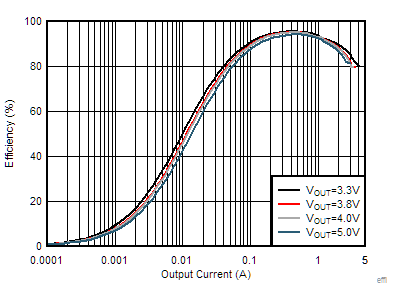

Figure 6-4 Load Efficiency With Different Output in Forced PWM
VIN = 1.8 V, 3 V, 3.6 V, 4.2 V; VOUT = 5 V
Figure 6-6 Load Regulation in Forced PWM
VIN = 3.6 V; VOUT = 5 V, TJ = –40°C to +125°C
Figure 6-8 Reference Voltage vs Temperature
VIN = 1.8 V; VOUT = 2.2 V, 3.6 V, 5 V, TJ = –40°C to +85°C, No switching
Figure 6-10 Quiescent Current into VOUT vs Temperature
VIN = 1.8 V to 4.5 V; VOUT = 5 V

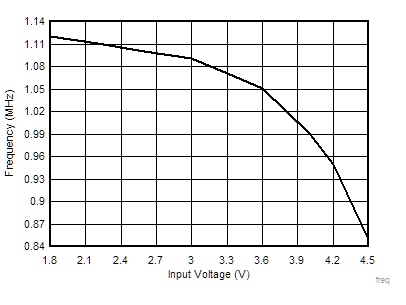

Figure 6-12 Switching Frequency vs Input Voltage
VIN = 1.8 V, 2.4 V, 3.6 V, 4.5 V; VOUT = 5 V; TJ = –40°C to +125°C

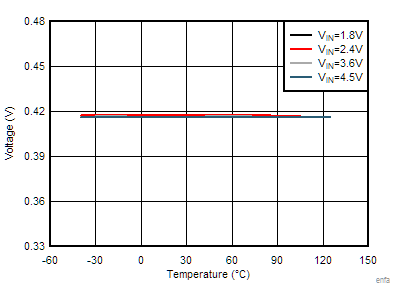

Figure 6-14 EN Falling Threshold vs Temperature
