7.4.15 Small-Signal Model for Frequency Compensation

The TPS57112C-Q1 device uses a transconductance amplifier for the error amplifier and readily supports two of the commonly used frequency-compensation circuits. Figure 33 shows the compensation circuits. The most likely implementation of Type 2B circuits is in high-bandwidth power-supply designs using low-ESR output capacitors. Type 2A includes one additional high-frequency pole to attenuate high-frequency noise.

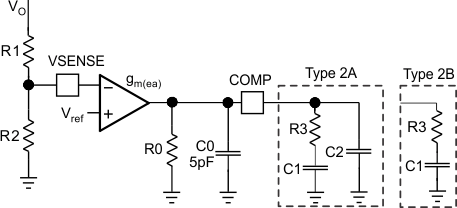

TPS57112C-Q1 f_compen_SLVSAH5.gifFigure 33. Types of Frequency Compensation

The design guidelines for TPS57112C-Q1 loop compensation are as follows:

  1. Calculate the modulator pole, f(p,mod), and the ESR zero, f(z,mod), using Equation 14 and Equation 15. Derating the output capacitor (C(OUT)) may be necessary if the output voltage is a high percentage of the capacitor rating. Use the capacitor manufacturer information to derate the capacitor value. Use Equation 16 and Equation 17 to estimate a starting point for the crossover frequency, f(c). Equation 16 is the geometric mean of the modulator pole and the ESR zero, and Equation 17 is the mean of modulator pole and the switching frequency. Use the lower value of Equation 16 or Equation 17 as the maximum crossover frequency.
    2. Equation 14. TPS57112C-Q1 comp_eq1_SLVSAH5.gif
    Equation 15. TPS57112C-Q1 comp_eq2_SLVSAH5.gif
    Equation 16. TPS57112C-Q1 comp_eq3_SLVSAH5.gif
    Equation 17. TPS57112C-Q1 comp_eq4_SLVSAH5.gif
  2. Use Equation 18 to calculate the value of R3.
    3. Equation 18. TPS57112C-Q1 eq09_r3_SLVSAH5.gif

    where

    • gm(ea) is the amplifier gain (245 μS)
    • gm(ps) is the power-stage gain (14 S)
  3. Place a compensation zero at the dominant pole TPS57112C-Q1 eq07_fp_SLVSAH5.gif
  4. Use Equation 19 to calculate the value of C1.
    5. Equation 19. TPS57112C-Q1 eq10_c1_SLVSAH5.gif
  5. The use of C2 is optional. If using C2 is necessary, use it to cancel the zero from the ESR of C(OUT).
    6. Equation 20. TPS57112C-Q1 eq11_c2_SLVSAH5.gif
