Specifications

Absolute Maximum Ratings

TJ = -40°C to 150°C (unless otherwise noted) (1)
MIN MAX UNIT
Input voltage range VIN, EN –0.3 19 V
VBST –0.3 25 V
VBST (10 ns transient) –0.3 27.5 V
VBST (vs SW) –0.3 6.5 V
VFB, PG –0.3 6.5 V
SS –0.3 5.5 V
SW –2 19 V
SW (10 ns transient) –3.5 21 V
Operating junction temperature, TJ –40 150 °C
Storage temperature, Tstg –55 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

TJ = –40°C to 150°C (unless otherwise noted)
MIN MAX UNIT
VIN Supply input voltage range 4.5 17 V
VI Input voltage range VBST –0.1 23 V
VBST (10 ns transient) –0.1 26
VBST(vs SW) –0.1 6
EN –0.1 17
VFB, PG –0.1 5.5
SS –0.1 5
SW –1.8 17
SW (10 ns transient) –3.5 20
TA Operating free-air temperature –40 85 °C

Thermal Information

THERMAL METRIC(1) TPS562219A TPS563219A UNIT
DDF (SOT)
8 PINS
RθJA Junction-to-ambient thermal resistance 106.1 87.0 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 49.1 41.6 °C/W
RθJB Junction-to-board thermal resistance 10.9 14.6 °C/W
ψJT Junction-to-top characterization parameter 8.6 4.7 °C/W
ψJB Junction-to-board characterization parameter 10.8 14.6 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

TJ = –40°C to 150°C, VIN = 12 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY CURRENT
IVIN Operating – non-switching supply current VIN current, TA = 25°C, EN = 5 V, VFB = 0.8 V 650 900 µA
IVINSDN Shutdown supply current VIN current, TA = 25°C, EN = 0 V 3 10 µA
LOGIC THRESHOLD
VENH EN high-level input voltage EN 1.6 V
VENL EN low-level input voltage EN 0.6 V
REN EN pin resistance to GND VEN = 12 V 225 450 900
VFB VOLTAGE AND DISCHARGE RESISTANCE
VFBTH VFB threshold voltage TA = 25°C, VO = 1.05 V 757 765 773 mV
TA = 0°C to 85°C, VO = 1.05 V(1) 753 777
TA = -40°C to 85°C, VO = 1.05 V(1) 751 779
IVFB VFB input current VFB = 0.8V, TA = 25°C 0 ±0.1 µA
MOSFET
RDS(on)h High side switch resistance TA = 25°C, VBST – SW = 5.5 V, TPS562219A 133
TA = 25°C, VBST – SW = 5.5 V, TPS563219A 68
RDS(on)l Low side switch resistance TA = 25°C, TPS562219A 80
TA = 25°C, TPS563219A 39
CURRENT LIMIT
IOCL Current limit(1) DC current, VOUT = 1.05 V, L1 = 2.2 µH, TPS562219A 2.5 3.2 4.3 A
DC current, VOUT = 1.05 V, L1 = 1.5 µH, TPS563219A 3.5 4.2 5.3
THERMAL SHUTDOWN
TSDN Thermal shutdown threshold(1) Shutdown temperature 155 °C
Hysteresis 35
SOFT START
ISS SS charge current VSS = 1.2 V 4.2 6 7.8 µA
POWER GOOD
VTHPG PG threshold VFB rising (Good) 85% 90% 95%
VFB falling (Fault) 85%
IPG PG sink current PG = 0.5 V 0.5 1 mA
OUTPUT UNDERVOLTAGE AND OVERVOLTAGE PROTECTION
VOVP Output OVP threshold OVP Detect 125%xVfbth
VUVP Output UVP threshold Hiccup detect 65%xVfbth
tHiccupOn Hiccup Power On Time 1 cycle
tHiccupOff Hiccup Power Off Time 7
UVLO
UVLO UVLO threshold Wake up VIN voltage 3.45 3.75 4.05 V
Hysteresis VIN voltage 0.13 0.32 0.55
Not production tested.

Timing Requirements

MIN TYP MAX UNIT
ON-TIME TIMER CONTROL
tON On time VIN = 12 V, VO = 1.05 V 150 ns
tOFF(MIN) Minimum off time TA = 25°C, VFB = 0.5 V 260 310 ns

Typical Characteristics

TPS562219A Characteristics

VIN = 12V (unless otherwise noted)

TPS562219A TPS563219A C011_SLVSCM7.png

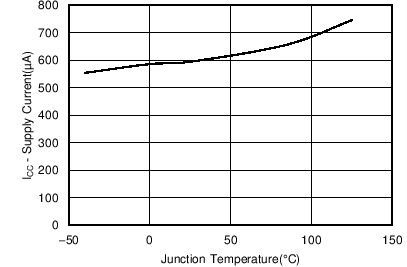

Figure 1. Supply Current vs Junction Temperature
TPS562219A TPS563219A C013_SLVSCM7.png
Figure 3. VFB Voltage vs Junction Temperature
TPS562219A TPS563219A C015_SLVSCM7.png
Figure 5. Efficiency vs Output Current
TPS562219A TPS563219A C017_SLVSCM7.png

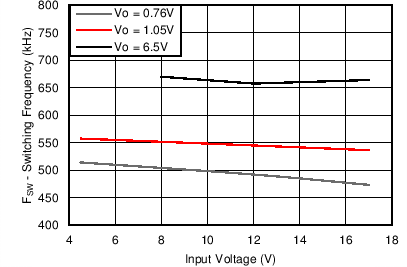

Figure 7. Switching Frequency vs Input Voltage
TPS562219A TPS563219A C012_SLVSCM7.png

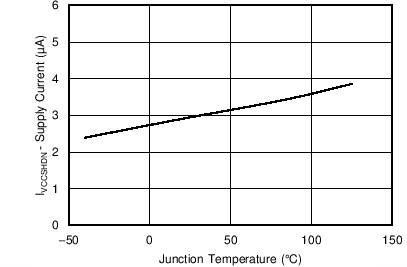

Figure 2. VIN Shutdown Current vs Junction Temperature
TPS562219A TPS563219A C014_SLVSCM7.png
Figure 4. EN Current vs EN Voltage
TPS562219A TPS563219A C016_SLVSCM7.png

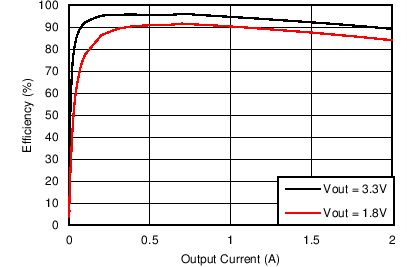

Figure 6. Efficiency vs Output Current (VI= 5V)
TPS562219A TPS563219A C018_SLVSCM7.png

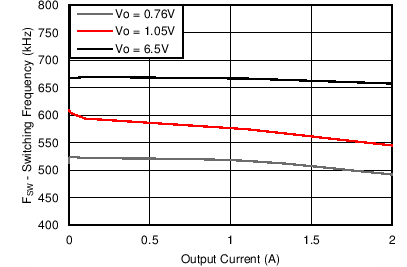

Figure 8. Switching Frequency vs Output Current

TPS563219A Characteristics

TPS562219A TPS563219A C019_SLVSCM7.png

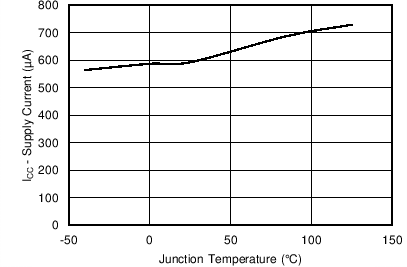

Figure 9. Supply Current vs Junction Temperature
TPS562219A TPS563219A C021_SLVSCM7.png

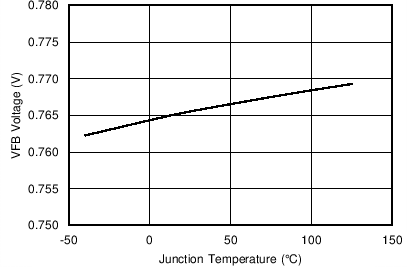

Figure 11. VFB Voltage vs Junction Temperature
TPS562219A TPS563219A C023_SLVSCM7.png

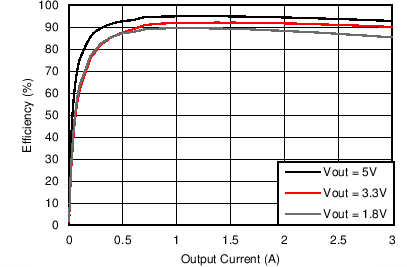

Figure 13. Efficiency vs Output Current
TPS562219A TPS563219A C025_SLVSCM7.png

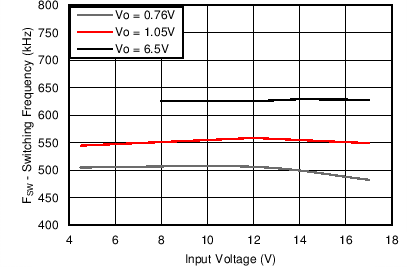

Figure 15. Switching Frequency vs Input Voltage
TPS562219A TPS563219A C020_SLVSCM7.png

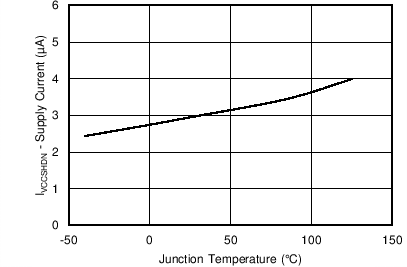

Figure 10. VIN Shutdown Current vs Junction Temperature
TPS562219A TPS563219A C022_SLVSCM7.png

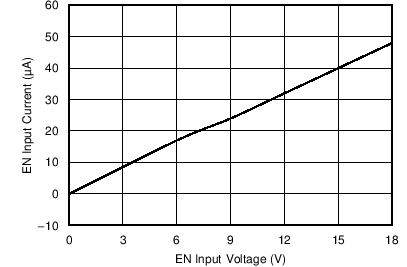

Figure 12. EN Current vs EN Voltage
TPS562219A TPS563219A C024_SLVSCM7.png

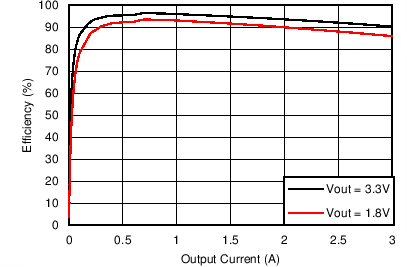

Figure 14. Efficiency vs Output Current (VI = 5V)
TPS562219A TPS563219A C026_SLVSCM7.png

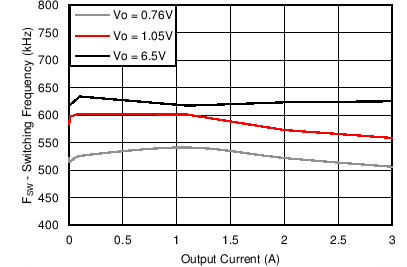

Figure 16. Switching Frequency vs Output Current
