Typical Characteristics

VIN = 12 V (unless otherwise noted)
VIN = 12 V (unless otherwise noted)GUID-FE4083B3-3681-40D4-B9CA-180E178CC0B7-low.gifFigure 6-1 TPS561201 Supply Current vs Junction Temperature. VIN = 12 V (unless otherwise noted)
GUID-75ADC28D-6E3E-4453-A28F-778576379F98-low.gifFigure 6-3 EN Pin UVLO Low Voltage vs Junction Temperature
GUID-1BDA0F38-1755-4DC2-9EE0-A7D22BF6F538-low.pngFigure 6-5 High-Side Rds-on vs Junction Temperature
Iout = 10 mA

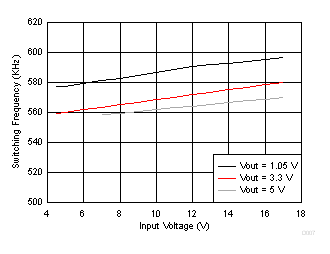

Figure 6-7 TPS561208 Switching Frequency vs Input Voltage
GUID-5AD066DA-F2C1-4F4C-A146-82BF8337C377-low.gifFigure 6-9 TPS561201 VOUT = 1.05 V, Efficiency, L = 2.2 µH
GUID-A39A748B-4E09-419C-9A4F-022718A66D83-low.gifFigure 6-11 TPS561201 VOUT = 3.3 V, Efficiency, L = 3.3 µH
GUID-AA2CFD84-EDBC-4F0A-B6CB-39588FEFDEB5-low.gifFigure 6-13 TPS561208 VOUT = 1.05 V, Efficiency, L = 2.2 µH
GUID-D247BC7C-2977-4DCA-8518-5ED391AD8C03-low.gifFigure 6-15 TPS561208 VOUT = 3.3 V, Efficiency, L = 3.3 µH
GUID-2B4B502B-9CF9-4E14-B712-C04EA35C20FF-low.gifFigure 6-2 VFB Voltage vs Junction Temperature
GUID-C2EA4A0C-FFCD-4F16-8934-CCE4284C433A-low.gifFigure 6-4 EN Pin UVLO High Voltage vs Junction Temperature
GUID-6BAEB563-246C-4A7F-8E94-0AE0CC0E7249-low.pngFigure 6-6 Low-Side Rds-on vs Junction Temperature
VIN = 12 V

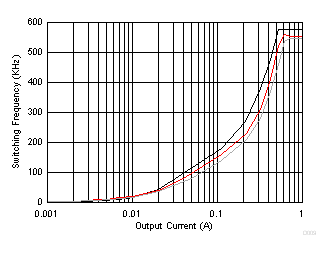

Figure 6-8 TPS561201 Switching Frequency vs Output Current
GUID-3B04E1E0-8065-4588-A31A-7226896B17CC-low.gifFigure 6-10 TPS561201 VOUT = 1.5 V, Efficiency, L = 2.2 µH
GUID-80F6D00E-9B95-48B1-B2CD-CB3E963E5ED1-low.gifFigure 6-12 TPS561201 VOUT = 5 V, Efficiency, L = 4.7 µH
GUID-117AEE1F-5B72-4D97-A59F-12EB5804C3F5-low.gifFigure 6-14 TPS561208 VOUT = 1.5 V, Efficiency, L = 2.2 µH
GUID-F0E09400-D4D8-4514-AF4F-0F0B90DBC99C-low.gifFigure 6-16 TPS561208 VOUT = 5 V, Efficiency, L = 4.7 µH
