7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature (unless otherwise noted)
MIN MAX UNIT
Voltage Input: VIN, EN, ISNS+, ISNS– –0.3 40 V
DC voltage: SW –0.6 60 V
Transient voltage (10 ns max): SW –2 60 V
FB, RT/CLK, COMP, SS –0.3 3.6 V
BOOT, HDRV voltage with respect to ground 65 V
BOOT, HDRV voltage with respect to SW pin 8 V
VCC, PGOOD, LDRV –0.3 8 V
Operating junction temperature –40 150 °C

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –65 150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) –2000 2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) –500 500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN Input voltage range 4.5 38 V
VOUT Output voltage range VIN 58 V
VEN EN voltage range 0 38 V
VCLK External switching frequency logic input range 0 3.6 V
TJ Operating junction temperature –40 150 °C

7.4 Thermal Characteristics

over operating free-air temperature range (unless otherwise noted)
THERMAL METRIC (1) WQFN
(16-PINS)
UNIT
RθJA Junction-to-ambient thermal resistance 65.7 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 42.3
RθJB Junction-to-board thermal resistance 18
ψJT Junction-to-top characterization parameter 0.9
ψJB Junction-to-board characterization parameter 17.9
RθJC(bot) Junction-to-case (bottom) thermal resistance 22.7
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

VIN = 4.5 to 38 V, TJ = –40ºC to 150ºC, unless otherwise noted. Typical values are at TA = 25ºC
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY AND ENABLE
VIN Input voltage range 4.5 38 V
VUV Input undervoltage threshold VIN falling 3.7 3.9 4 V
VIN rising 3.9 4.1 4.3 V
Vhys Undervoltage lockout hysteresis 200 mV
IQ Operating quiescent current into VIN Device non-switching,
RT = 115 kΩ, VFB = 2 V
600 800 µA
ISD Shutdown current VEN = 0.4 V 1.5 5 µA
VEN EN pin voltage threshold to standby VEN ramping down 0.4 0.7 0.9 V
EN pin voltage threshold to enable the device VEN ramping up 1.12 1.21 1.29 V
EN pin voltage threshold to disable the device VEN ramping down 1 1.14 1.28 V
IEN EN pin pullup current VEN = 1 V 1.8 µA
EN pin hysteresis current VEN = 1.3 V 3.2 4.6 µA
tEN EN to start switching time CVCC = 0.47 µF 125 µs
VCC VCC voltage TPS43060 VIN = 12 to 38 V,
IVCC = 0 µA
7.5 V
VIN = 4.5 V,
IVCC = 0 µA
4.5 V
TPS43061 VIN = 12 to 38 V,
IVCC = 0 µA
5.5 V
VIN = 4.5 V,
IVCC = 0 µA
4.5 V
IVCC VCC pin maximum output current 50 mA
VOLTAGE REFERENCE AND ERROR AMPLIFIER
VREF Feedback voltage reference TJ = 25°C 1.21 1.22 1.23 V
TJ = –40°C to 150°C 1.195 1.22 1.244
IFB Error amplifier input bias current 20 nA
ICOMP COMP pin sink current VFB = VREF + 250 mV, VCOMP = 1.5 V 160 µA
COMP pin source current VFB = VREF – 250 mV, VCOMP = 1.5 V 160 µA
VCLAMP COMP pin clamp voltage High clamp, VFB = 1 V 2.1 V
Low clamp, VFB = 1.5 V 0.7
COMP pin threshold Duty cycle = 0% 1 V
Gea Error amplifier transconductance 1.1 mS
Rea Error amplifier output resistance 10
Fea Error amplifier crossover frequency 2 MHz
CURRENT SENSE
VCSmax Maximum current sense threshold At 0% duty cycle 64 73 82 mV
Maximum current sense threshold At max duty cycle 50 61 72 mV
VRCsns Reverse current sense threshold 3.8 mV
ISNS+ Sense+ pin current 70 µA
ISNS– Sense– pin current 70 µA
RT/CLK
ƒSW Switching frequency Operating frequency range using resistor timing mode 50 1000 kHz
RT = 115 kΩ 450 500 550 kHz
RT = 75 kΩ 675 750 825 kHz
VRT/CLK RT/CLK pin voltage 0.5 V
tCLK-min Minimum input clock pulse duration PLL = 500 kHz 14 60 ns
vCLK-H RT/CLK high threshold 1.78 2 V
ƒCLK RT/CLK low threshold 0.4 1.35 V
PLL frequency sync range 300 1000 kHz
tPLLIN PLL lock in time 100 250 µs
tPLLEXIT Last RT/CLK falling edge to return to resistor timing mode if CLK is not present 140 250 µs
POWER SWITCH DRIVERS
RLDRV LDRV pullup resistance TPS43060 VIN = 12 to 40 V 2 Ω
VIN = 4.5 V 3
TPS43061 VIN = 12 to 40 V 2.5 Ω
VIN = 4.5 V 3
LDRV pulldown resistance TPS43060 VIN = 12 to 40 V 1.2 Ω
VIN = 4.5 V 2
TPS43061 VIN = 12 to 40 V 1.6 Ω
VIN = 4.5 V 2
RHDRV HDRV pullup resistance TPS43060 VIN = 12 to 40 V 2 Ω
VIN = 4.5 V 2.8
TPS43061 VIN = 12 to 40 V 5 Ω
VIN = 4.5 V 5.5
HDRV pulldown resistance TPS43060 VIN = 12 to 40 V 1.2 Ω
VIN = 4.5 V 1.9
TPS43061 VIN = 12 to 40 V 3 Ω
VIN = 4.5 V 3.7
tHR High-side gate rise time, 10% to 90% TPS43060 CLOAD = 2.2 nF,
VIN = 12 to 40 V
15 ns
TPS43061 20
tHF High-side gate fall time, 90% to 10% TPS43060 CLOAD = 2.2 nF,
VIN = 12 to 40 V
10 ns
TPS43061 15
tLR Low-side gate rise time, 10% to 90% TPS43060 CLOAD = 2.2 nF,
VIN = 12 to 40 V
15 ns
TPS43061 20
tLF Low-side gate fall time, 90% to 10% TPS43060 CLOAD = 2.2 nF,
VIN = 12 to 40 V
10 ns
TPS43061 15
VF BOOT diode forward voltage drop TPS43061 IF = 10 mA, TA = 25ºC 0.75 V
IBOOT BOOT pin leakage current TPS43061 Vr = 60 V 0.1 µA
tON LDRV minimum on pulse duration ƒSW = 500 kHz 100 ns
tOFF LDRV minimum off pulse duration ƒSW = 500 kHz 250 ns
tdelay Time delay between LDRV fall(50%) to HDRV rise (50%), tnon-overlap1 TPS43060,
CLOAD = open,
ƒSW = 500 kHz
VIN = 12 V 65 ns
VIN = 4.5 V 75 ns
TPS43061,
CLOAD = open,
ƒSW = 500 kHz
VIN = 12 V 65 ns
VIN = 4.5 V 75 ns
Time delay between HDRV fall (50%) to LDRV rise (50%), tnon-overlap2 TPS43060,
CLOAD = open,
ƒSW = 500 kHz
VIN = 12 V 65 ns
VIN = 4.5 V 75 ns
TPS43061,
CLOAD = open,
ƒSW = 500 kHz
VIN = 12 V 65 ns
VIN = 4.5 V 75 ns
POWER GOOD, SS AND OVP
PGDL PGOOD low threshold VFB with respect to feedback voltage reference, VFB falling 86% 90% 93%
PGOOD low hysteresis VFB with respect to feedback voltage reference 2%
PGDH PGOOD high threshold VFB with respect to feedback voltage reference, VFB rising 107% 110% 114%
PGOOD high hysteresis VFB with respect to feedback voltage reference 2%
PGDSC PGOOD sink current VPGOOD = 0.4 V 1.8 4 mA
PGDLK PGOOD pin leakage current VPGOOD = 7 V 100 nA
VIN_PGD Minimum VIN for valid PGOOD 2.5 4.3 V
ISS Soft-start bias current VSS = 0 V 5 µA
RSS Soft-start discharge resistance 250 Ω
VOVP OVP threshold VFB with respect to feedback voltage reference, VFB rising 104% 107% 110%
OVP hysteresis VFB with respect to feedback voltage reference 2%
THERMAL SHUTDOWN
TSD Thermal shutdown set threshold 165 °C
Thyst Thermal shutdown hysteresis 15 °C

7.6 Typical Characteristics

VIN = 12 V, ƒSW = 500 kHz, TA = 25ºC (unless otherwise noted)
TPS43060 TPS43061 C002_SLVSBP4.png

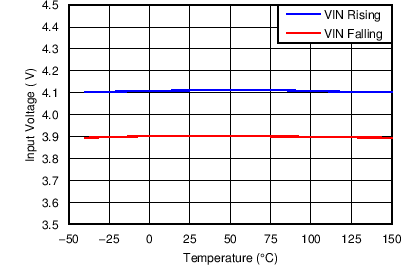

Figure 1. Input Start and Stop Voltage vs Temperature
TPS43060 TPS43061 C004_SLVSBP4.png

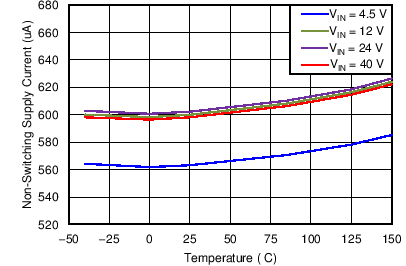

Figure 3. Non-Switching Supply Current vs Temperature
TPS43060 TPS43061 C006_SLVSBP4.png

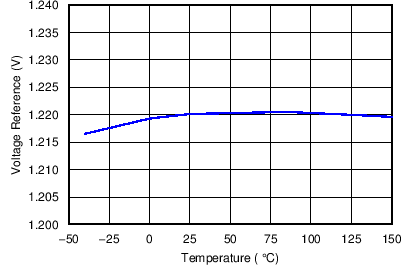

Figure 5. Feedback Voltage Reference vs Temperature
TPS43060 TPS43061 C008_SLVSBP4.png

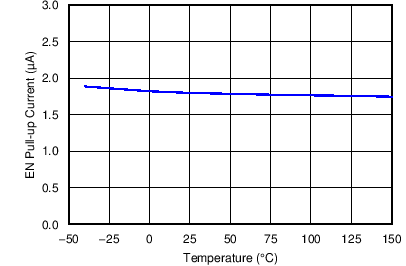

Figure 7. EN Pullup Current vs Temperature
TPS43060 TPS43061 C010_SLVSBP4.png

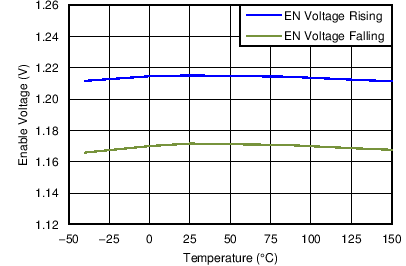

Figure 9. Enable Threshold vs Temperature
TPS43060 TPS43061 C012_SLVSBP4.png

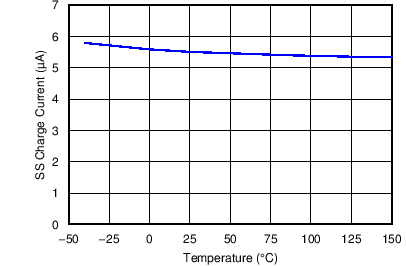

Figure 11. SS Charge Current vs Temperature
TPS43060 TPS43061 C014_SLVSBP4.png

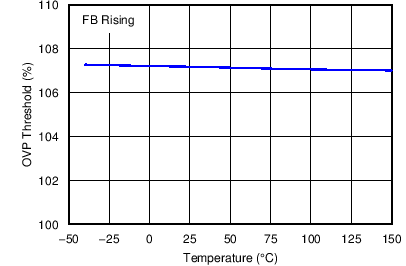

Figure 13. OVP Threshold vs Temperature
TPS43060 TPS43061 C016_SLVSBP4.png

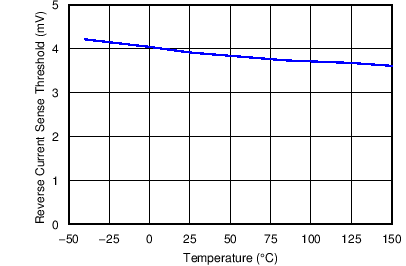

Figure 15. Reverse Current Sense Threshold vs Temperature
TPS43060 TPS43061 C003_SLVSBP4.png

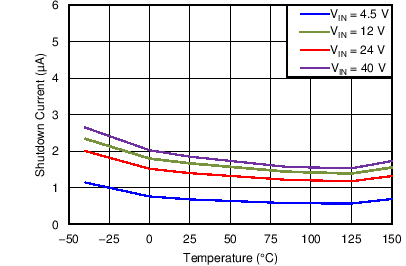

Figure 2. Shutdown Supply Current vs Temperature
TPS43060 TPS43061 C005_SLVSBP4.png

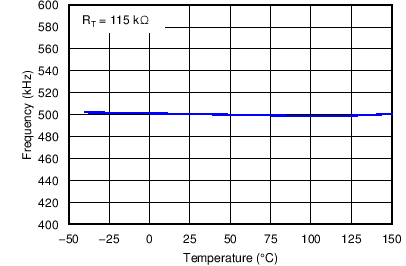

Figure 4. Frequency vs Temperature
TPS43060 TPS43061 C007_SLVSBP4.png

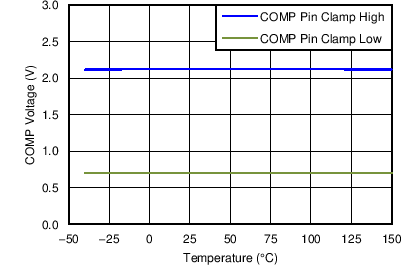

Figure 6. COMP Clamp Voltage vs Temperature
TPS43060 TPS43061 C009_SLVSBP4.png

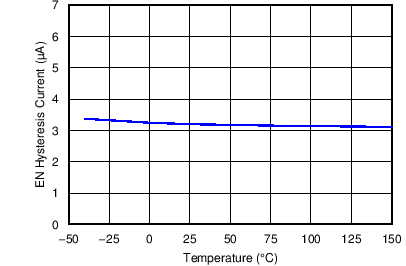

Figure 8. EN Hysteresis Current vs Temperature
TPS43060 TPS43061 C011_SLVSBP4.png

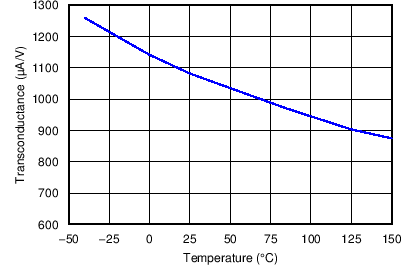

Figure 10. Error Amplifier Transconductance vs Temperature
TPS43060 TPS43061 C013_SLVSBP4.png

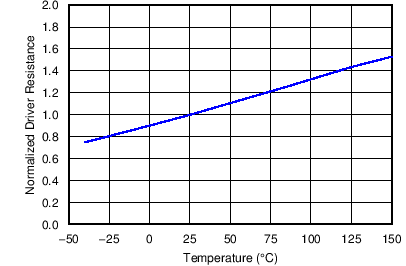

Figure 12. Gate Driver Output Resistance vs Temperature
TPS43060 TPS43061 C015_SLVSBP4.png

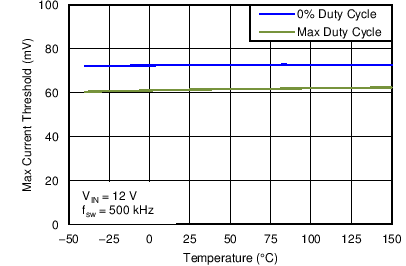

Figure 14. Maximum Current Sense Threshold vs Temperature
TPS43060 TPS43061 C017_SLVSBP4.png

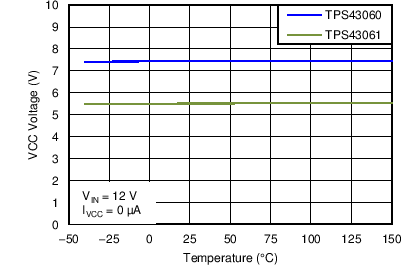

Figure 16. VCC Voltage vs Temperature
