Figure 5. UVLO Voltage Threshold

Figure 7. DIAG_EN Voltage Threshold

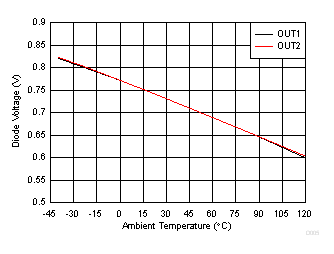

Figure 9. Body-Diode Forward Voltage

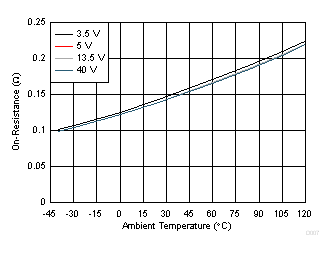

Figure 11. Channel-1 FET On-Resistance

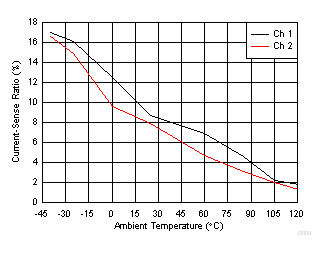

Figure 13. Current-Sense Ratio at 5 mA

Figure 15. Current-Sense Ratio at 50 mA

Figure 17. Current-Sense Ratio at 500 mA

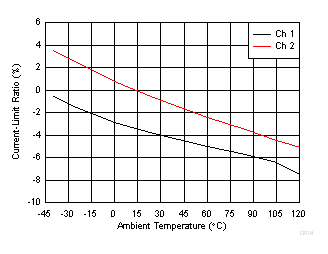

Figure 19. Current-Limit Ratio at 0.5 A

Figure 21. Current-Limit Ratio at 2 A

Figure 6. INx Voltage Threshold

A

Figure 8. SEL Voltage Threshold

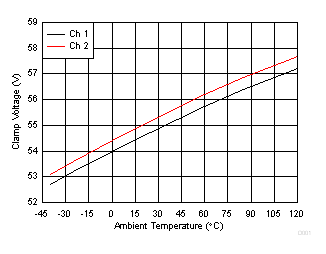

Figure 10. Drain-to-Source Clamp Voltage

Figure 12. Channel-2 FET On-Resistance

Figure 14. Current-Sense Ratio at 25 mA

Figure 16. Current-Sense Ratio at 100 mA

Figure 18. Current-Limit Ratio at 0.25 A

Figure 20. Current-Limit Ratio at 1 A
