Overvoltage Lockout (OVLO)

The TPS259814x devices allow the user to implement overvoltage lockout to protect the load from input overvoltage conditions. The OVLO comparator on the EN/OVLO pin allows the overvoltage protection threshold to be adjusted to a user defined value. After the voltage at the EN/OVLO pin crosses the OVLO rising threshold VOV(R), the device turns off the power to the output. Thereafter, the devices wait for the voltage at the EN/OVLO pin to fall below the OVLO falling threshold VOV(F) before the output power is turned ON again. The rising and falling thresholds are slightly different to provide hysteresis. Figure 9-10 and Equation 2 show how a resistor divider can be used to set the OVLO set point for a given voltage supply.

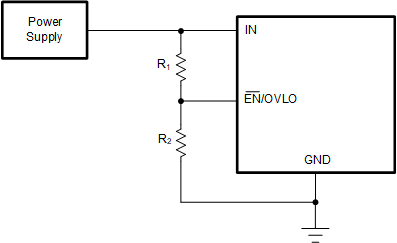

GUID-20220319-SS0I-HGG1-NJD5-LGTZFZZJ0RTZ-low.gif Figure 8-2 Adjustable Overvoltage Protection
Equation 2. V I N ( O V )   = V O V   ×   ( R 1 +   R 2 ) R 2
GUID-20220319-SS0I-RL4X-PGWG-DG8ZSRXC9L5L-low.gif Figure 8-3 TPS259814x Overvoltage Lockout and Recovery
While recovering from a OVLO event, the TPS259814x variants start up with inrush control (dVdt).
