Auto-Retry Functionality

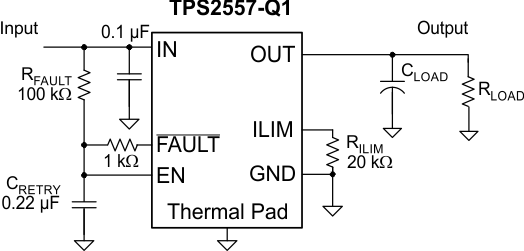

Some applications require that an overcurrent condition disable the device momentarily during a fault condition and re-enables it after a preset time. This auto-retry functionality can be implemented with an external resistor and capacitor. During a fault condition, FAULT pulls EN low. Pulling EN below the turnoff threshold disables the part is disabled, and FAULT goes into the high-impedance state, allowing CRETRY to begin charging. The device re-enables when the voltage on EN reaches the turnon threshold. The resistor-capacitor time constant determines the auto-retry time. The device continues to cycle in this manner until removal of the fault condition.

GUID-1BE09249-CA4C-47B7-8B68-89666A54B68E-low.gifFigure 9-1 Auto-Retry Functionality

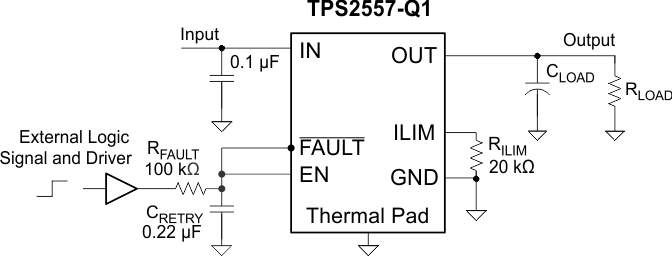

Some applications require auto-retry functionality and the ability to enable and disable with an external logic signal. Figure 9-2 shows how an external logic signal can drive EN through RFAULT and maintain auto-retry functionality. The resistor-capacitor time constant determines the auto-retry time-out period.

GUID-2F9C1725-657C-4E1D-AA68-054843497DBC-low.gifFigure 9-2 Auto-Retry Functionality With External EN Signal
