12 Layout

12.1 Layout Guidelines

For best performance, all traces should be as short as possible. To be most effective, the input and output capacitors should be placed close to the device to minimize the effects that parasitic trace inductances may have on normal and short-circuit operation. Using wide traces for VIN, VOUT, and GND helps minimize the parasitic electrical effects along with minimizing the case-to-ambient thermal impedance.

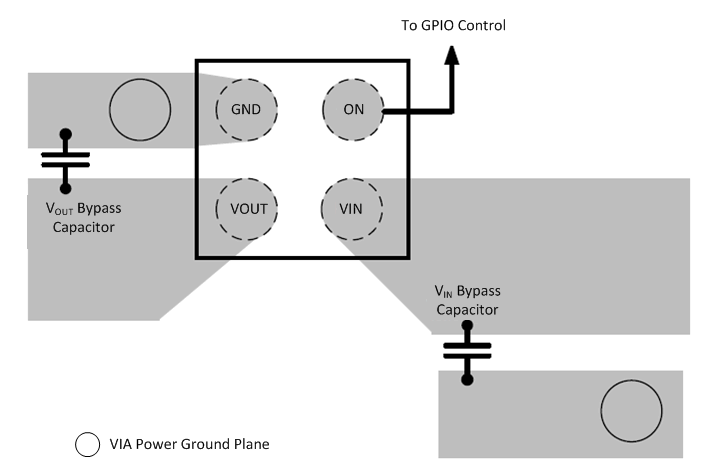

12.2 Layout Example

TPS22903 TPS22904 Layout-Drawing-TPS22903.gifFigure 30. Layout Example Recommendation
