12 Layout

12.1 Layout Guidelines

12.1.1 Component Location

Place all the external components close to the TPA2005D1. The input resistors need to be close to the TPA2005D1 input pins so noise does not couple on the high impedance nodes between the input resistors and the input amplifier of the TPA2005D1. Placing the decoupling capacitor, CS, close to the TPA2005D1 is important for the efficiency of the class-D amplifier. Any resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency.

12.1.2 Trace Width

Make the high current traces going to pins VDD, GND, VO+ and VO- of the TPA2005D1 have a minimum width of 0,7 mm. If these traces are too thin, the TPA2005D1's performance and output power will decrease. The input traces do not need to be wide, but do need to run side-by-side to enable common-mode noise cancellation.

12.1.3 MicroStar Junior™ BGA Specifications

Use the following MicroStar Junior BGA ball diameters:

  • 0,25 mm diameter solder mask
  • 0,28 mm diameter solder paste mask/stencil
  • 0,38 mm diameter copper trace

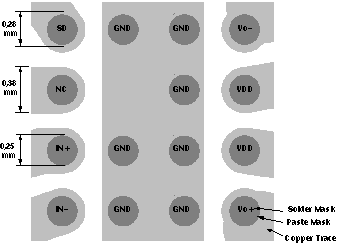

Figure 44 shows how to lay out a board for the TPA2005D1 MicroStar Junior BGA.

TPA2005D1 ai_BGA_BL_los369.gif Figure 44. TPA2005D1 MicroStar Junior BGA Board Layout (Top View)

12.2 Layout Examples

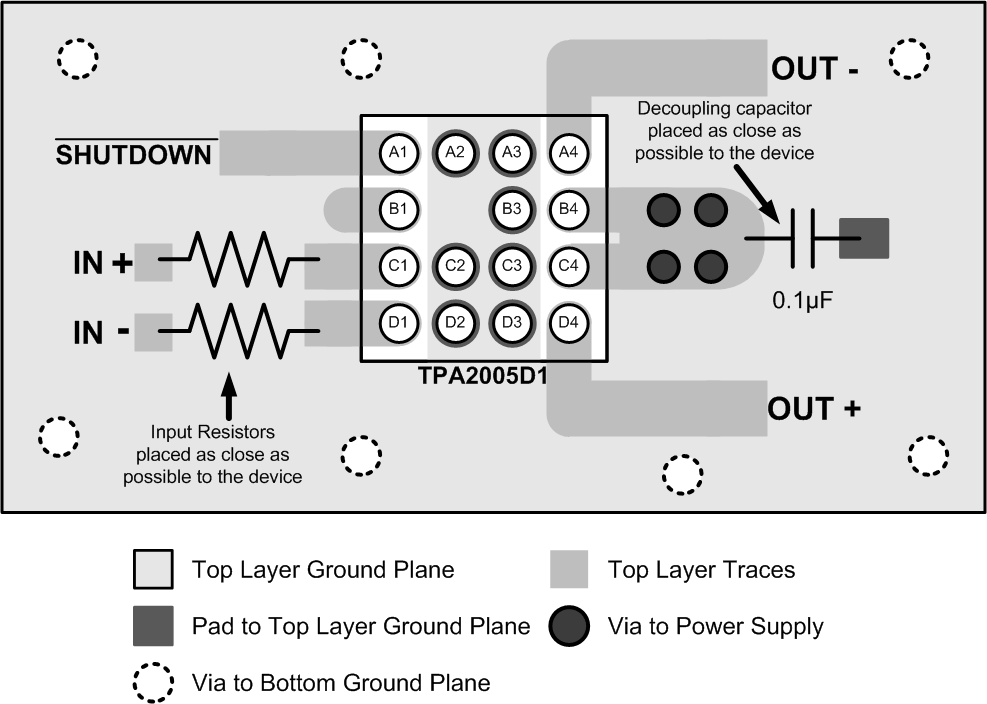

TPA2005D1 layout_BGA.gif Figure 45. TPA2005D1 MicroStar Junior™ BGA Package Layout Example

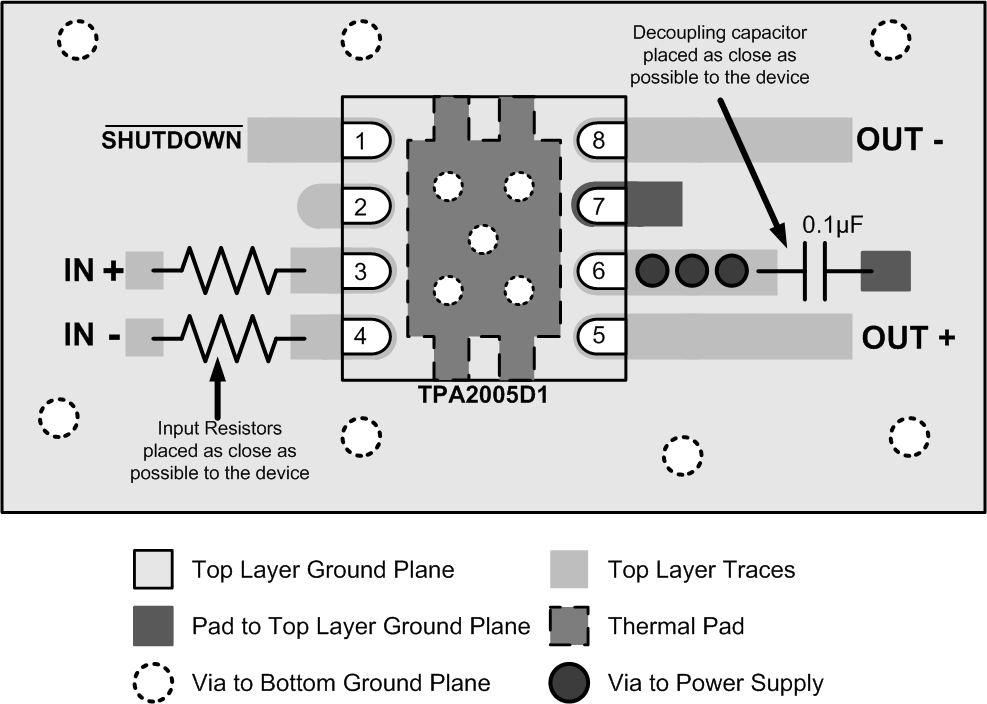

TPA2005D1 layout_QFN.gif Figure 46. TPA2005D1 DRB Package Layout Example

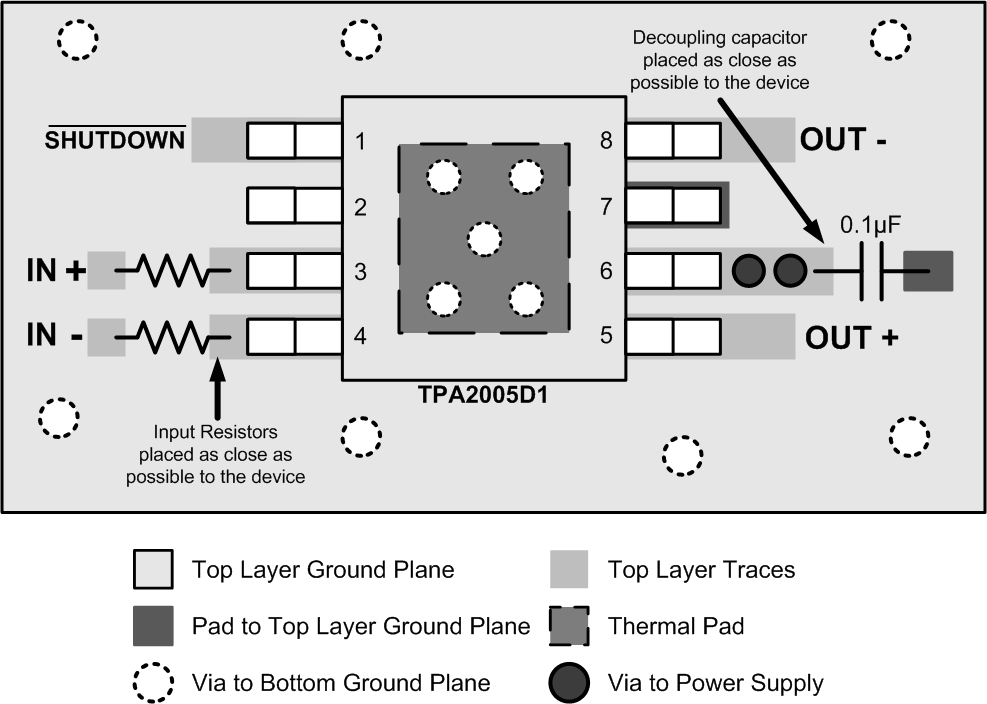

TPA2005D1 layout_MSOP.gif Figure 47. TPA2005D1 DGN Package Layout Example
