6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Supply voltage, VS 4 V
Input voltage SDA, SCL, ALERT, A2, A1 -0.3 4 V
A0 -0.3 (VS) + 0.3 V
Sink current SDA, ALERT 10 mA
Operating junction temperature -55 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range -60 150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) –2000 2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) –1000 1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage 1.4 1.8 3.6 V
Operating free-air temperature, TA -55 125 °C

6.4 Thermal Information

THERMAL METRIC(1) TMP75C UNIT
D (SOIC) DGK (VSSOP)
8 PINS 8 PINS
RθJA Junction-to-ambient thermal resistance 125.4 188.1 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 71.5 79.1
RθJB Junction-to-board thermal resistance 65.8 109.6
ψJT Junction-to-top characterization parameter 21.1 15.3
ψJB Junction-to-board characterization parameter 65.3 108
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A N/A
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

At TA = –55°C to +125°C and VS = +1.4 V to +3.6 V, unless otherwise noted. Typical values at TA = 25°C and VS = +1.8 V.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
TEMPERATURE INPUT
Temperature range –55 +125 °C
Temperature resolution 0.0625 °C
Temperature accuracy (error) 0°C to +70°C ±0.25 ±1 °C
–20°C to +85°C ±0.5 ±2 °C
–55°C to +125°C ±1 ±3 °C
DIGITAL INPUT/OUTPUT
VIH High-level input voltage 0.7(VS) VS V
VIL Low-level input voltage -0.3 0.3(VS) V
IIN Input current 0 V < VIN < (VS) + 0.3 V 1 μA
VOL Low-level output voltage VS ≥ 2 V, IOUT = 3 mA 0.4 V
VS < 2 V, IOUT = 3 mA 0.2(VS) V
ADC resolution 12 Bit
Conversion time One-shot mode 20 27 35 ms
Update Rate 80 ms
Bus timeout time 16 22 29 ms
POWER SUPPLY
Operating supply range 1.4 3.6 V
IQ Quiescent current Serial bus inactive 15 37 μA
Serial bus active, SCL frequency = 400 kHz 25 μA
Serial bus active, SCL frequency = 3.4 MHz 95 μA
ISD Shutdown current Serial bus inactive 0.3 8 μA
Serial bus active, SCL frequency = 400 kHz 10 μA
Serial bus active, SCL frequency = 3.4 MHz 80 μA

6.6 Typical Characteristics

At TA = 25°C and VS = +1.8 V (unless otherwise noted).

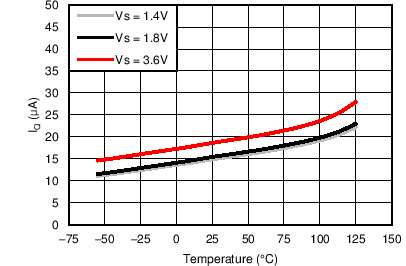

Figure 1. Quiescent Current vs Temperature

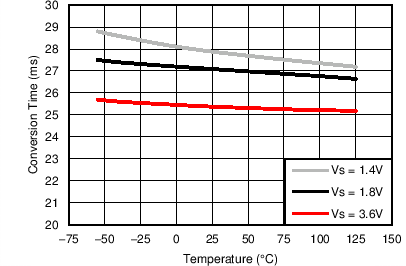

Figure 3. Conversion Time vs Temperature
Figure 5. Temperature Error vs Temperature

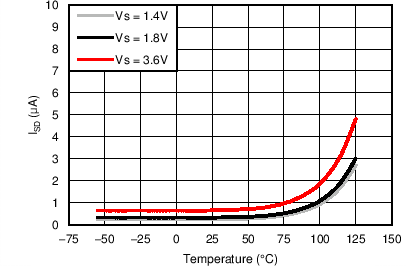

Figure 2. Shutdown Current vs Temperature
Figure 4. Quiescent Current vs Bus Frequency

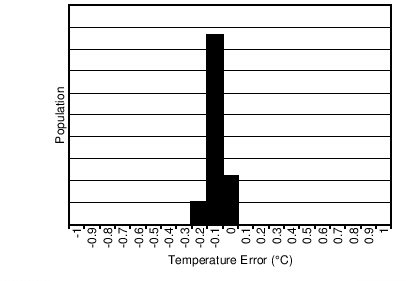

Figure 6. Temperature Error at 25°C
