8.2 Typical Application

Several versions of the TPS713 are ideal for powering the MSP430 microcontroller.

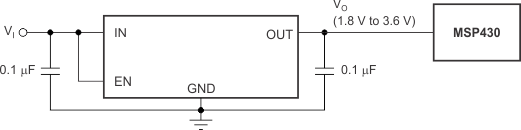

Figure 26 shows a diagram of the TLV713 powering an MSP430 microcontroller. Table 2 shows potential applications of some voltage versions.

TLV713 ai_pwring_msp430_bvs195.gifFigure 26. TLV713 Powering a Microcontroller

Table 2. Typical MSP430 Applications

DEVICE VOUT (Typ) APPLICATION
TLV71318P 1.8 V Allows for lowest power consumption with many MSP430s
TLV71325P 2.5 V 2.2-V supply required by many MSP430s for flash programming and erasing
