Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
PVDD, VBAT DC supply voltage relative to GND –0.3 30 V
VMAX Transient supply voltage: PVDD, VBAT t ≤ 400 ms exposure –1 40 V
VRAMP Supply-voltage ramp rate: PVDD, VBAT 75 V/ms
VDD DC supply voltage relative to GND –0.3 3.5 V
IMAX Maximum current per pin (PVDD, VBAT, OUT_xP, OUT_xM, GND) ±8 A
IMAX_PULSED Pulsed supply current per PVDD pin (one shot) t < 100 ms ±12 A
VLOGIC Input voltage for logic pins (SCL, SDA, SDIN1, SDIN2, MCLK, BCLK, LRCLK, MUTE, STANDBY, I2C_ADDRx) –0.3 VDD + 0.5 V
VGND Maximum voltage between GND pins ±0.3 V
TJ Maximum operating junction temperature –55 150 °C
Tstg Storage temperature –55 150 °C

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100–002(1) ±3000 V
Charged-device model (CDM), per AEC Q100–011 All pins ±500
Corner pins (1, 28, 29 and 56) ±1000
AEC Q100–002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS–001 specification.

Recommended Operating Conditions

MIN NOM MAX UNIT
PVDD Output FET supply voltage Relative to GND 4.5 26.4 V
VBAT Battery supply voltage input Relative to GND 4.5 14.4 18 V
VDD DC logic supply Relative to GND 3.0 3.3 3.5 V
TA Ambient temperature –40 125 °C
TJ Junction temperature An adequate thermal design is required –40 150 °C
RL Nominal speaker load impedance BTL Mode 2 4 Ω
PBTL Mode 1 2
RPU_I2C I2C pullup resistance on SDA and SCL pins 1 4.7 10
CBypass External capacitance on bypass pins Pin 2, 3, 5, 6, 8, 9, 10, 19 1 µF
COUT External capacitance to GND on OUT pins Limit set by DC-diagnostic timing 1 3.3 µF
LO Output filter inductance Minimum inductance at ISD current levels 1 µH

Thermal Information

THERMAL METRIC(1) TAS6422-Q1(2) TAS6422-Q1(3) UNIT
DKQ (HSSOP) DKQ (HSSOP)
56 PINS 56 PINS
RθJA Junction-to-ambient thermal resistance °C/W
RθJC(top) Junction-to-case (top) thermal resistance 1.4 2.2 °C/W
RθJB Junction-to-board thermal resistance °C/W
ψJT Junction-to-top characterization parameter °C/W
ψJB Junction-to-board characterization parameter 10 10 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953).
JEDEC Standard 4 Layer PCB.
Measured using the TAS6422-Q1 EVM layout and heat sink. The device is not intended to be used without a heat sink.

Electrical Characteristics

Test conditions (unless otherwise noted): TC = 25°C, PVDD = VBAT = 14.4 V, VDD = 3.3 V, RL = 4 Ω, Pout = 1 W/ch, ƒ = 1 kHz, fSW = 2.11 MHz, AES17 Filter, default I2C settings, see Figure 76
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
OPERATING CURRENT
IPVDD_IDLE PVDD idle current All channels playing, no audio input 40 90 mA
IVBAT_IDLE VBAT idle current All channels playing, no audio input 80 100 mA
IPVDD_STBY PVDD standby current STANDBYActive, VDD = 0 V 1 10 μA
IVBAT_STBY VBAT standby current STANDBYActive, VDD = 0 V 4 10 μA
IVDD VDD supply current All channels playing, –60-dB signal 15 18 mA
OUTPUT POWER
PO_BTL Output power per channel, BTL 4 Ω, PVDD = 14.4 V, THD+N = 1%, TC = 75°C 20 22 W
4 Ω, PVDD = 14.4 V, THD+N = 10%, TC = 75°C 25 27
2 Ω, PVDD = 14.4 V, THD+N = 1%, TC = 75°C 38 40
2 Ω, PVDD = 14.4 V, THD+N = 10%, TC = 75°C 42 45
4 Ω, PVDD = 25 V, THD+N = 1%, TC = 75°C 50 55
4 Ω, PVDD = 25 V, THD+N = 10%, TC = 75°C 70 75
PO_PBTL Output power per channel in parallel mode, PBTL 2 Ω, PVDD = 14.4 V, THD+N = 1%, TC = 75°C 35 40 W
2 Ω, PVDD = 14.4 V, THD+N = 10%, TC = 75°C 45 50
1 Ω, PVDD = 14.4 V, THD+N = 1%, TC = 75°C 72 80
1 Ω, PVDD = 14.4 V, THD+N = 10%, TC = 75°C 80 90
2 Ω, PVDD = 25 V, THD+N = 1%, TC = 75°C 98 120
2 Ω, PVDD = 25 V, THD+N = 10%, TC = 75°C 138 150
EFFP Power efficiency 2 channels operating, 25-W output power/ch 4-Ω load, PVDD = 14.4 V, TC = 25°C, including indcutor losses(1) 86%
AUDIO PERFORMANCE
Vn Output noise voltage Zero input, A-weighting, gain level 1, PVDD = 14.4 V 42 μV
Zero input, A-weighting, gain level 2, PVDD = 14.4 V 55
Zero input, A-weighting, gain level 3, PVDD = 18 V 67
Zero input, A-weighting, gain level 4, PVDD = 18 V 85
GAIN Peak output voltage/dBFS Gain level 1, Register 0x01, bit 1-0 = 00 7.5 V/FS
Gain level 2, Register 0x01, bit 1-0 = 01 15
Gain level 3, Register 0x01, bit 1-0 = 10 21
Gain level 4, Register 0x01, bit 1-0 = 11 29
Crosstalk Channel crosstalk PVDD = 14.4 Vdc + 1 VRMS, ƒ = 1 kHz -90 -75 dB
PSRR Power-supply rejection ratio PVDD = 14.4 Vdc + 1 VRMS, ƒ = 1 kHz 75 dB
THD+N Total harmonic distortion + noise 0.02% 0.05%
GCH Channel-to-channel gain variation –0.5 0 0.5 dB
LINE OUTPUT PERFORMANCE
Vn_LINEOUT LINE output noise voltage Zero input, A-weighting, channel set to LINE MODE 42 μV
VO_LINEOUT LINE output voltage 0-dB input, channel set to LINE MODE 5.5 VRMS
THD+N Line output total harmonic distortion + noise VO = 2 VRMS , channel set to LINE MODE 0.01% 0.03%
DIGITAL INPUT PINS
VIH Input logic level high 70 %VDD
VIL Input logic level low 30 %VDD
IIH Input logic current, high VI = VDD 15 µA
IIL Input logic current, low VI = 0 –15 µA
PWM OUTPUT STAGE
RDS(on) FET drain-to-source resistance Not including bond wire and package resistance 90
OVERVOLTAGE (OV) PROTECTION
VPVDD_OV PVDD overvoltage shutdown 27.0 27.8 28.8 V
VPVDD_OV_HYS PVDD overvoltage shutdown hysteresis 0.8 V
VVBAT_OV VBAT overvoltage shutdown 19.3 20 22 V
VVBAT_OV_HYS VBAT overvoltage shutdown hysteresis 0.6 V
UNDERVOLTAGE (UV) PROTECTION
VBATUV VBAT undervoltage shutdown 4 4.5 V
VBATUV_HYS VBAT undervoltage shutdown hysteresis 0.2 V
PVDDUV PVDD undervoltage shutdown 4 4.5 V
PVDDUV_HYS PVDD undervoltage shutdown hysteresis 0.2 V
BYPASS VOLTAGES
VGVDD Gate drive bypass pin voltage 7 V
VAVDD Analog bypass pin voltage 6 V
VVCOM Common bypass pin voltage 2.5 V
VVREG Regulator bypass pin voltage 5.5 V
POWER-ON RESET (POR)
VPOR VDD voltage for POR 2.1 2.7 V
VPOR_HY VDD POR recovery hysteresis voltage 0.5 V
OVERTEMPERATURE (OT) PROTECTION
OTW(i) Channel overtemperature warning 150 °C
OTSD(i) Channel overtemperature shutdown 175 °C
OTW Global junction overtemperature warning Set by register 0x01 bit 5-6, default value 130 °C
OTSD Global junction overtemperature shutdown 160 °C
OTHYS Overtemperature hysteresis 15 °C
LOAD OVER CURRENT PROTECTION
ILIM Overcurrent cycle-by-cycle limit OC Level 1 4 4.8 A
OC Level 2 6 6.5
ISD Overcurrent shutdown OC Level 1, Any short to supply, ground, or other channels 7 A
OC Level 2, Any short to supply, ground, or other channels 9
MUTE MODE
GMUTE Output attenuation 100 dB
CLICK AND POP
VCP Output click and pop voltage ITU-R 2k filter, High-Z/MUTE to Play, Play to Mute/High-Z 7 mV
DC OFSET
VOFFSET Output offset voltage 2 5 mV
DC DETECT
DCFAULT Output DC fault protection 2 2.5 V
DIGITAL OUTPUT PINS
VOH Output voltage for logic level high I = ±2 mA 90 %VDD
VOL Output voltage for logic level low I = ±2 mA 10 %VDD
tDELAY_CLIPDET Signal delay when output clipping detected 20 μs
LOAD DIAGNOSTICS
S2P Maximum resistance to detect a short from OUT pins to PVDD 500 Ω
S2G Maximum resistance to detect a short from OUT pins to ground 200 Ω
SL Shorted load detection tolerance Other channels in Hi-Z ±0.5 Ω
OL Open load Other channels in Hi-Z 40 70 Ω
TDC_DIAG DC diagnostic time All 4 Channels 230 ms
LO Line output 6
TLINE_DIAG Line output diagnostic time 40 ms
ACIMP AC impedance accuracy Gain linearity, ƒ = 19 kHz, RL = 2 Ω to 16 Ω, 25%
Offset ±0.5 Ω
TAC_DIAG AC diagnostic time All 4 Channels 520 ms
I2C_ADDR PINS
tI2C_ADDR Time delay needed for I2C address set-up 300 μs
  1. Tested with Output Inductor DFEG7030D-3R3M.

Timing Requirements

Test conditions (unless otherwise noted): TC = 25 °C, PVDD = VBAT = 14.4 V, VDD = 3.3 V, RL = 4 Ω, PO = 1 W/ch, ƒ = 1 kHz, fSW = 2.11 MHz, AES17 Filter, default I2C settings, see Figure 76
MIN TYP MAX UNIT
I2C CONTROL PORT (See Figure 41)
tBUS Bus free time between start and stop conditions 1.3 μs
tHOLD1 Hold time, SCL to SDA 0 ns
tHOLD2 Hold time, start condition to SCL 0.6 μs
tSTART I2C startup time after VDD power on reset 12 ms
tRISE Rise time, SCL and SDA 300 ns
tFALL Fall time, SCL and SDA 300 ns
tSU1 Setup, SDA to SCL 100 ns
tSU2 Setup, SCL to start condition 0.6 μs
tSU3 Setup, SCL to stop condition 0.6 μs
tW(H) Required pulse duration SCL High 0.6 μs
tW(L) Required pulse duration SCL Low 1.3 μs
SERIAL AUDIO PORT (See Figure 35)
DMCLK, DSCLK Allowable input clock duty cycle 45% 50% 55%
ƒMCLK Supported MCLK frequencies: 128, 256, or 512 128 512 xFS
ƒMCLK_Max Maximum frequency 25 MHz
tSCY SCLK pulse cycle time 40 ns
tSCL SCLK pulse-with LOW 16 ns
tSCH SCLK pulse-with HIGH 16 ns
trise/fall Rise and fall time 4 ns
tSF SCLK rising edge to FSYNC edge 8 ns
tFS FSYNC rising edge to SCLK edge 8 ns
tDS DATA set-up time 8 ns
tDH DATA hold time 8 ns
ci Input capacitance, pins MCLK, SCLK, FSYNC, SDIN1, SDIN2 10 pF
TLA Latency from input to output measured in FSYNC sample count FSYNC = 44.1 kHz or 48 kHz 30
FSYNC = 96 kHz 12

Typical Characteristics

TA = 25 ºC, VVDD = 3.3 V, VBAT = PVDD = 14.4 V, RL = 4 Ω, fIN = 1 kHz, fs = 48 kHz, fSW = 2.1 MHz, AES17 filter, default I2C settings, see Figure 76 (unless otherwise noted)

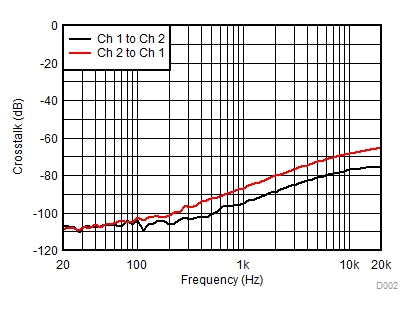

TAS6422-Q1 D002_SLOS870.gif
PO = 1 W
Figure 1. Crosstalk vs Frequency
TAS6422-Q1 D070_SLOS870.gif
PO = 1 W
Figure 3. VBAT PSRR vs Frequency

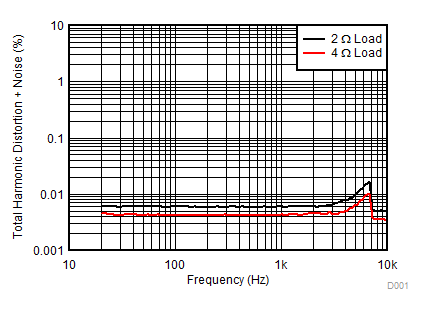

TAS6422-Q1 D001.gif
PO = 1 W fSW = 2.1 MHz
Figure 5. THD+N vs Frequency
TAS6422-Q1 D002.gif
PO = 1 W 24 V fSW = 2.1 MHz
Figure 7. THD+N vs Frequency
TAS6422-Q1 D003.gif
fSW = 2.1 MHz
Figure 9. THD+N vs Power

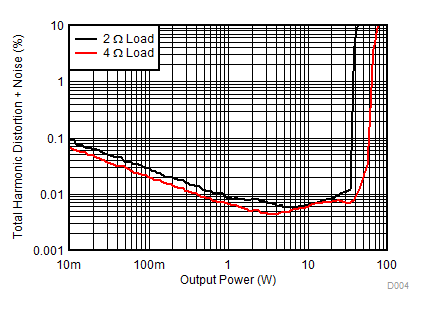

TAS6422-Q1 D004.gif
24 V fSW = 2.1 MHz
Figure 11. THD+N vs Power
TAS6422-Q1 D005.gif
10% THD fSW = 2.1 MHz
Figure 13. Output Power vs Supply Voltage
TAS6422-Q1 D045_SLOS870.gif

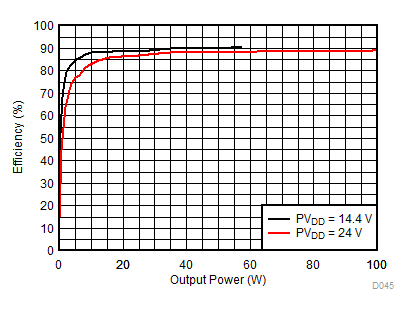

4 Ω fSW = 384 kHz
Figure 15. PVDD Power Efficiency vs Total Output Power
TAS6422-Q1 D043_SLOS870.gif

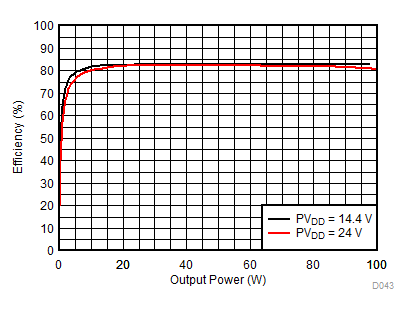

2 Ω fSW = 384 kHz
Figure 17. PVDD Power Efficiency vs Total Output Power
TAS6422-Q1 D047_SLOS870.gif
Figure 19. PVDD Idle Current vs Voltage

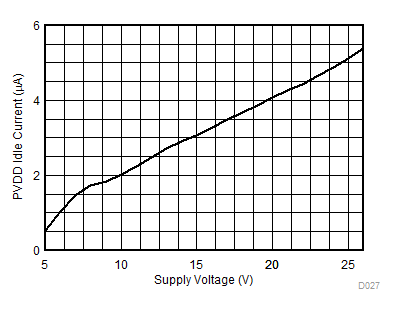

TAS6422-Q1 D027_SLOS870.gif
Figure 21. PVDD Standby Current vs Voltage
TAS6422-Q1 D006.gif
PO = 1 W fSW = 2.1 MHz
Figure 23. PBTL THD+N vs Frequency

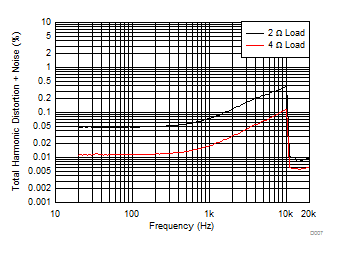

TAS6422-Q1 D007.gif
Po = 1 W fSW = 2.1 MHz 24 V PVDD
Figure 25. PBTL THD+N vs Frequency

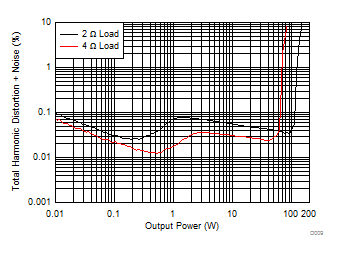

TAS6422-Q1 D008.gif
fSW = 2.1 MHz
Figure 27. PBTL THD+N vs Power
TAS6422-Q1 D009.gif
fSW = 2.1 MHz 24 V PVDD
Figure 29. PBTL THD+N vs Power
TAS6422-Q1 D010.gif
10 % THD fSW = 2.1 MHz
Figure 31. PBTL Output Power vs Voltage
TAS6422-Q1 D042_SLOS870.gif
fSW = 2.1 MHz
Figure 33. Power Dissipation vs Total Output Power

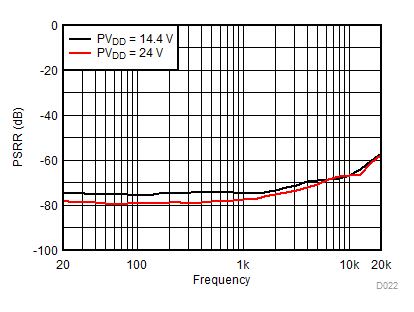

TAS6422-Q1 D022_SLOS870.gif
PO = 1 W
Figure 2. PVDD PSRR vs Frequency

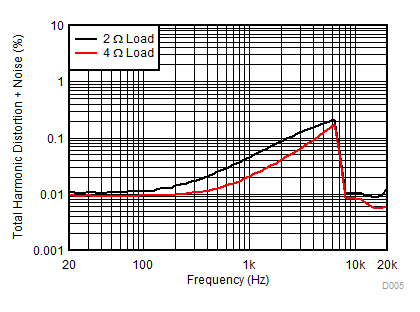

TAS6422-Q1 D005_SLOS870.gif
PO = 1 W fSW = 384 kHz
Figure 4. THD+N vs Frequency

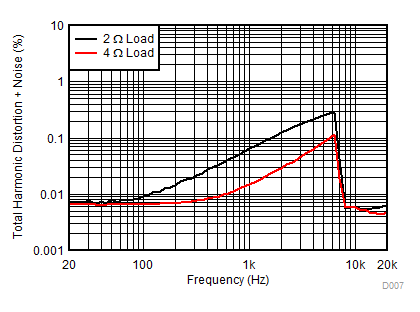

TAS6422-Q1 D007_SLOS870.gif
PO = 1 W 24 V fSW = 384 kHz
Figure 6. THD+N vs Frequency
TAS6422-Q1 D009_SLOS870.gif
fSW = 384 kHz
Figure 8. THD+N vs Power
TAS6422-Q1 D011_SLOS870.gif
24 V fSW = 384 kHz
Figure 10. THD+N vs Power
TAS6422-Q1 D013_SLOS870.gif
10% THD fSW = 384 kHz
Figure 12. Output Power vs Supply Voltage

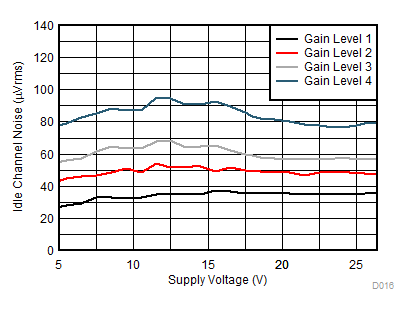

TAS6422-Q1 D016_SLOS870.gif
A-weighted Noise fSW = 2.1 MHz
Figure 14. Noise vs Supply voltage

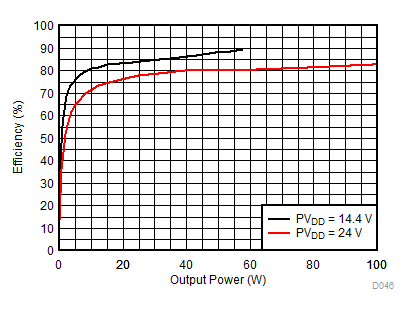

TAS6422-Q1 D046_SLOS870.gif
4 Ω fSW = 2.1 MHz
Figure 16. PVDD Power Efficiency vs Total Output Power
TAS6422-Q1 D044_SLOS870.gif
2 Ω fSW = 2.1 MHz
Figure 18. PVDD Power Efficiency vs Total Output Power
TAS6422-Q1 D048_SLOS870.gif
Figure 20. VBAT Idle Current vs Voltage

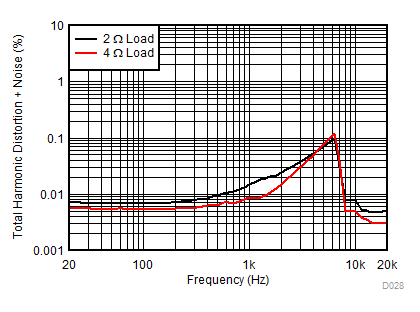

TAS6422-Q1 D028_SLOS870.gif
1 W fSW = 384 kHz
Figure 22. PBTL THD+N vs Frequency
TAS6422-Q1 D030_SLOS870.gif
PO = 1 W fSW = 384 kHz 24 V PVDD
Figure 24. PBTL THD+N vs Frequency
TAS6422-Q1 D032_SLOS870.gif
fSW = 384 kHz
Figure 26. PBTL THD+N vs Power
TAS6422-Q1 D034_SLOS870.gif
fSW = 384 kHz 24 V PVDD
Figure 28. PBTL THD+N vs Power
TAS6422-Q1 D036_SLOS870.gif
10 % THD fSW = 384 kHz
Figure 30. PBTL Output Power vs Voltage
TAS6422-Q1 D041_SLOS870.gif

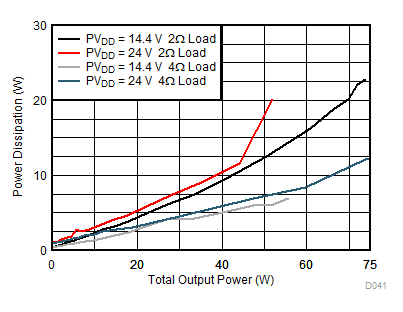

fSW = 384 kHz
Figure 32. Power Dissipation vs Total Output Power
