9.3.7 PLL

The TAS2560 on-chip PLL generates the necessary internal clock frequency for the audio DAC, I-V sensing ADCs, and DSP. The programmability of the PLL allows TAS2560 operation from a wide variety of clocks that may be available in the system application. The configurable PLL clock path is shown in Figure 30.

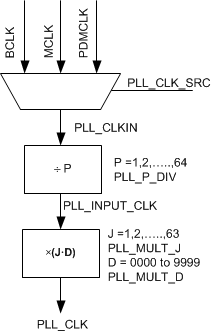

TAS2560 clock_pll_gen.gifFigure 30. PLL_CLK Source and Generation

The PLL input supports clocks varying from 512 kHz to 20 MHz and is register programmable to enable generation of required PLL_CLK from various clocks with fine resolution. The PLL output clock PLL_CLK is determined from PLL_CLKIN using the following formula:

Equation 1. TAS2560 clock_pll_gen_eq.gif

The PLL multipliers and dividers are program using the register in Table 2. The table includes also the range of values support and the default values. The D-divider value is 14-bits wide and is controlled by 2 registers. For proper update of the D-divider value, PLL_DVAL_1 must be programmed first followed immediately by PLL_DVAL_2. Unless the write to PLL_DVAL_2 is completed, the new value of D will not take effect.

Table 2. PLL Scaling Registers

PLL Divider Register Name Field Range Default
J PLL_JVAL[6:0] PLL_MULT_J 1, 2, 3, … 63 4
D PLL_DVAL_1[5:0] & PLL_DVAL_2[7:0] PLL_MULT_D 0, 1, 2, ... 9999 0
P PLL_CLKIN[5:0] PLL_P_DIV 64,1,2,3, ... 63 1

Field PLL_CLK_SRC in register PLL_CLKIN configures the PLL clock input, PLL_CLKIN.

Table 3. PLL Clock Input Source

PLL_CLKIN[7:6] (PLL_CLK_SRC) PLL_CLKIN Source
00 Input from BCLK
01 Input from MCLK (default)
10 Input from PDMLK
11 Reserved

The following conditions must be satisfied in the PLL configuration:

  • If D = 0 (Integer Mode), the PLL clock input (PLL_CLKIN) must satisfy:
    TAS2560 clock_pll_gen_eq_integer.gif
  • If D > 0(Fractional Mode), the PLL clock input (PLL_CLKIN) must satisfy:
    TAS2560 clock_pll_gen_eq_fractional.gif
  • The PLL output needs to be configured between 100 MHz and 200 MHz

Finally, the PLL_LOWF field in register PLL_JVAL must be configured properly based on the PLL_INPUT_CLK intermediate clock frequency.

Table 4. PLL Clock Input Source

PLL_JVAL[7] (PLL_LOWF) PLL_INPUT_CLK Condition
0 >= 1MHz (default)
1 < 1MHz
