8 Parameter Measurement Information

All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0 V.
Figure 6. Set Up and Hold Time Definition

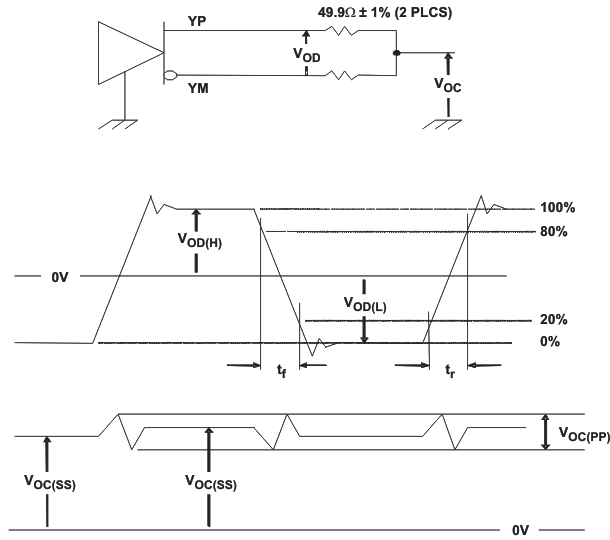

test_load_lls846.gifFigure 7. Test Load and Voltage Definitions for LVDS Outputs
The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 8. 16 Grayscale Test Pattern
The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 9. Worst-Case Power Test Pattern
CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.

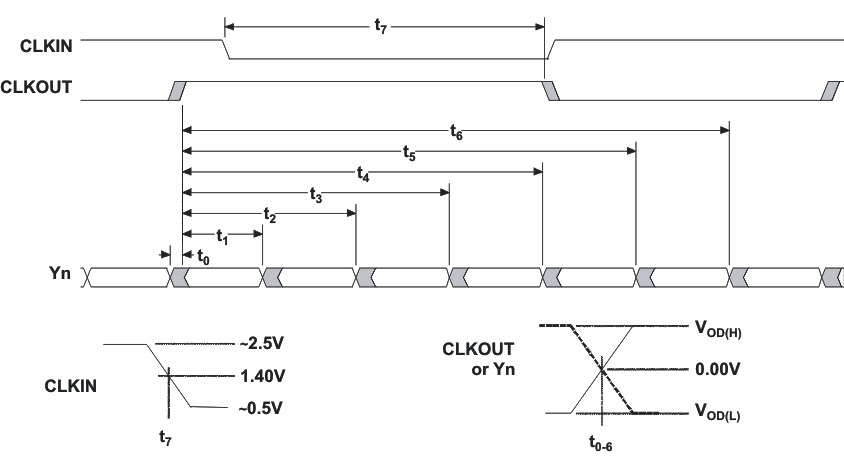

Figure 10. SN75LVDS83B Timing Definitions

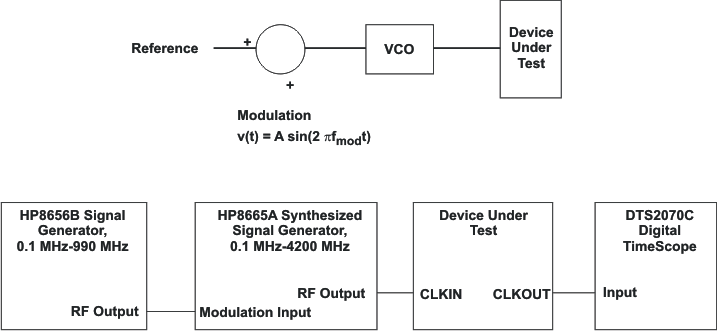

out_clock_lls846.gifFigure 11. Output Clock Jitter Test Set Up

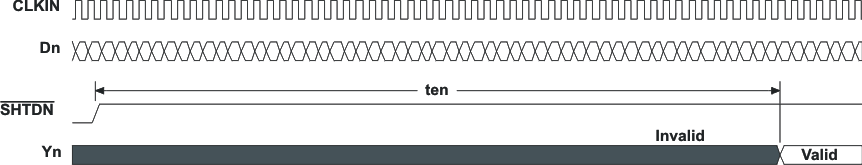

enable_time_lls846.gifFigure 12. Enable Time Waveforms

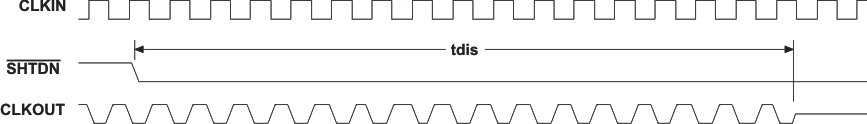

disable_time_lls846.gifFigure 13. Disable Time Waveforms
