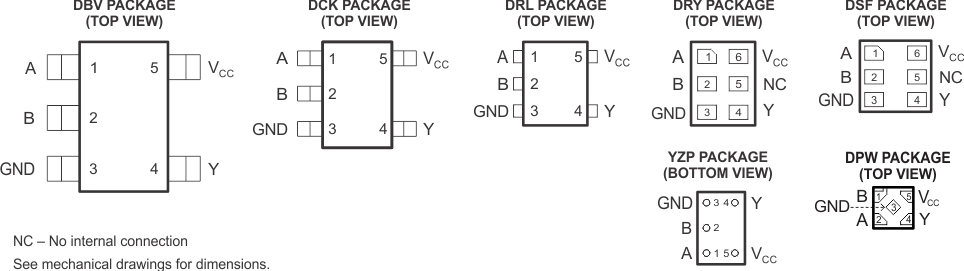

6 Pin Configuration and Functions


Pin Functions

PIN DESCRIPTION
NAME DBV, DCK, DRL, YZP DRY, DSF DPW
A 1 1 2 Input
B 2 2 1 Input
GND 3 3 3 Ground
Y 4 4 4 Output
VCC 5 6 5 Power pin
NC 5 Not connected
