7 Specifications

7.1 Absolute Maximum Ratings(1)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VCC Supply voltage range –0.5 7 V
VI Input voltage range(2) –0.5 7 V
VO Voltage range applied to any output in the high-impedance or power-off state(2) –0.5 7 V
IIK Input clamp current VI < 0 –20 mA
IOK Output clamp current VO < 0 –50 mA
IO Continuous output current VO = 0 to VCC –35 mA
Continuous current through VCC or GND ±50 mA
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –65 150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) 0 2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) 0 1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Supply voltage 2 5.5 V
VIH High level input voltage VCC = 2 V 1.5 V
VCC = 2.3 V to 2.7 V VCC × 0.7
VCC = 3 V to 3.6 V VCC × 0.7
VCC = 4.5 V to 5.5 V VCC × 0.7
VIL Low level input voltage VCC = 2 V 0.5 V
VCC = 2.3 V to 2.7 V VCC × 0.3
VCC = 3 V to 3.6 V VCC × 0.3
VCC = 4.5 V to 5.5 V VCC × 0.3
VI Input voltage 0 5.5 V
VO Output voltage 0 5.5 V
IOL Low level output current VCC = 2 V 50 µA
VCC = 2.3 V to 2.7 V 2 mA
VCC = 3 V to 3.6 V 8
VCC = 4.5 V to 5.5 V 16
Δt/Δv Input transition rise and fall rate VCC = 2.3 V to 2.7 V 200 ns/V
VCC = 3 V to 3.6 V 100
VCC = 4.5 V to 5.5 V 20
TA Operating free-air temperature –40 125 °C
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs (SCBA004).

7.4 Thermal Information

THERMAL METRIC(1) SN74LV07A UNIT
D DB DGV NS PW
14 PINS 14 PINS 14 PINS 14 PINS 14 PINS
RθJA Junction-to-ambient thermal resistance 100.6 112.5 135.2 95.4 128.7 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 51.8 65.0 57.9 52.9 57.2
RθJB Junction-to-board thermal resistance 54.9 59.9 68.3 51.2 70.7
ψJT Junction-to-top characterization parameter 25.0 25.0 9.2 17.9 9.3
ψJB Junction-to-board characterization parameter 54.7 59.3 67.6 53.8 70.0
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report (SPRA953).

7.5 Electrical Characteristics

over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS VCC SN74LV07A –40°C to 125°C
SN74LV07A
UNIT
MIN TYP MAX MIN TYP MAX
VOL IOL = 50 µA 2 V to 5.5 V 0.1 0.1 V
IOL = 2 mA 2.3 V 0.4 0.4
IOL = 8 mA 3 V 0.44 0.44
IOL = 16 mA 4.5 V 0.55 0.55
II VI = 5.5 V or GND 0 to 5.5 V ±1 ±1 µA
IOH VI = VIH, VOH = VCC 5.5 V ±2.5 ±2.5 µA
ICC VI = VCC or GND, IO = 0 5.5 V 20 20 µA
Ioff VI or VO = 0 to 5.5 V 0 5 5 µA
Ci VI = VCC or GND 3.3 V 1.6 1.6 pF

7.6 Switching Characteristics, VCC = 2.5 V ± 0.2 V

over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)
PARAMETER FROM
(INPUT)
TO
(OUTPUT)
LOAD
CAPACITANCE
TA = 25°C SN74LV07A –40°C to 125°C
SN74LV07A
UNIT
MIN TYP MAX MIN MAX MIN MAX
tPLH A Y CL = 15 pF 6.6(1) 10.4(1) 1 13 1 14 ns
tPHL A Y 7.5(1) 10.4(1) 1 13 1 14
tPLH A Y CL = 50 pF 11.1 15.2 1 18 1 19 ns
tPHL A Y 9.6 15.2 1 18 1 19
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.

7.7 Switching Characteristics, VCC = 3.3 V ± 0.3 V

over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)
PARAMETER FROM
(INPUT)
TO
(OUTPUT)
LOAD
CAPACITANCE
TA = 25°C SN74LV07A –40°C to 125°C
SN74LV07A
UNIT
MIN TYP MAX MIN MAX MIN MAX
tPLH A Y CL = 15 pF 5(1) 7.1(1) 1 8.5 1 9.5 ns
tPHL A Y 5(1) 7.1(1) 1 8.5 1 9.5
tPLH A Y CL = 50 pF 8.2 10.6 1 12 1 13 ns
tPHL A Y 6.6 10.6 1 12 1 13
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.

7.8 Switching Characteristics, VCC = 5 V ± 0.5 V

operating free-air temperature range (unless otherwise noted) (see Figure 3)
PARAMETER FROM
(INPUT)
TO
(OUTPUT)
LOAD
CAPACITANCE
TA = 25°C SN74LV07A –40°C to 125°C
SN74LV07A
UNIT
MIN TYP MAX MIN MAX MIN MAX
tPLH A Y CL = 15 pF 3.8 5.5(1) 1 6.5 1 7.2 ns
tPHL A Y 3.4(1) 5.5(1) 1 6.5 1 7.2
tPLH A Y CL = 50 pF 5.7 7.5 1 8.5 1 9.2 ns
tPHL A Y 4.5 7.5 1 8.5 1 9.2
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.

7.9 Noise Characteristics(1)

VCC = 3.3 V, CL = 50 pF, TA = 25°C
PARAMETER MIN TYP MAX UNIT
VOL(P) Quiet output, maximum dynamic VOL 0.4 0.8 V
VOL(V) Quiet output, minimum dynamic VOL –0.1 –0.8 V
VOH(V) Quiet output, minimum dynamic VOH 3.2 V
VIH(D) High-level dynamic input voltage 2.31 V
VIL(D) Low-level dynamic input voltage 0.99 V
(1) Characteristics are for surface-mount packages only.

7.10 Operating Characteristics

TA = 25°C
PARAMETER TEST CONDITIONS VCC TYP UNIT
Cpd Power dissipation capacitance CL = 50 pF, f = 10 MHz 3.3 V 2.9 pF
5 V 5.3

7.11 Typical Characteristics

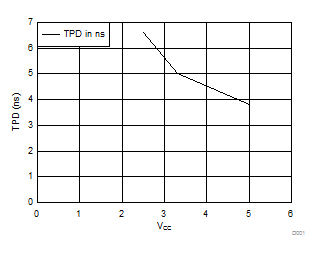

D001_SCES337.gifFigure 1. TPD vs VCC

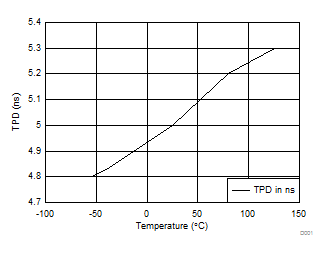

D002_SCES337.gifFigure 2. TPD vs Temperature at 3.3 V
