3 说明

SN74HCS125 包含四个具有三态输出和施密特触发输入的独立缓冲器。每个缓冲器以正逻辑执行布尔函数 Y = A。通过对 OE 引脚施加高电平，可以将输出置于高阻态。

器件信息
器件型号 封装(1) 封装尺寸（标称值）
SN74HCS125PW TSSOP (14) 5.00mm × 4.40mm
SN74HCS125D SOIC (14) 9.90mm × 3.90mm
SN74HCS125BQA WQFN (14) 3.00mm × 2.50mm
SN74HCS125DYY SOT-23-THIN (14) 2.00mm x 4.20mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

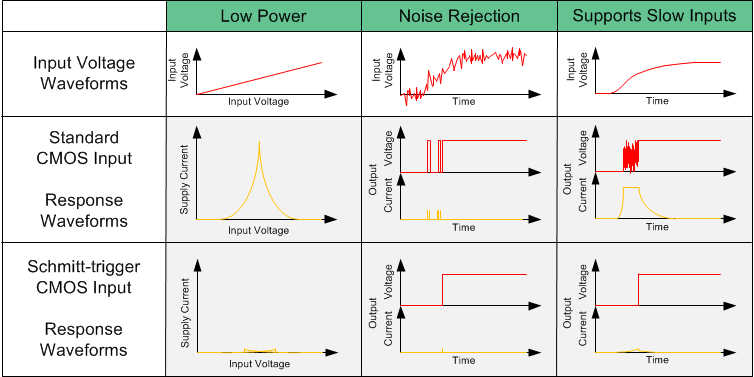

GUID-F06C44E8-F43D-4047-8B2A-320DF7F75729-low.gif施密特触发输入的优势
