12 Layout

12.1 Layout Guidelines

To ensure reliability of the device, following common printed-circuit board layout guidelines is recommended.

  • Bypass capacitors should be used on power supplies.
  • Short trace lengths should be used to avoid excessive loading.
  • Placing pads on the signal paths for loading capacitors or pullup resistors to help adjust rise and fall times of signals depending on the system requirements.

12.2 Layout Example

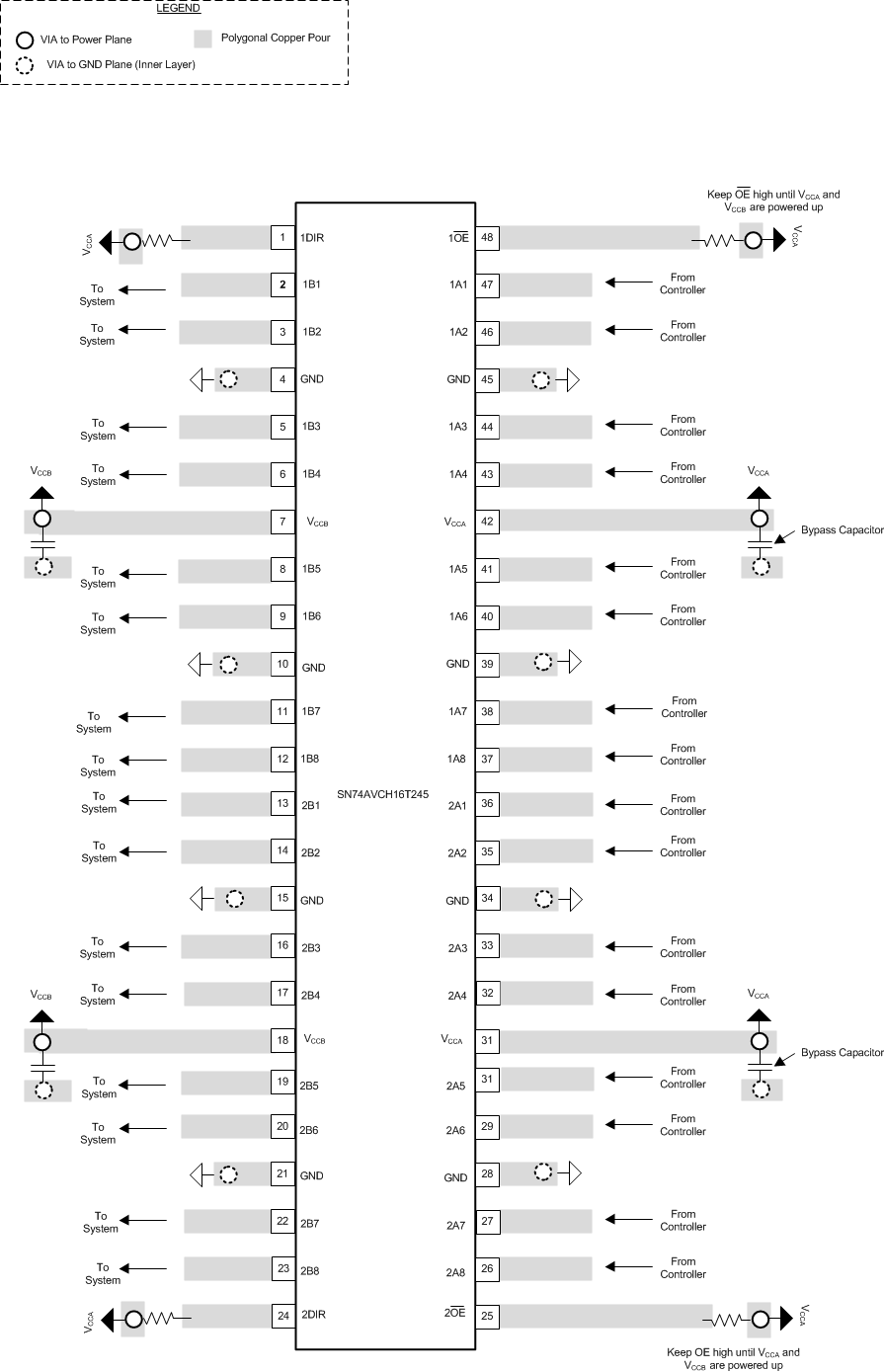

SN74AVCH16T245 layout-example-sces587.gif Figure 14. Recommended Layout Example
