Typical Characteristics

at TA = 25°C, V(CM) = VO = mid-supply, and R(L) = 10 kΩ (unless otherwise noted)
OPA320-Q1 OPA2320-Q1 tc_histo_voff_slos884.gif

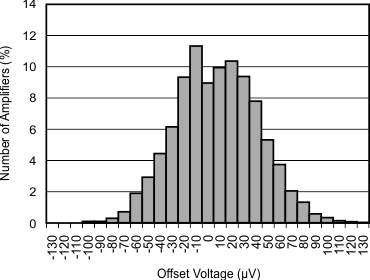

Figure 1. Offset Voltage Production Distribution
OPA320-Q1 OPA2320-Q1 tc_vo-vcm_slos884.gif
Representative units, VS = ±2.75 V

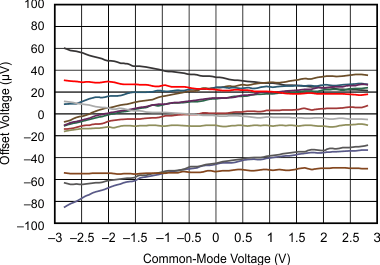

Figure 3. Offset Voltage vs Common-Mode Voltage
OPA320-Q1 OPA2320-Q1 tc_oloop_g-tmp_slos884.gif

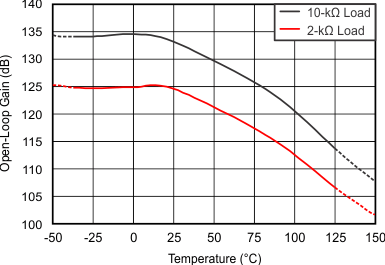

Figure 5. Open-Loop Gain vs Temperature
OPA320-Q1 OPA2320-Q1 tc_ibc-vs_slos884.gif

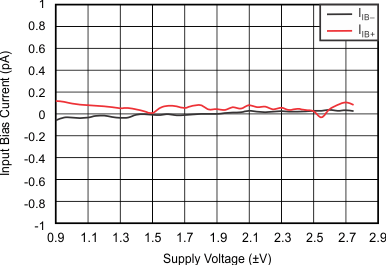

Figure 7. Input Bias Current vs Supply Voltage
OPA320-Q1 OPA2320-Q1 tc_histo_ibias_slos884.gif
Figure 9. Input Bias Current Distribution
OPA320-Q1 OPA2320-Q1 tc_cmrr_psrr-frq_slos884.gif
Figure 11. CMRR and PSRR vs Frequency
OPA320-Q1 OPA2320-Q1 tc_noise_density_slos884.gif
VS = 1.8 to 5.5 V

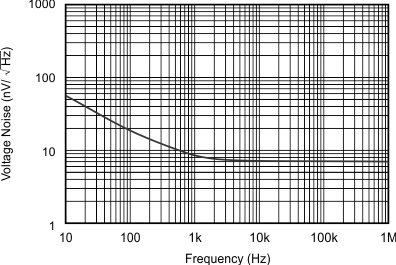

Figure 13. Input Voltage Noise Spectral Density vs Frequency
OPA320-Q1 OPA2320-Q1 tc_cloop-frq_18v_slos884.gif
VS = 1.8 V, C(L) = 50 pF, R(L) = 10 kΩ
Figure 15. Closed-Loop Gain vs Frequency
OPA320-Q1 OPA2320-Q1 tc_max_vo-frq_slos884.gif
C(L) = 50 pF, R(L) = 10 kΩ

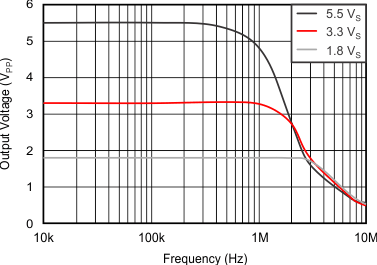

Figure 17. Maximum Output Voltage vs Frequency
OPA320-Q1 OPA2320-Q1 tc_oloop_imp-frq_slos884.gif
VS = ±2.75 V

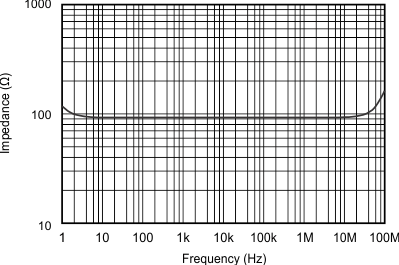

Figure 19. Open-Loop Output Impedance vs Frequency
OPA320-Q1 OPA2320-Q1 tc_thdn-amp_slos884.gif
VS = ±2.5 V, f = 10 kHz, G = 1 V/V

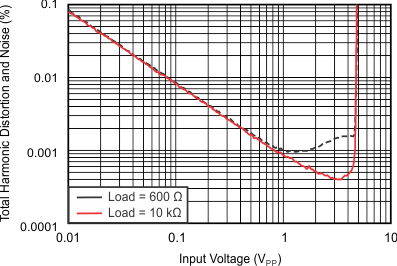

Figure 21. THD+N vs Amplitude
OPA320-Q1 OPA2320-Q1 tc_thdn-frq_4vin_slos884.gif
VS = ±2.5 V, f = 10 kHz, G = 1 V/V, VI = 4 VPP

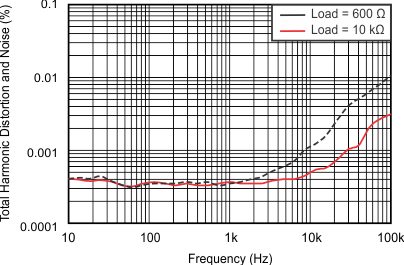

Figure 23. THD+N vs Frequency
OPA320-Q1 OPA2320-Q1 tc_sr-vs_slos884.gif
C(L) = 50 pF
Figure 25. Slew Rate vs Supply Voltage
OPA320-Q1 OPA2320-Q1 tc_sm_step_neg_slos884.gif
VS = ±2.75 V, G = –1 V/V, VI = 100 mVPP
Figure 27. Small-Signal Step Response
OPA320-Q1 OPA2320-Q1 tc_histo_voff_drift_slos884.gif
Figure 2. Offset Voltage Drift Distribution
OPA320-Q1 OPA2320-Q1 tc_oloop_g_ph-frq_slos884.gif
VS = ±2.5 V, C(L) = 50 pF
Figure 4. Open-Loop Gain and Phase vs Frequency
OPA320-Q1 OPA2320-Q1 tc_iq-vs_slos884.gif
Figure 6. Quiescent Current vs Supply Voltage
OPA320-Q1 OPA2320-Q1 tc_ibc-vcm_slos884.gif
Figure 8. Input Bias Current vs Common-Mode Voltage
OPA320-Q1 OPA2320-Q1 tc_ibc-tmp_slos884.gif
Figure 10. Input Bias Current vs Temperature
OPA320-Q1 OPA2320-Q1 tc_cmrr_psrr-tmp_slos884.gif
VS = 1.8 to 5.5 V

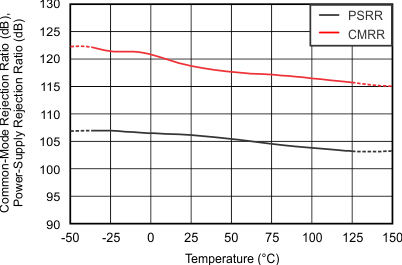

Figure 12. CMRR and PSRR vs Temperature
OPA320-Q1 OPA2320-Q1 tc_vin_noise_slos884.gif
Figure 14. 0.1-Hz to 10-Hz Input Voltage Noise
OPA320-Q1 OPA2320-Q1 tc_cloop-frq_55v_slos884.gif
VS = 5.5 V, C(L) = 50 pF, R(L) = 10 kΩ

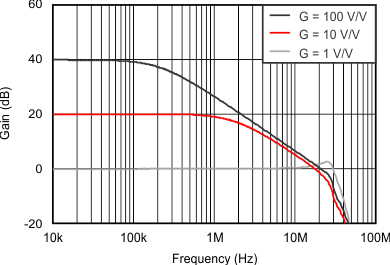

Figure 16. Closed-Loop Gain vs Frequency
OPA320-Q1 OPA2320-Q1 tc_vo-io_slos884.gif
VS = ±2.75 V

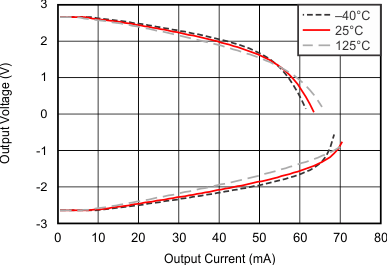

Figure 18. Output Voltage Swing vs Output Current
OPA320-Q1 OPA2320-Q1 tc_oshoot-cl_slos884.gif
Figure 20. Small-Signal Overshoot vs Load Capacitance
OPA320-Q1 OPA2320-Q1 tc_thdn-frq_2vin_slos884.gif
VS = ±2.5 V, f = 10 kHz, G = 1 V/V, VI = 2 VPP

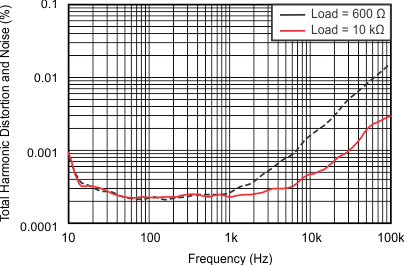

Figure 22. THD+N vs Frequency
OPA320-Q1 OPA2320-Q1 tc_ch_sep-frq_slos884.gif
VS = ±2.75 V
Figure 24. Channel Separation vs Frequency
OPA320-Q1 OPA2320-Q1 tc_sm_step_pos_slos884.gif
VS = ±2.75 V, G = 1 V/V, VI = 100 mVPP
Figure 26. Small-Signal Step Response
OPA320-Q1 OPA2320-Q1 tc_lg_step_resp_slos884.gif
VS = ±2.75 V, G = 1 V/V, VI = 2 VPP

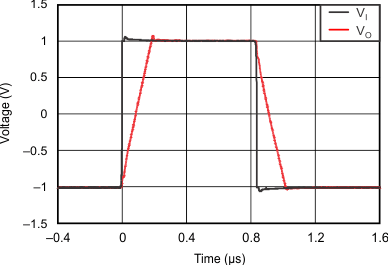

Figure 28. Large-Signal Step Response vs Time
