Pin Configuration and Functions

OPA187: DBV Package
5-Pin SOT-23
Top View
OPA187 OPA2187 OPA4187 DAPPER_Single_SOT23.gif
OPA187: D and DGK Packages
8-Pin SOIC and 8-pin VSSOP
Top View
OPA187 OPA2187 OPA4187 DAPPER_Single_DIP.gif
NC denotes no internal connection.

Pin Functions: OPA187

PIN I/O DESCRIPTION
NAME DBV D and DGK
+IN 3 3 I Non-inverting input
–IN 4 2 I Inverting input
NC 1, 5, 8 No connection (can be left floating)
OUT 1 6 O Output signal
V+ 5 7 Positive (highest) supply voltage
V– 2 4 Negative (lowest) supply voltage
OPA2187: D and DGK Packages
8-Pin SOIC and 8-Pin VSSOP
Top View
OPA187 OPA2187 OPA4187 DAPPER_Dual_DIP.gif

Pin Functions: OPA2187

PIN I/O DESCRIPTION
NAME D and DGK
+IN A 3 I Non-inverting input, channel A
–IN A 2 I Inverting input, channel A
+IN B 5 I Non-inverting input, channel B
–IN B 6 I Inverting input, channel B
OUT A 1 O Output, channel A
OUT B 7 O Output, channel B
V+ 8 Positive (highest) supply voltage
V– 4 Negative (lowest) supply voltage
OPA4187: D and PW Packages
14-pin SOIC and 14-Pin TSSOP
Top View

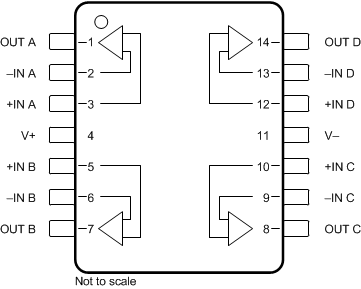

OPA187 OPA2187 OPA4187 DAPPER_Quad_DIP.gif
OPA4187: RUM Package (Preview)
16-pin WQFN
Top View

Pin Functions: OPA4187

PIN I/O DESCRIPTION
NAME D and PW RUM
+IN A 3 2 I Non-inverting input, channel A
–IN A 2 1 I Inverting input, channel A
+IN B 5 4 I Non-inverting input, channel B
–IN B 6 5 I Inverting input, channel B
+IN C 10 9 I Non-inverting input, channel C
–IN C 9 8 I Inverting input, channel C
+IN D 12 11 I Non-inverting input, channel D
–IN D 13 12 I Inverting input, channel D
OUT A 1 15 O Output, channel A
OUT B 7 6 O Output, channel B
OUT C 8 7 O Output, channel C
OUT D 14 14 O Output, channel D
V+ 4 3 Positive (highest) supply voltage
V– 11 10 Negative (lowest) supply voltage
NC 13, 16 No internal connection (can be left floating)
