Typical Characteristics

at TA = 25°C, VS = ±18 V, RL = 2 kΩ connected to midsupply, and VCM = VOUT = midsupply (unless otherwise noted)

Table 6-1 Table of Graphs
DESCRIPTION FIGURE
Offset Voltage Production Distribution Figure 6-1
Offset Voltage Drift Distribution Figure 6-2
Offset Voltage vs Common-Mode Voltage (Maximum Supply) Figure 6-3
Input Offset Voltage vs Temperature Figure 6-4
IB vs Common-Mode Voltage Figure 6-5
Output Voltage Swing vs Output Current Figure 6-6
CMRR and PSRR vs Frequency (RTI) Figure 6-7
Common-Mode Rejection Ratio vs Temperature Figure 6-8
0.1-Hz to 10-Hz Noise Figure 6-9
Input Voltage Noise Density vs Frequency Figure 6-10
THD+N Ratio vs Frequency (80-kHz AP Bandwidth) Figure 6-11
THD+N Ratio vs Output Amplitude Figure 6-12
Quiescent Current vs Temperature Figure 6-13
Quiescent Current vs Supply Voltage Figure 6-14
Gain and Phase vs Frequency Figure 6-15
Closed-Loop Gain vs Frequency Figure 6-16
Open-Loop Gain vs Temperature Figure 6-17
Open-Loop Output Impedance vs Frequency Figure 6-18
Small-Signal Overshoot vs Capacitive Load (G = 1) Figure 6-19
Small-Signal Overshoot vs Capacitive Load (G = –1) Figure 6-20
No Phase Reversal Figure 6-21
Maximum Output Voltage vs Frequency Figure 6-22
Positive Overload Recovery Figure 6-23
Negative Overload Recovery Figure 6-24
Large-Signal Positive and Negative Settling Time Figure 6-25,
Figure 6-26
Small-Signal Step Response (G = 1) Figure 6-27
Small-Signal Step Response (G = –1) Figure 6-28
Large-Signal Step Response (G = 1) Figure 6-29
Large-Signal Step Response (G = –1) Figure 6-30
Short-Circuit Current vs Temperature Figure 6-31
Channel Separation vs Frequency Figure 6-32

Figure 6-1 Offset Voltage Production Distribution

Figure 6-3 Offset Voltage vs Common-Mode Voltage

Figure 6-5 IB vs Common-Mode Voltage

Figure 6-7 CMRR and PSRR vs Frequency (Referred to Input)

Figure 6-9 0.1-Hz to 10-Hz Noise

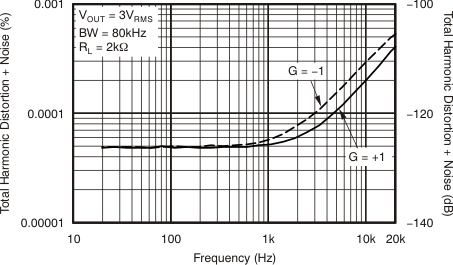

Figure 6-11 THD+N Ratio vs Frequency

Figure 6-13 Quiescent Current vs Temperature

Figure 6-15 Gain and Phase vs Frequency

Figure 6-17 Open-Loop Gain vs Temperature

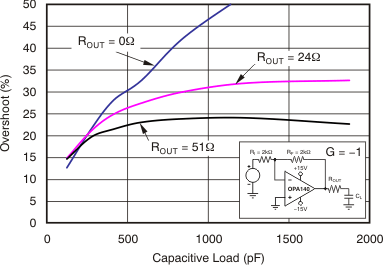

Figure 6-19 Small-Signal Overshoot vs Capacitive Load (100‑mV Output Step)


Figure 6-21 No Phase Reversal

Figure 6-23 Positive Overload Recovery

Figure 6-25 Large-Signal Positive Settling Time (10-V Step)

Figure 6-27 Small-Signal Step Response (100 mV)

Figure 6-29 Large-Signal Step Response

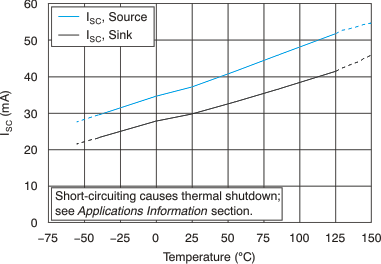

Figure 6-31 Short Circuit Current vs Temperature

Figure 6-2 Offset Voltage Drift Distribution

Figure 6-4 Input Offset Voltage vs Temperature (144 Amplifiers)

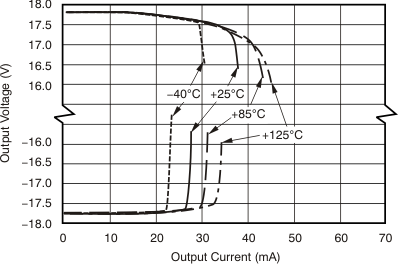

Figure 6-6 Output Voltage Swing vs Output Current (Maximum Supply)

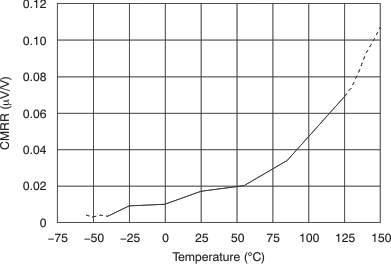

Figure 6-8 Common-Mode Rejection Ratio vs Temperature

Figure 6-10 Input Voltage Noise Density vs Frequency

Figure 6-12 THD+N Ratio vs Output Amplitude

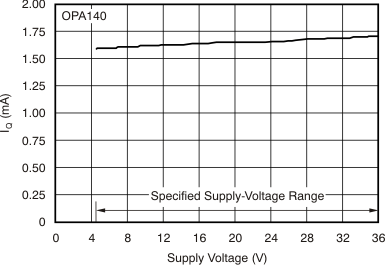

Figure 6-14 Quiescent Current vs Supply Voltage

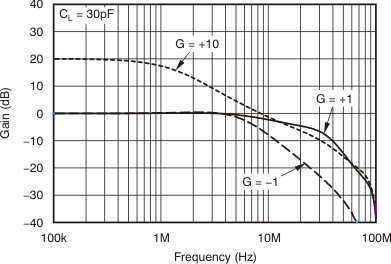

Figure 6-16 Closed-Loop Gain vs Frequency

Figure 6-18 Open-Loop Output Impedance vs Frequency

Figure 6-20 Small-Signal Overshoot vs Capacitive Load (100‑mV Output Step)

Figure 6-22 Maximum Output Voltage vs Frequency

Figure 6-24 Negative Overload Recovery

Figure 6-26 Large-Signal Negative Settling Time (10-V Step)

Figure 6-28 Small-Signal Step Response (100 mV)

Figure 6-30 Large-Signal Step Response

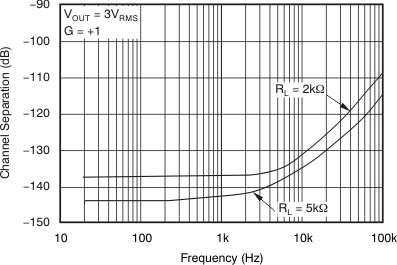

Figure 6-32 Channel Separation vs Frequency
