6.4 Typical Characteristics

Unless stated otherwise, all curves taken at VIN = 5 V with configuration in typical application circuit shown in Figure 14.
TJ = 25°C, unless otherwise specified.
LMR10520 30166396.gif
VIN = 5 V VOUT = 1.8 V and 3.3 V
Figure 1. Efficiency vs Load "X"
LMR10520 30166398.gif
VIN = 3.3 V VOUT = 1.8 V
Figure 3. Efficiency vs Load "X" and "Y"
LMR10520 30166336.gif
Figure 5. Oscillator Frequency vs Temperature - "Y"
LMR10520 30166388.png
Figure 7. RDSON vs Temperature
LMR10520 30166337.gif
Figure 9. LMR10520Y IQ (Quiescent Current)
LMR10520 30166356.png
VIN = 5 V VOUT = 1.2 V at 1 A
Figure 11. Gain vs Frequency
LMR10520 30166397.gif
VIN = 5 V VOUT = 1.8 V and 3.3 V
Figure 2. Efficiency vs Load "Y"
LMR10520 30166324.gif
Figure 4. Oscillator Frequency vs Temperature - "X"
LMR10520 30166386.gif
VIN = 3.3 V
Figure 6. Current Limit vs Temperature
LMR10520 30166328.gif
Figure 8. LMR10520X IQ (Quiescent Current)
LMR10520 30166327.gif
Figure 10. VFB vs Temperature

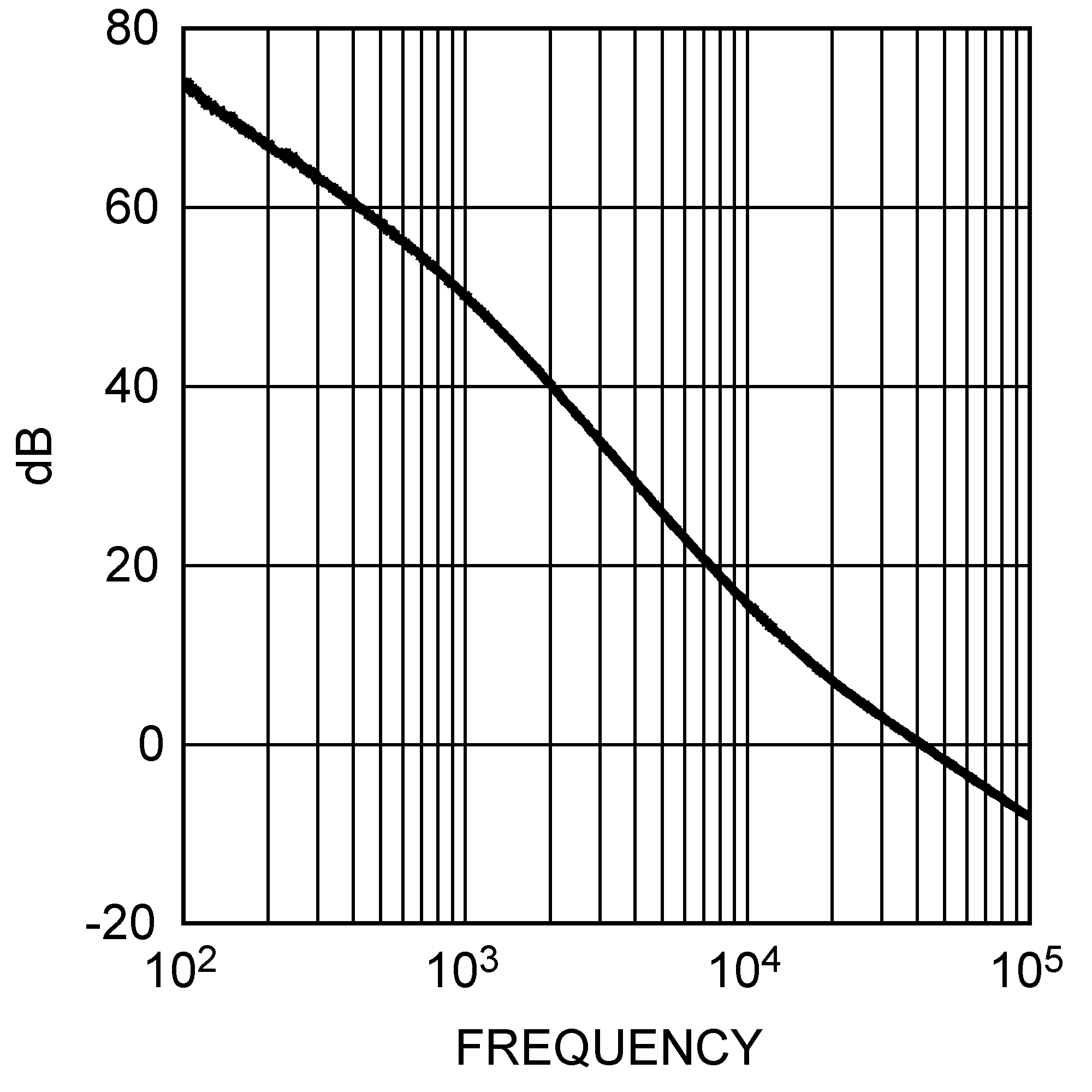

LMR10520 30166357.png
VIN = 5 V VOUT = 1.2 V at 1 A
Figure 12. Phase Plot vs Frequency
