5 Pin Configuration and Functions

D Package
8 Pins
Top View
LMH6552 30003508.gif

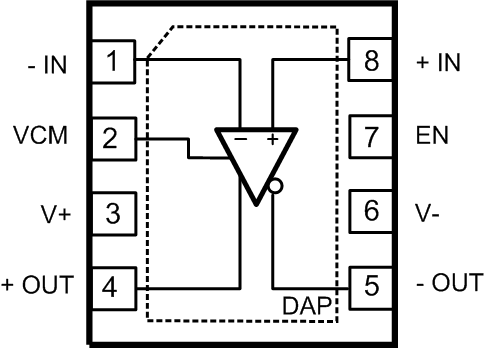

NGS Package
8 Pins
Top View
LMH6552 30003564.gif

Pin Functions

PIN DESCRIPTION
NAME NO.
EN 7 Enable
-IN 1 Negative Input
+IN 8 Positive Input
-OUT 5 Negative Output
+OUT 4 Positive Output
V- 6 Negative Supply
V+ 3 Positive Supply
VCM 2 Output Common Mode Control
DAP DAP Die Attach Pad (See Thermal Considerations for more information)
