6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage 3.1 V
Input voltage (all inputs) –0.3 VCC + 0.3 V
Junction temperature 125 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±6000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±2000 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

MIN NOM MAX UNIT
Supply voltage (VCC – VEE) 2.375 2.5 2.625 V
Input coupling capacitance 1 µF
Operating free-air temperature (TA) –40 25 85 °C

6.4 Thermal Information

THERMAL METRIC(1) LMH0394 UNIT
RUM (WQFN)
16 PINS
RθJA Junction-to-ambient thermal resistance 40 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 6 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 DC Electrical Characteristics

over supply voltage and operating temperature ranges, unless otherwise specified(1)(2).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIH Input voltage high level Logic inputs 1.7 VCC V
VIL Input voltage low level Logic inputs VEE 0.7 V
VSDI Input voltage swing 0m cable length(3) (SDI) 720 800 880 mVP−P
VCMIN Input common-mode voltage 1.65 V
VSSP-P Differential output voltage, P-P 100-Ω load, default register settings, Figure 1(4) (SDO, SDO) 500 700 900 mVP-P
VOD Differential output voltage 250 350 450 mV
ΔVOD Change in magnitude of VOD for complementary output states 50 mV
VOS Offset voltage 1.1 1.2 1.35 V
ΔVOS Change in magnitude of VOS for complementary output states 50 mV
IOS Output short circuit current 30 mA
MUTEREF MUTEREF DC voltage (floating) MUTEREF 1.3 V
MUTERNG MUTEREF range MUTEREF 0.8 V
VOH Output voltage high level IOH = -2 mA (CD, MISO) 2.0 V
VOL Output voltage low level IOL = +2 mA (CD, MISO) 0.2 V
ICC Supply current Normal operation(5) 45 65 mA
Power-save mode 7 10 mA
(1) Current flow into device pins is defined as positive. Current flow out of device pins is defined as negative. All voltages are stated referenced to VEE = 0 Volts.
(2) Typical values are stated for VCC = 2.5 V and TA = 25°C.
(3) The LMH0394 can be optimized for different launch amplitudes through the SPI.
(4) The differential output voltage and offset voltage are adjustable through the SPI.
(5) Typical ICC is measured with a 2.97 Gbps input signal.

6.6 AC Electrical Characteristics

over supply voltage and operating temperature ranges, unless otherwise specified(1).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
BRMIN Minimum input data rate SDI, SDI 125 Mbps
BRMAX Maximum input data rate SDI, SDI 2970 Mbps
TJRAW Jitter for various cable lengths 2.97 Gbps, Belden 1694A,
0-100 meters(2)		 0.2 UI
2.97 Gbps, Belden 1694A,
100-140 meters(2)		 0.3 UI
2.97 Gbps, Belden 1694A,
140-180 meters(2)		 0.5 UI
2.97 Gbps, Belden 1694A,
180-200 meters		 0.55 UI
1.485 Gbps, Belden 1694A,
0-200 meters(2)		 0.2 UI
1.485 Gbps, Belden 1694A,
200-220 meters		 0.3 UI
270 Mbps, Belden 1694A,
0-400 meters(2)		 0.3 UI
tR, tF Output rise time, fall time SDO, SDO, 20% – 80%, and 100-Ω load Figure 1(3) 90 130 ps
ΔTR_F Mismatch in rise / fall time SDO, SDO  (3) 2 15 ps
tOS Output overshoot  SDO, SDO(3) 1% 5%
RLIN Input return loss 5 MHz - 1.5 GHz(4) SDI or SDI 15 dB
1.5 GHz - 3.0 GHz(4) SDI or SDI 10 dB
RIN Input resistance single-ended SDI or SDI 1.5 kΩ
CIN Input capacitance single-ended SDI or SDI 0.7 pF
(1) Typical values are stated for VCC = 2.5 V and TA = 25°C.
(2) Based on design and characterization data over the full range of recommended operating conditions of the device. Jitter is measured in accordance with ST RP 184, ST RP 192, and the applicable serial data transmission standard: ST 424, ST 292, or ST 259.
(3) Specification is ensured by characterization.
(4) Input return loss is dependent on board design. The LMH0394 exceeds this specification on the SD394EVK evaluation board with a return loss network consisting of a 5.6-nH inductor in parallel with a 75-Ω series resistor on the input.

6.7 SPI Interface AC Electrical Characteristics

over supply voltage and operating temperature ranges, unless otherwise specified(1).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Recommended Input Timing Requirements
fSCK SCK frequency 20 MHz
tPH SCK pulse width high See Figure 2 and Figure 3 40 % SCK period
tPL SCK pulse width low 40 % SCK period
tSU MOSI set-up time See Figure 2Figure 3 4 ns
tH MOSI hold time 4 ns
tSSSU SS set-up time See Figure 2 and Figure 3 14 ns
tSSH SS hold time 4 ns
tSSOF SS OFF-time 1 SCK period
Switching Characteristics
tODZ MISO driven-to-TRI-STATE time See Figure 3 20 ns
tOZD MISO TRI-STATE-to-driven time 10 ns
tOD MISO output delay time 15 ns
(1) Typical values are stated for VCC = 2.5 V and TA = 25°C.
(2) Due to SMPTE naming convention, all SMPTE Engineering Documents will be numbered as a two-letter prefix and a number. Documents and references with the same root number and year are functionally identical; for example ST 424-2006 and SMPTE 424M-2006 refer to the same document.

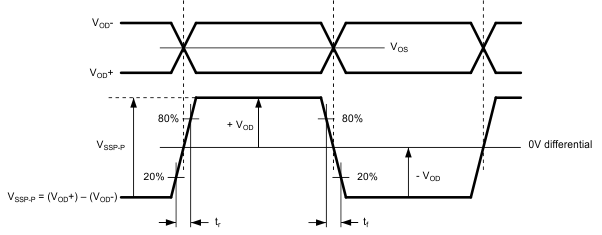

LMH0394 30101508.gifFigure 1. LVDS Output Voltage, Offset, and Timing Parameters

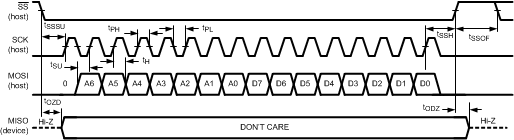

LMH0394 30101509.gifFigure 2. SPI Write
LMH0394 30101510.gifFigure 3. SPI Read

6.8 Typical Characteristics

LMH0394 161m_3G_curve.gif
Figure 4. Differential Serial Data Output After Equalizing 161 Meters of Belden 1694A at 2.97 Gbps, PRBS10 Pattern
LMH0394 400m_SD_curve.gif
Figure 5. Differential Serial Data Output After Equalizing 400 Meters of Belden 1694A at 270 Mbps, PRBS10 Pattern
