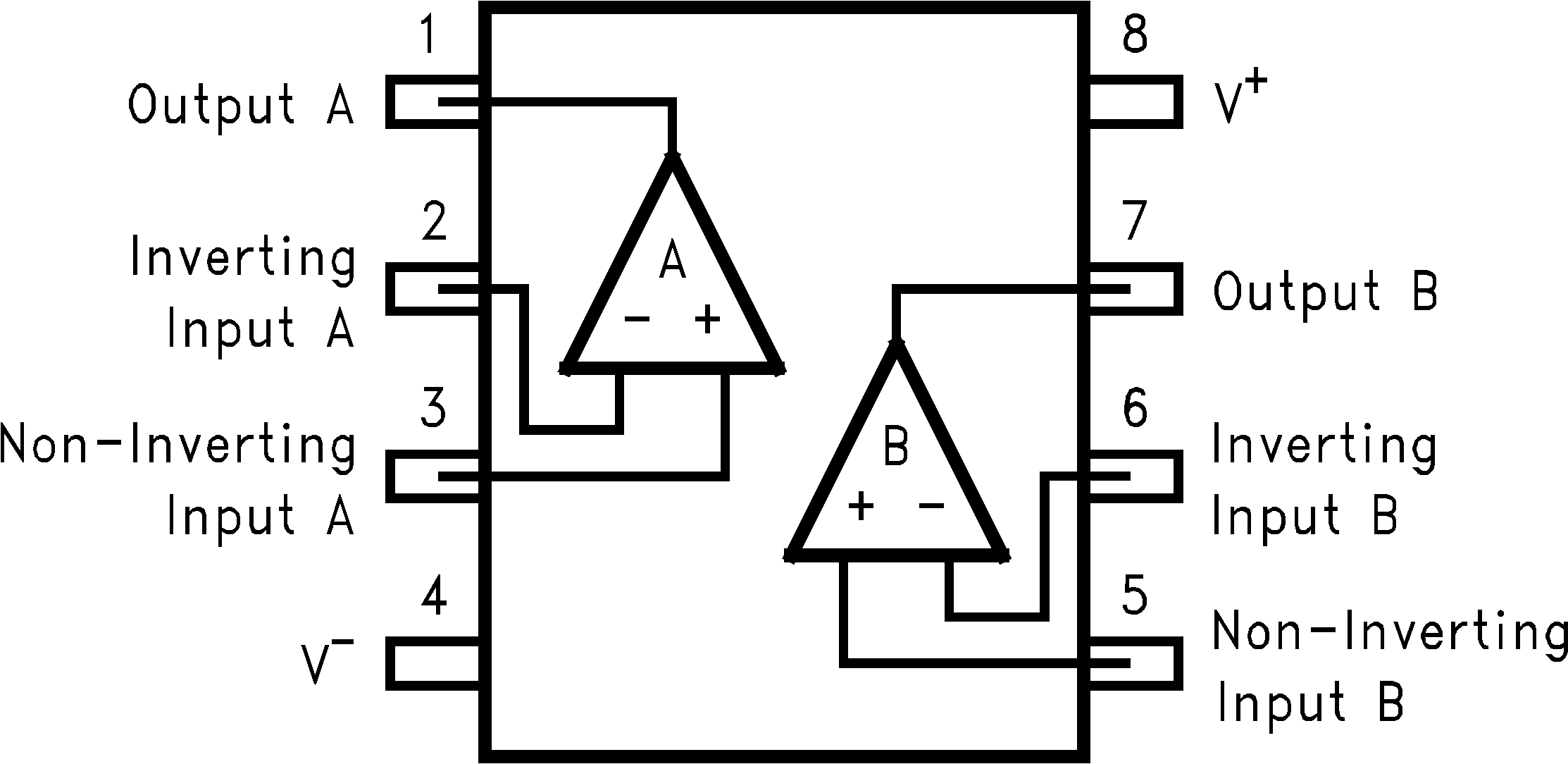

5 Pin Configuration and Functions

8-Pin VSSOP
Top View
LM8272 10130863.png

Pin Functions

PIN I/O DESCRIPTION
NUMBER NAME
1 OUT A O Output A
2 -IN A I Inverting Input A
3 +IN A I Non-Inverting Input A
4 V- I Negative Supply
5 +IN B I Non-Inverting Input B
6 -IN B I Inverting Input B
7 OUT B O Output B
8 V+ I Positive Supply
