9.2.3 Application Curves

VOUT = 3.3 V FSW = 400 kHz Auto Mode

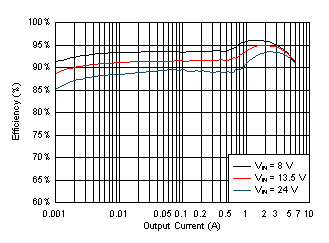

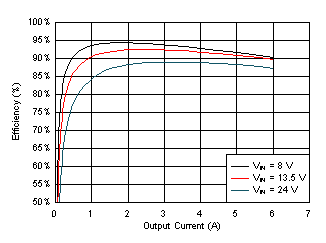

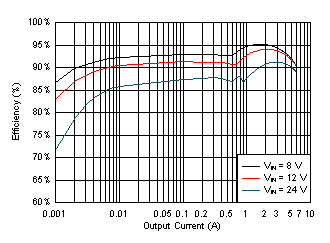

Figure 9-5 LM61460 Efficiency
VOUT = 3.3 V FSW = 1000 kHz Auto mode
Figure 9-7 LM61460 Efficiency
VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 9-9 LM61460 Efficiency
VOUT = 5 V FSW = 400 kHz Auto mode

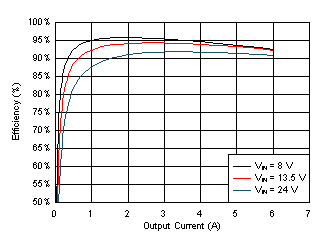

Figure 9-11 LM61460 Efficiency
VOUT = 5 V FSW = 1000 kHz Auto mode
Figure 9-13 LM61460 Efficiency
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 9-15 LM61460 Efficiency
VOUT = 3.3 V FSW = 400 kHz Auto Mode
Figure 9-17 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 1000 kHz Auto mode
Figure 9-19 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 9-21 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 400 kHz Auto mode

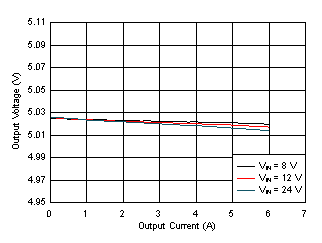

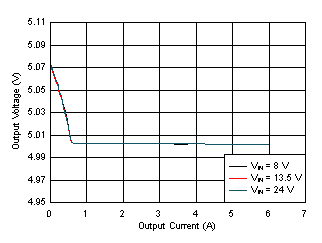

Figure 9-23 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 1000 kHz Auto mode
Figure 9-25 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 9-27 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 400 kHz Auto mode
Figure 9-29 LM61460 Dropout Curve
VOUT = 5 V FSW = 400 kHz Auto mode
Figure 9-31 Dropout Curve
VOUT = 3.3 V FSW = 400 kHz Auto mode
Figure 9-33 LM61460 Frequency Dropout
VOUT = 5 V FSW = 400 kHz Auto mode
Figure 9-35 LM61460 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 50 mA VIN = 13.5 V

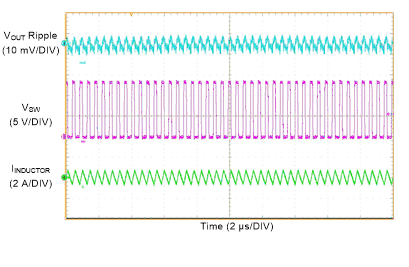

Figure 9-37 LM61460 Switching Waveform and VOUT Ripple
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-39 LM61460 Start-up with 50-mA Load
VOUT = 3.3 V FSW = 2100 kHz FPWM mode
IOUT = 3.25 A VIN = 13.5 V

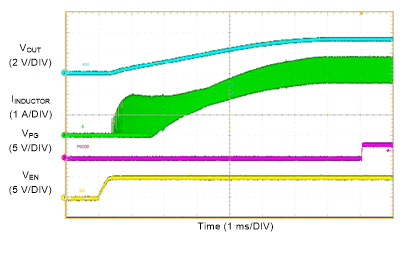

Figure 9-41 LM61460 Start-up with 3.25-A
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = Short Circuit to 5 A VIN = 13.5 V
Figure 9-43 LM61460 Short Circuit Recovery
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 4 A VIN = 13.5 V to 4 V to 13.5 V

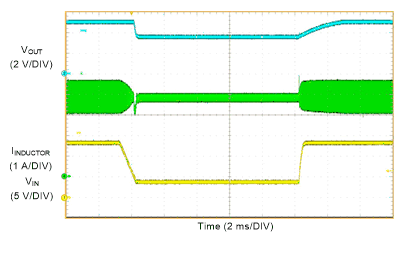

Figure 9-45 Graceful Recovery from Dropout
VOUT = 5 V FSW = 400 kHz FPWM mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs

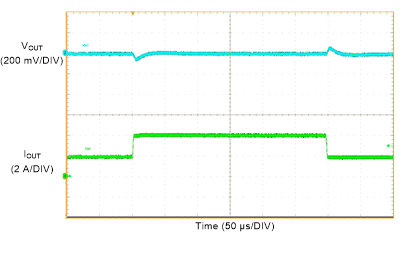

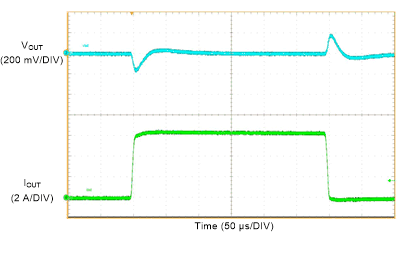

Figure 9-47 LM61460 Load Transient
VOUT = 5 V FSW = 400 kHz Auto mode
IOUT = 50 mA to 6 A to 50 mA VIN = 13.5 V TR = TF = 6 µs
Figure 9-49 LM61460 Load Transient
VOUT = 3.3 V FSW = 400 kHz Auto mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2 µs
Figure 9-51 LM61460 Load Transient
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-53 LM61460 Load Transient
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz

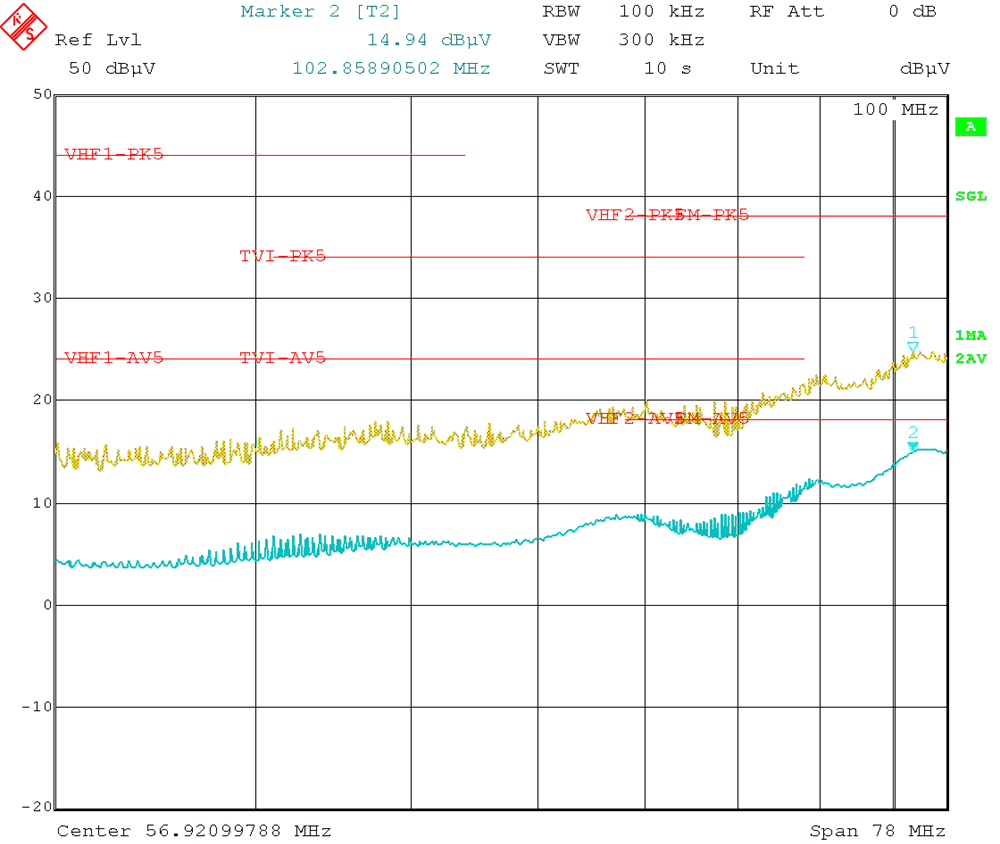

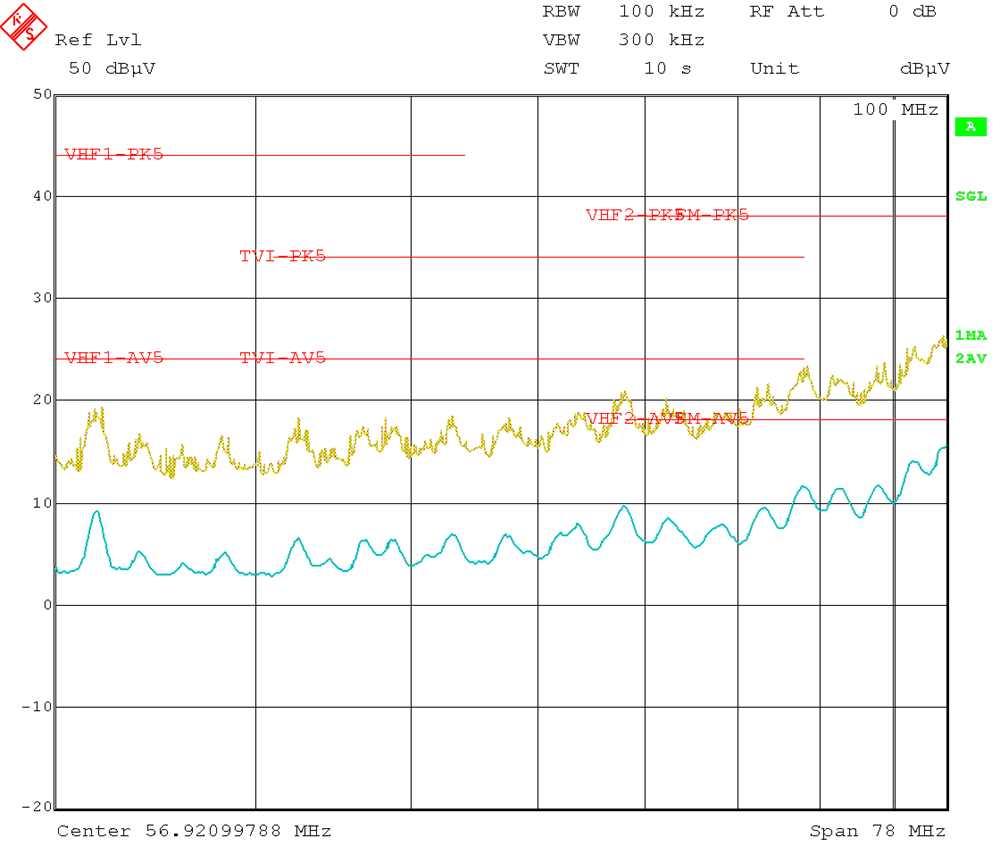

Figure 9-55 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 9-57 Radiated EMI Bicon Vertical versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 9-59 Radiated EMI Log Vertical versus CISPR25 Limits




FSW = 400 kHz Note: Measurements taken with LM61460EVM
Figure 9-61 Recommended Input EMI Filter
FSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 9-63 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 3.3 V FSW = 400 kHz FPWM mode
Figure 9-6 LM61460 Efficiency
VOUT = 3.3 V FSW = 1000 kHz FPWM mode
Figure 9-8 LM61460 Efficiency
VOUT = 3.3 V FSW = 2100 kHz FPWM mode
Figure 9-10 LM61460 Efficiency
VOUT = 5 V FSW = 400 kHz FPWM mode
Figure 9-12 LM61460 Efficiency
VOUT = 5 V FSW = 1000 kHz FPWM mode
Figure 9-14 LM61460 Efficiency
VOUT = 5 V FSW = 2100 kHz FPWM mode
Figure 9-16 LM61460 Efficiency
VOUT = 3.3 V FSW = 400 kHz FPWM mode
Figure 9-18 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 1000 kHz FPWM mode
Figure 9-20 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz FPWM mode
Figure 9-22 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 400 kHz FPWM mode

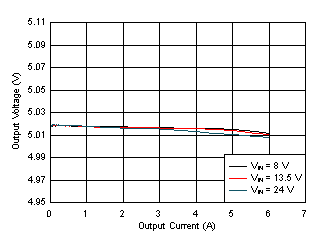

Figure 9-24 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 1000 kHz FPWM mode
Figure 9-26 LM61460 Load and Line Regulation
VOUT = 5 V FSW = 2100 kHz FPWM mode

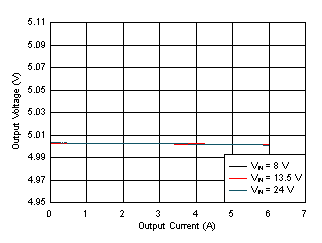

Figure 9-28 LM61460 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 9-30 LM61460 Dropout Curve
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 9-32 LM61460 Dropout Curve
VOUT = 3.3 V FSW = 2100 kHz Auto mode

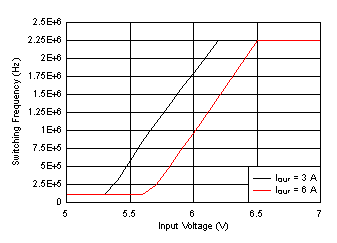

Figure 9-34 LM61460 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 9-36 LM61460 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-38 LM61460 Switching Waveform and VOUT Ripple
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 50 mA VIN = 13.5 V

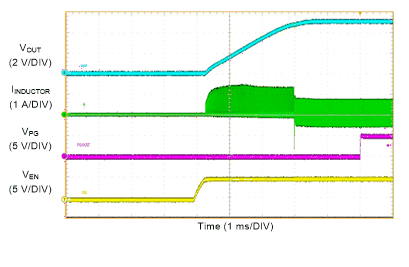

Figure 9-40 LM61460 Start-up with 50-mA
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 5 A to Short Circuit VIN = 13.5 V
Figure 9-42 LM61460 Short Circuit Protection
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = Short Circuit VIN = 13.5 V
Figure 9-44 LM61460 Short Circuit Performance
VOUT = 5 V FSW = 400 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-46 LM61460 Load Transient
VOUT = 5 V FSW = 400 kHz Auto mode
IOUT = 2 A to 5 A to 2 A VIN = 13.5 V TR = TF = 3 µs
Figure 9-48 LM61460 Load Transient
VOUT = 3.3 V FSW = 400 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-50 LM61460 Load Transient
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-52 LM61460 Load Transient
FSW = 400 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz

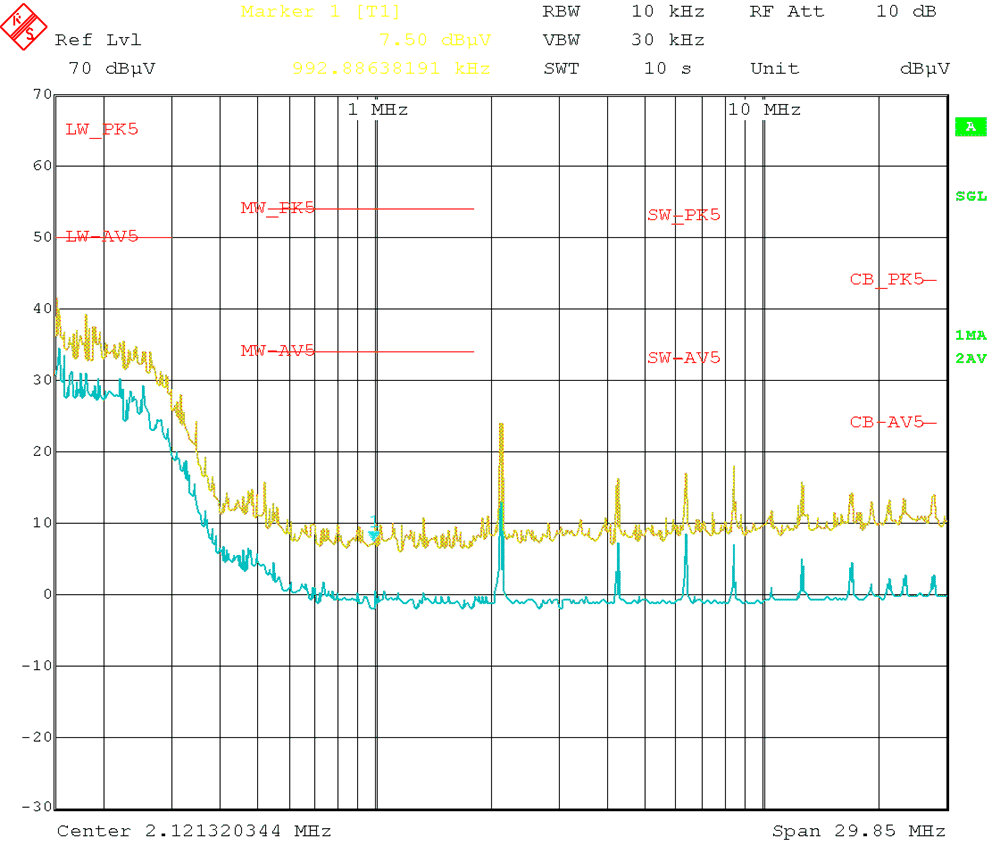

Figure 9-54 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz

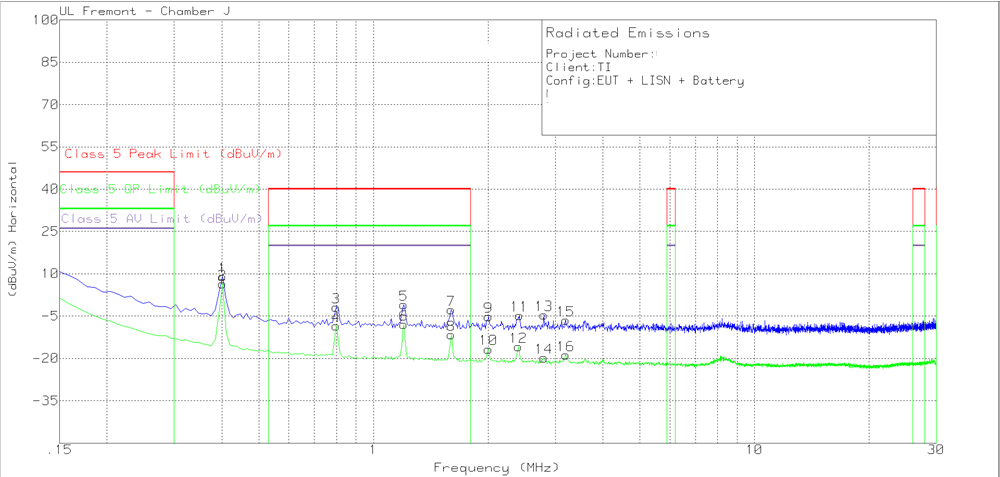

Figure 9-56 Radiated EMI Rod versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 9-58 Radiated EMI Bicon Horizontal versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 9-60 Radiated EMI Log Horizontal versus CISPR25 Limits
FSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz

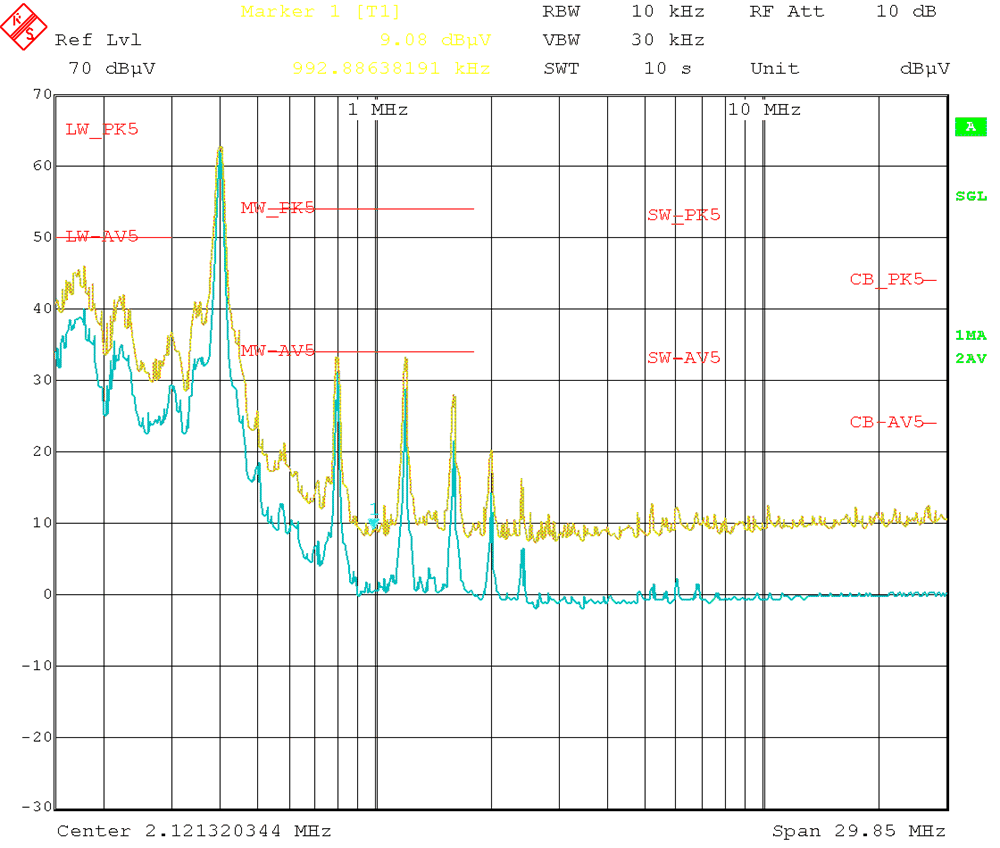

Figure 9-62 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
FSW = 2100 kHz
Figure 9-64 Recommended Input EMI Filter
Table 9-5 BOM for Typical Application Curves
VOUT FREQUENCY RFBB RT COUT CIN + CHF L CFF
3.3 V 400 kHz 43.2 kΩ 33.2 kΩ 6 × 22 µF 2 × 4.7 µF + 2 × 100 nF 4.7 µH (XHMI6060) 22 pF
3.3 V 1000 kHz 43.2 kΩ 13 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 2.2 µH (744-393-440-22) 22 pF
3.3 V 2100 kHz 43.2 kΩ 6.04 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1 µH (XEL5030) 22 pF
5 V 400 kHz 24.9 kΩ 33.2 kΩ 4 × 22 µF 2 × 4.7 µF + 2 × 100 nF 4.7 µH (XHMI6060) 22 pF
5 V 1000 kHz 24.9 kΩ 13 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 2.2 µH (744-393-440-22) 22 pF
5 V 2100 kHz 24.9 kΩ 6.04 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1 µH (XEL5030) 22 pF
