Typical Characteristics, LM2903B-Q1 Only

TA = 25°C, VS = 5 V, RPULLUP = 5.1k, CL = 15 pF, VCM = 0 V, VUNDERDRIVE = 100 mV, VOVERDRIVE = 100 mV unless otherwise noted.

GUID-20201103-CA0I-TVRB-3FPD-44H1KMKCTHHV-low.svgFigure 3-7 Total Supply Current vs. Supply Voltage

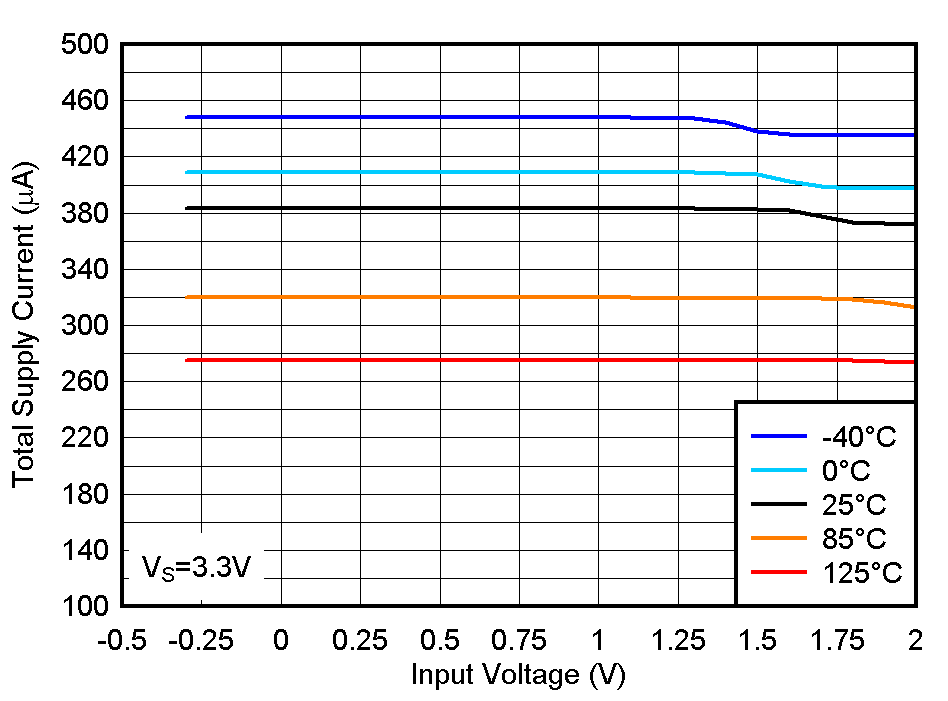

GUID-9AA774F2-9B46-47EA-993A-B78AFADB53B9-low.gifFigure 3-9 Total Supply Current vs. Input Voltage at 3.3V

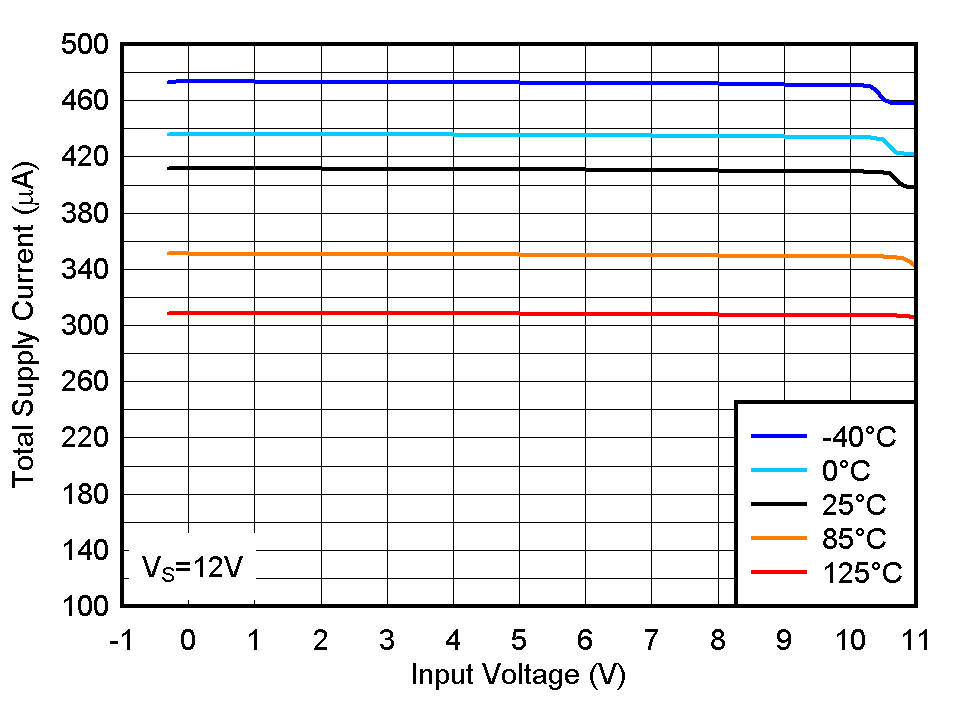

GUID-C514346E-B586-4F6A-B24E-4832F4147901-low.gifFigure 3-11 Total Supply Current vs. Input Voltage at 12V
GUID-8ED842DB-11EF-4976-A8C7-FA9B91F59A38-low.gifFigure 3-13 Input Offset Voltage vs. Temperature at 3V

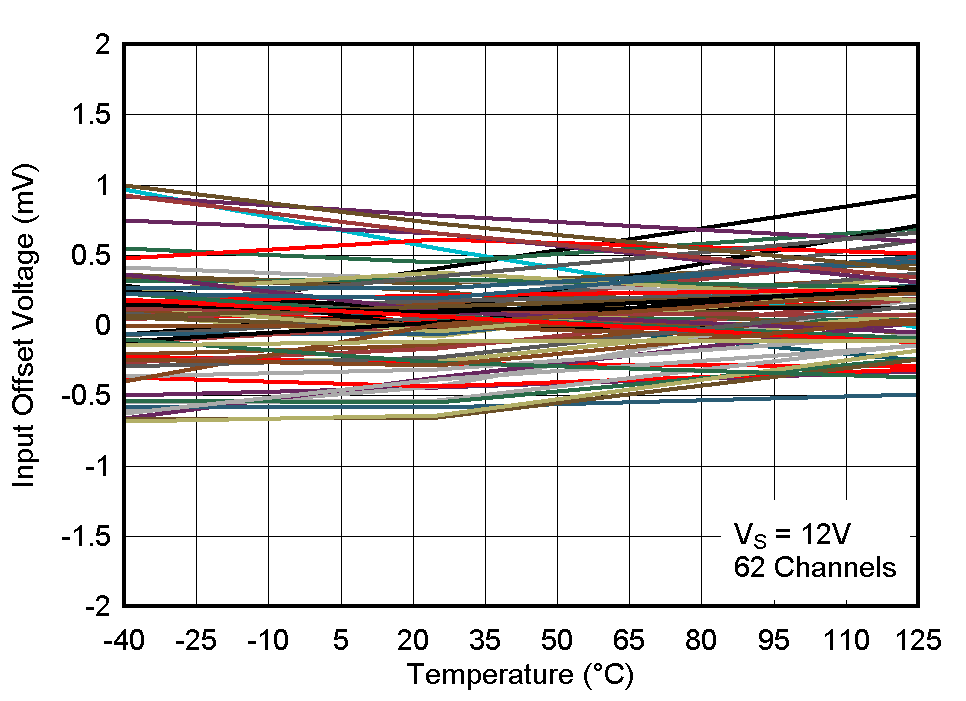

GUID-091DCEA6-C5B0-4621-B52D-D01AC2C25E97-low.gifFigure 3-15 Input Offset Voltage vs. Temperature at 12V

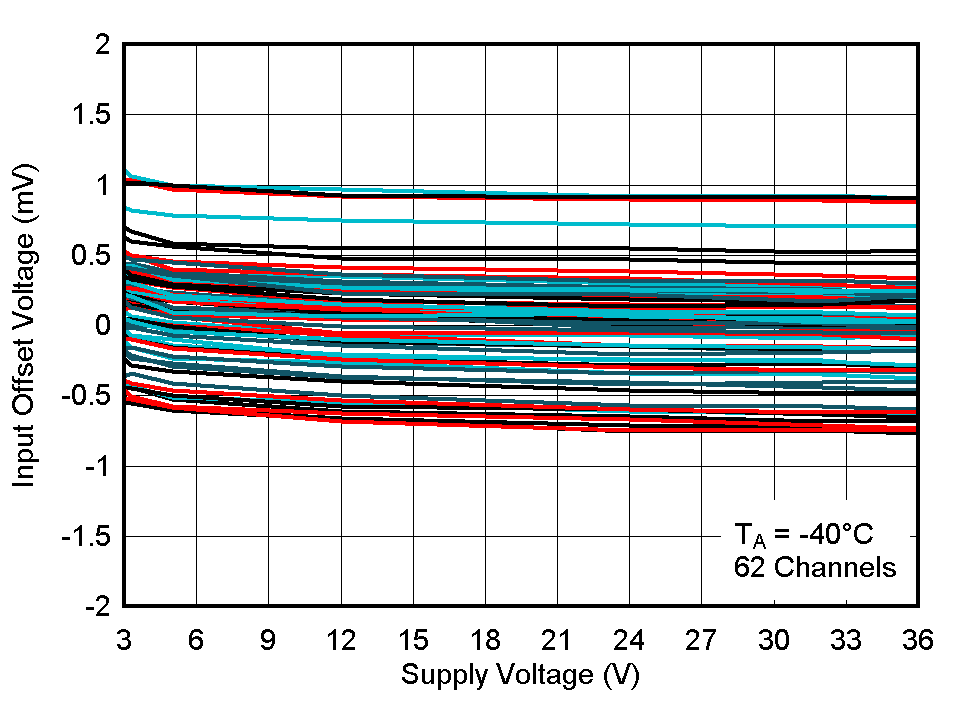

GUID-419AE2E5-E708-465B-A306-FAD39BA71009-low.gifFigure 3-17 Input Offset Voltage vs. Supply Voltage at -40°C

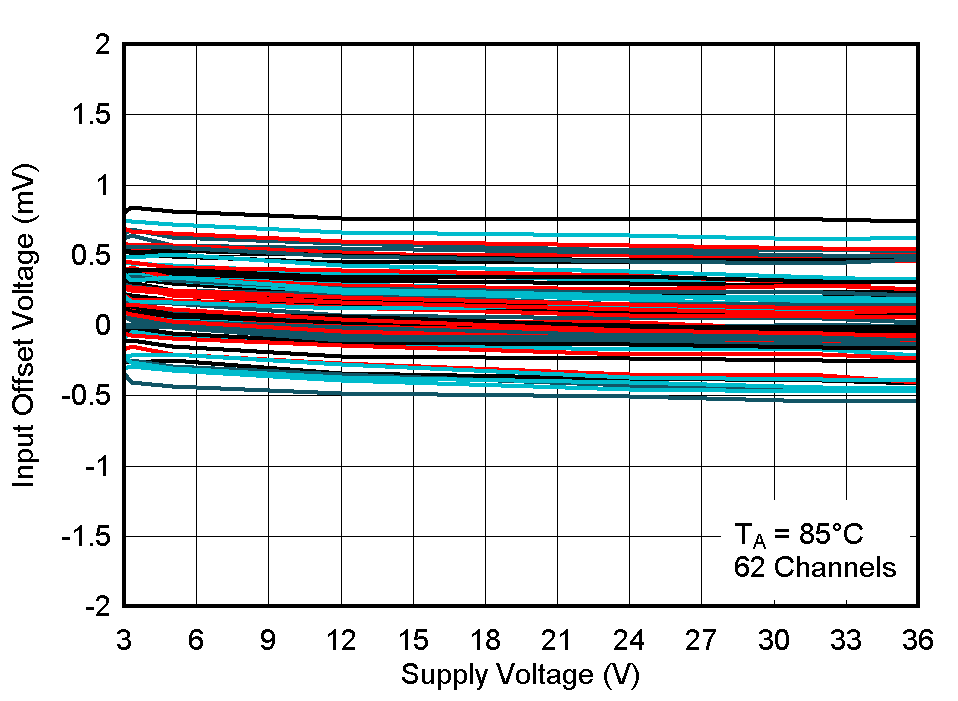

GUID-7C8F5ED0-A419-4650-95A6-868C689974C5-low.gifFigure 3-19 Input Offset Voltage vs. Supply Voltage at 85°C

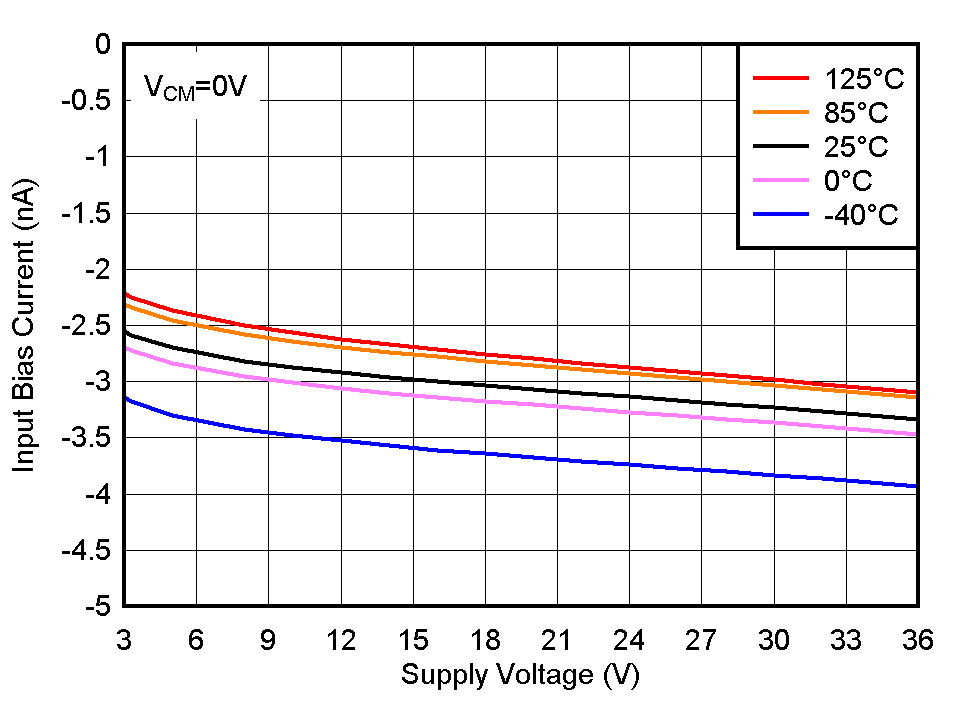

GUID-4B0A8554-388C-4A4C-BC4B-7278932F4F67-low.gifFigure 3-21 Input Bias Current vs. Supply Voltage
GUID-EA9B3D0F-1F12-4331-969C-FFCDCA4BC1EE-low.gifFigure 3-23 Input Bias Current vs. Input Voltage at 12V

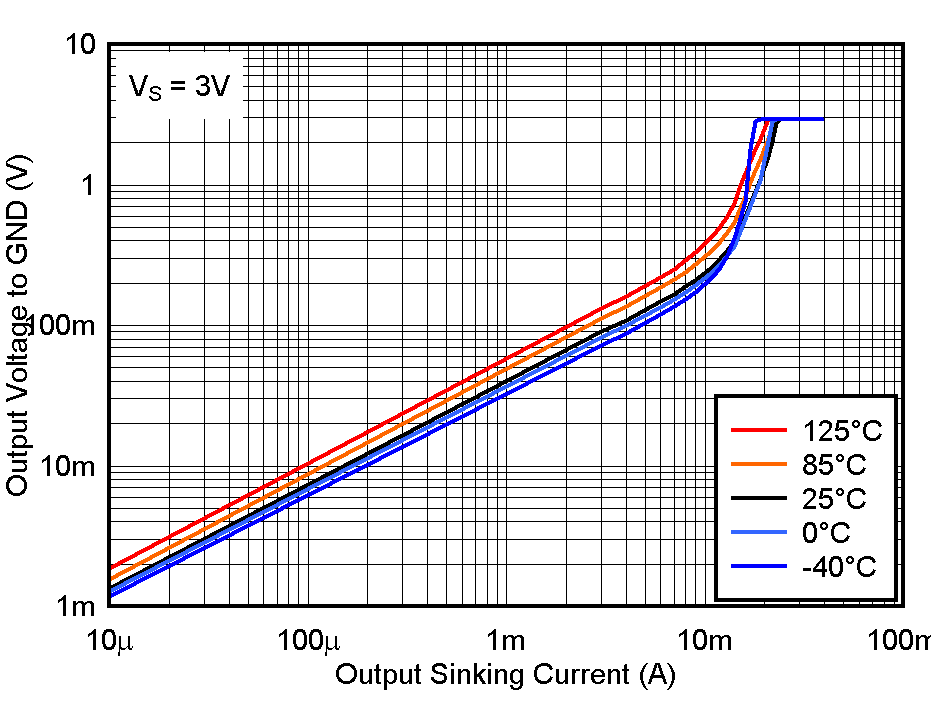

GUID-EE656172-8B08-403E-85AD-A9CAB151C399-low.gifFigure 3-25 Output Low Voltage vs. Output Sinking Current at 3V
GUID-2627B065-E981-4D6C-BBB8-D14A56607802-low.gifFigure 3-27 Output Low Voltage vs. Output Sinking Current at 12V

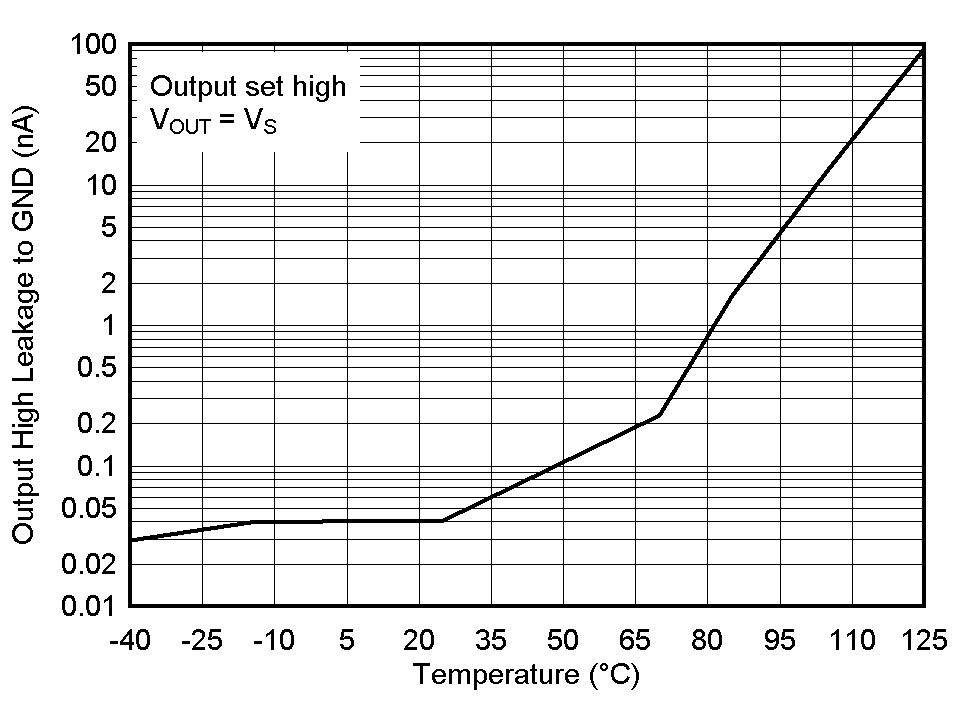

GUID-39C83B78-5854-4D32-B83B-C67E1EB62874-low.gifFigure 3-29 Output High Leakage Current vs.Temperature at 5V
GUID-3C1C9F0D-DE18-49EB-B547-98B24EBFD584-low.gifFigure 3-31 High to Low Propagation Delay vs. Input Overdrive Voltage, 5V

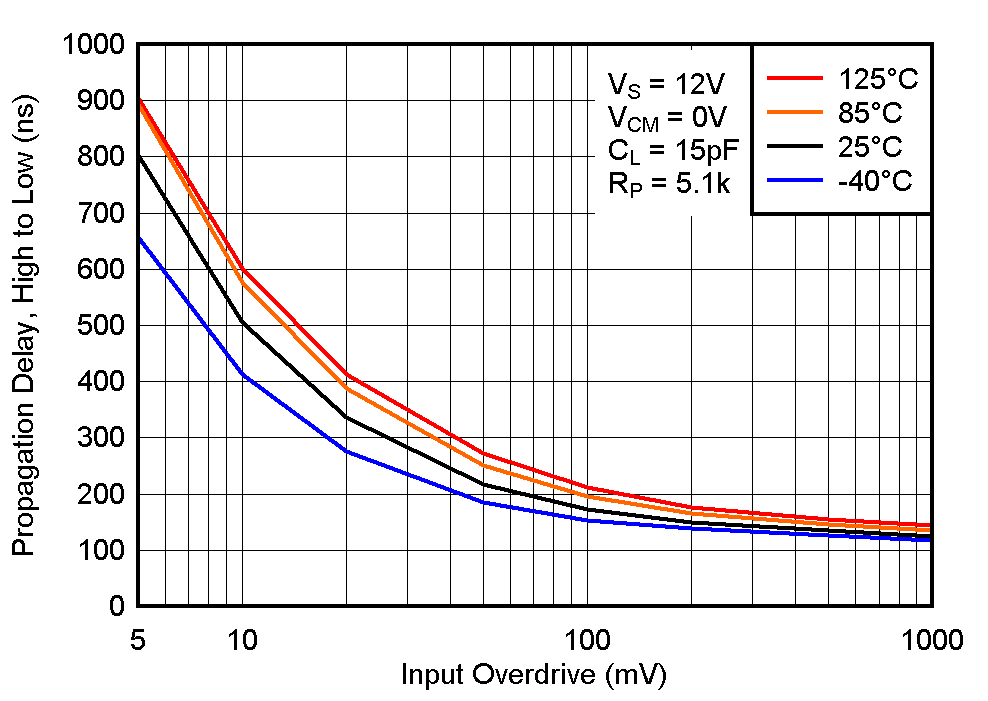

GUID-B2FF44A0-EF67-45C1-8547-3520BF5B2581-low.gifFigure 3-33 High to Low Propagation Delay vs. Input Overdrive Voltage, 12V
GUID-D2CD0D48-2733-48A9-8D6B-7DE5EC08F589-low.gifFigure 3-35 High to Low Propagation Delay vs. Input Overdrive Voltage, 36V

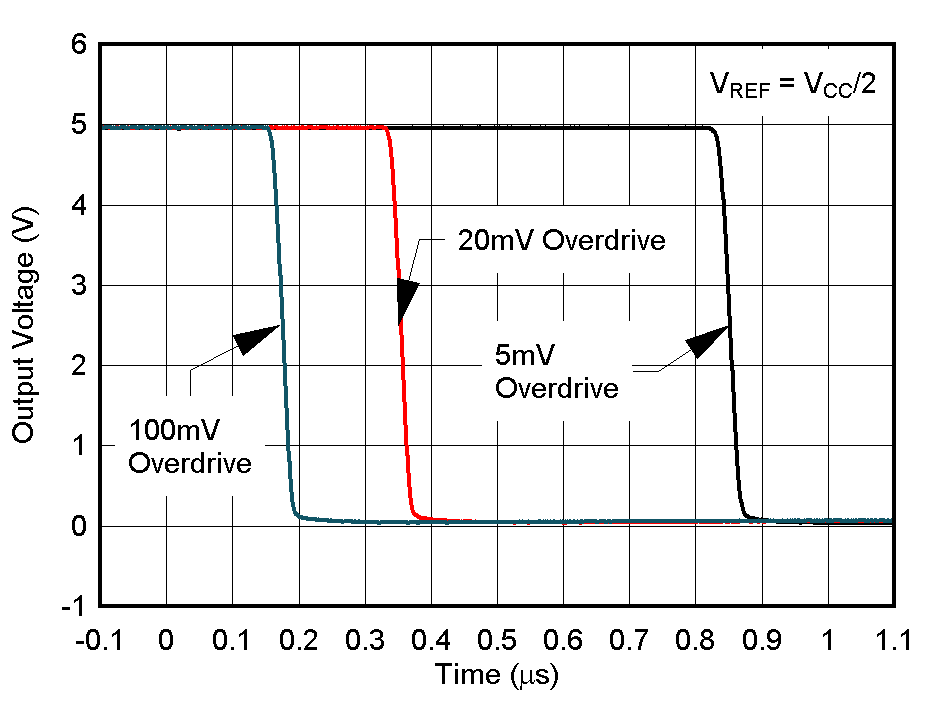

GUID-C971D278-CA6A-446A-83B5-208473BC1AD3-low.gifFigure 3-37 Response Time for Various Overdrives, High-to-Low Transition
GUID-A54152DD-DA2A-494F-8129-9431E14552D8-low.gifFigure 3-8 Total Supply Current vs. Input Voltage at 3V
GUID-FEDA848C-45D3-451F-8477-3F1D075156A5-low.gifFigure 3-10 Total Supply Current vs. Input Voltage at 5V
GUID-BD305B6F-3193-42DD-88DE-6FEC7A4E1605-low.gifFigure 3-12 Total Supply Current vs. Input Voltage at 36V

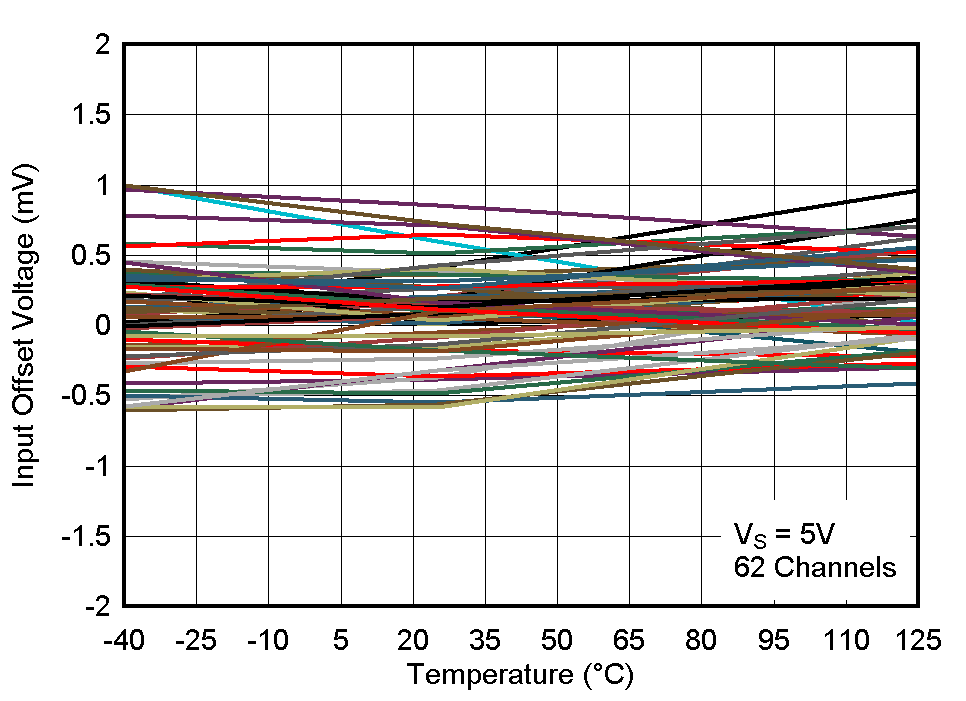

GUID-EADC8665-7CA6-4C8C-B85F-783628BC37F1-low.gifFigure 3-14 Input Offset Voltage vs. Temperature at 5V

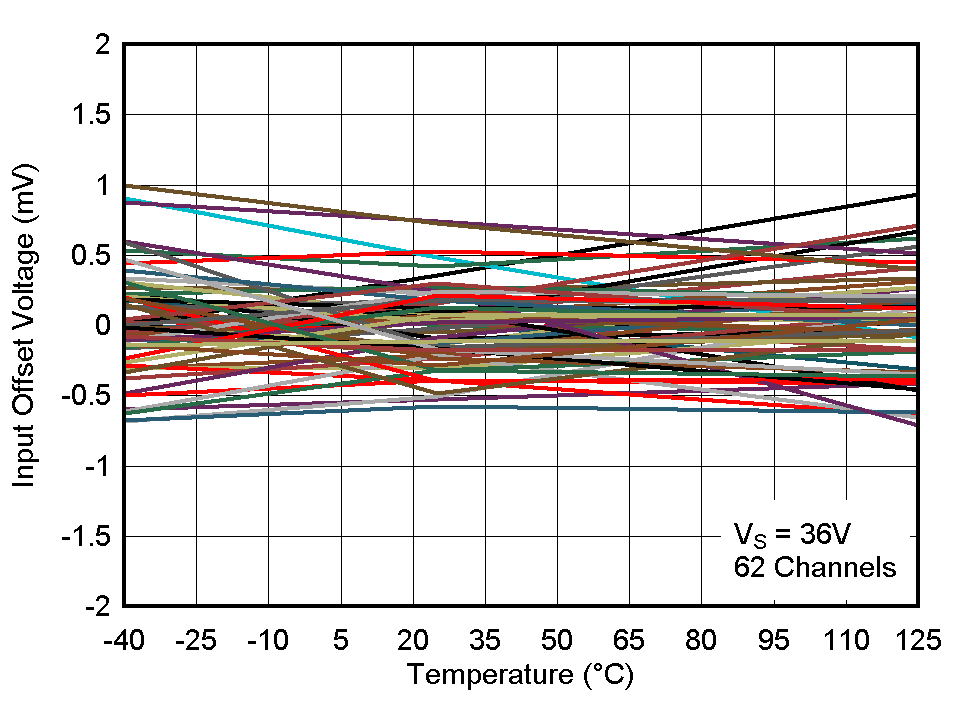

GUID-28D41752-7FF1-4734-B898-397999011DC5-low.gifFigure 3-16 Input Offset Voltage vs. Temperature at 36
GUID-8F6B6F10-22D3-4936-8758-20DAAE88D496-low.gifFigure 3-18 Input Offset Voltage vs. Supply Voltage at 25°C

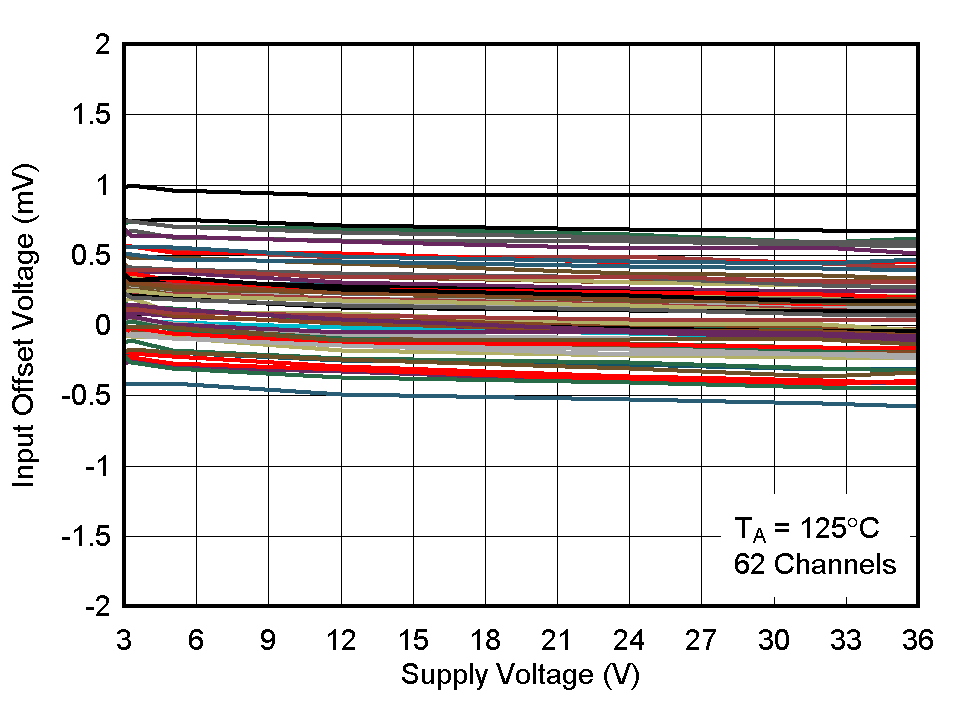

GUID-C7900F83-4537-461D-A21E-02865D76A8D8-low.gifFigure 3-20 Input Offset Voltage vs. Supply Voltage at 125°C
GUID-A5784C69-EB5D-457C-B477-9DA05E1811C8-low.gifFigure 3-22 Input Bias Current vs. Input Voltage at 5V

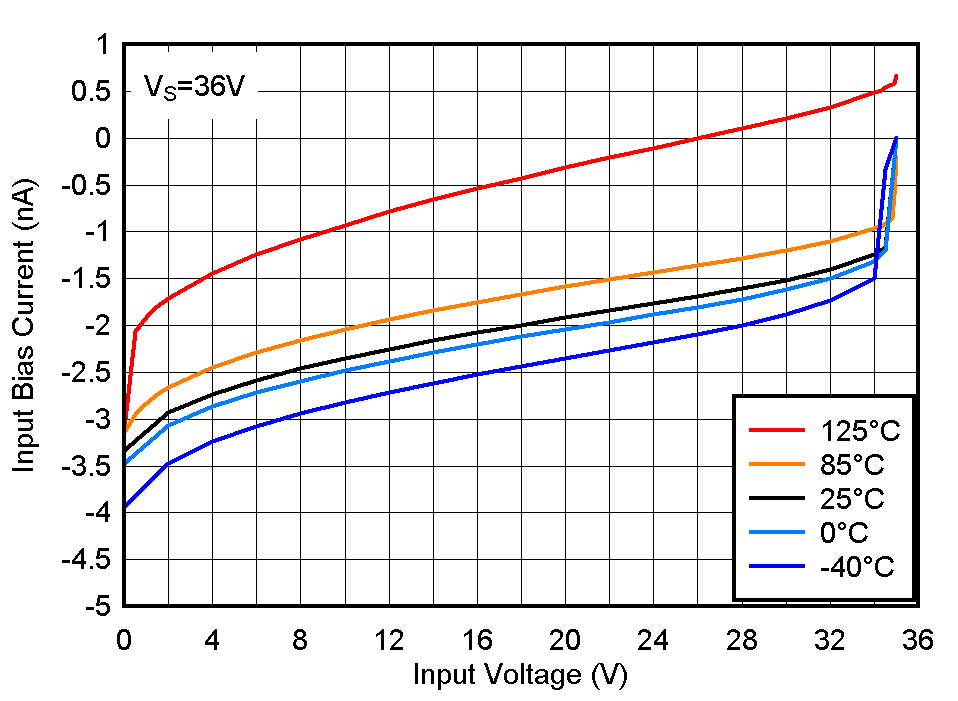

GUID-D5DEF217-68C5-4799-B272-6D081247855E-low.gifFigure 3-24 Input Bias Current vs. Input Voltage at 36V

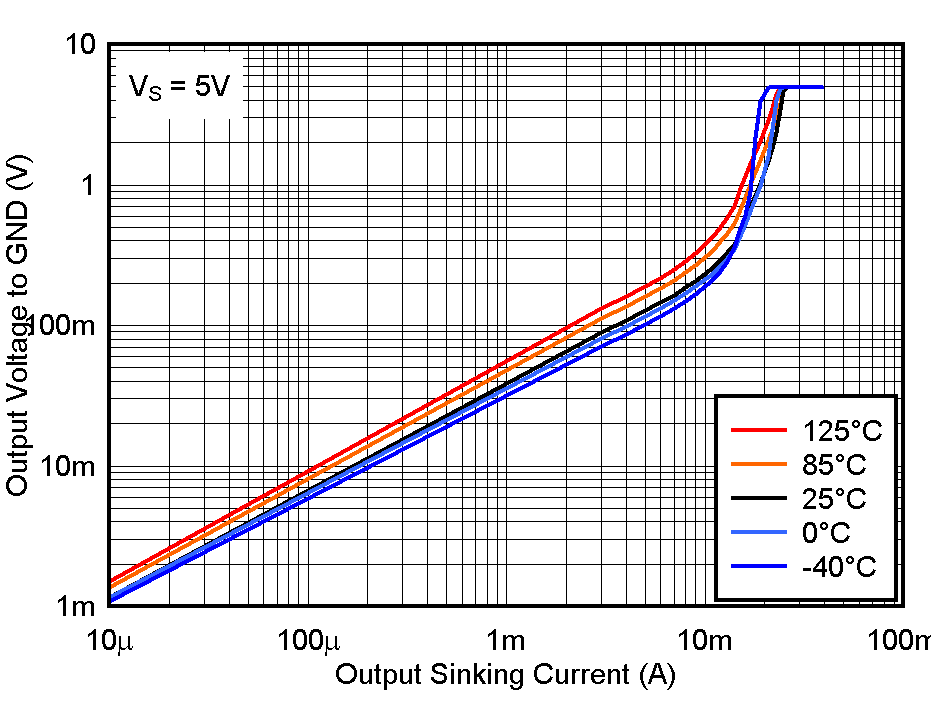

GUID-F90CC653-BAC1-41B9-B9E6-751BB0265D15-low.gifFigure 3-26 Output Low Voltage vs. Output Sinking Current at 5V
GUID-97FFDA69-F9AB-4581-833B-E8D9F33E3BEB-low.gifFigure 3-28 Output Low Voltage vs.Output Sinking Current at 36V

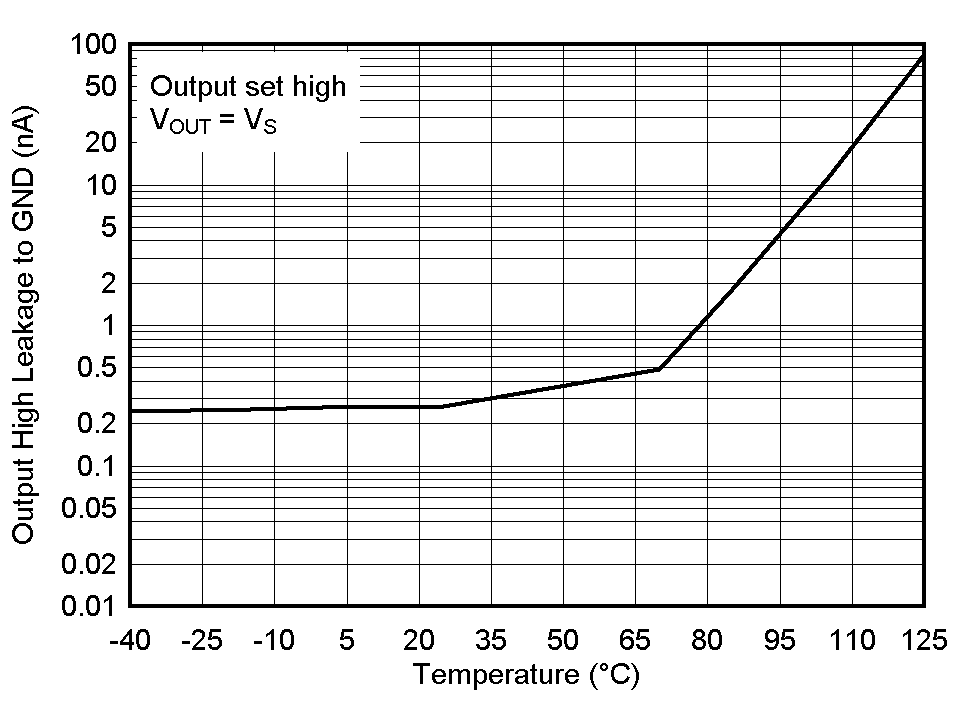

GUID-F7E7A9A8-B593-40B0-9237-133FE8B18C67-low.gifFigure 3-30 Output High Leakage Current vs. Temperature at 36V
GUID-ED89463A-C19A-4A37-8948-1203B0C20CA2-low.gifFigure 3-32 Low to High Propagation Delay vs. Input Overdrive Voltage, 5V

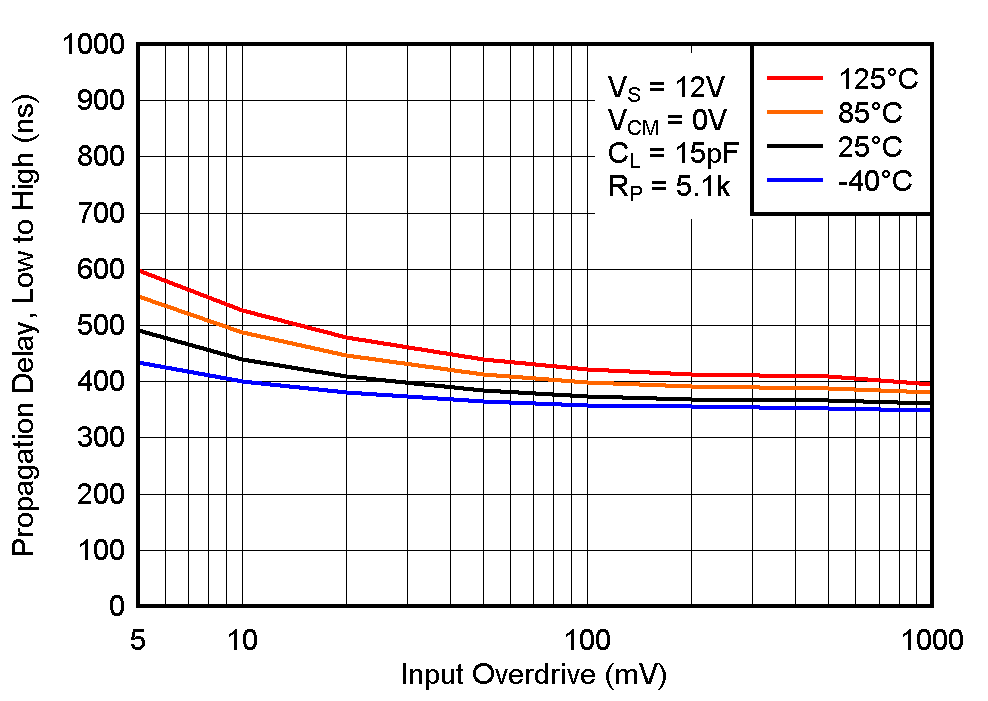

GUID-9CFCE2E8-9A3A-4CE6-BA14-8210D8E9A9F2-low.gifFigure 3-34 Low to High Propagation Delay vs. Input Overdrive Voltage, 12V

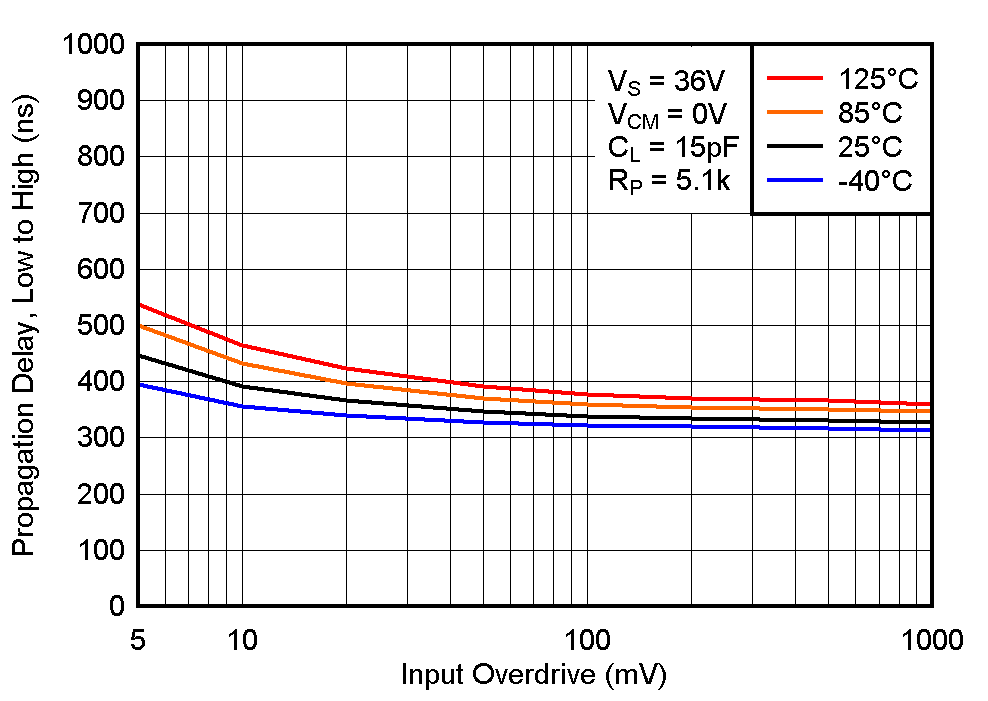

GUID-FC3F868A-8E13-4EE4-BC6F-66859468E15E-low.gifFigure 3-36 Low to High Propagation Delay vs. Input Overdrive Voltage, 36V

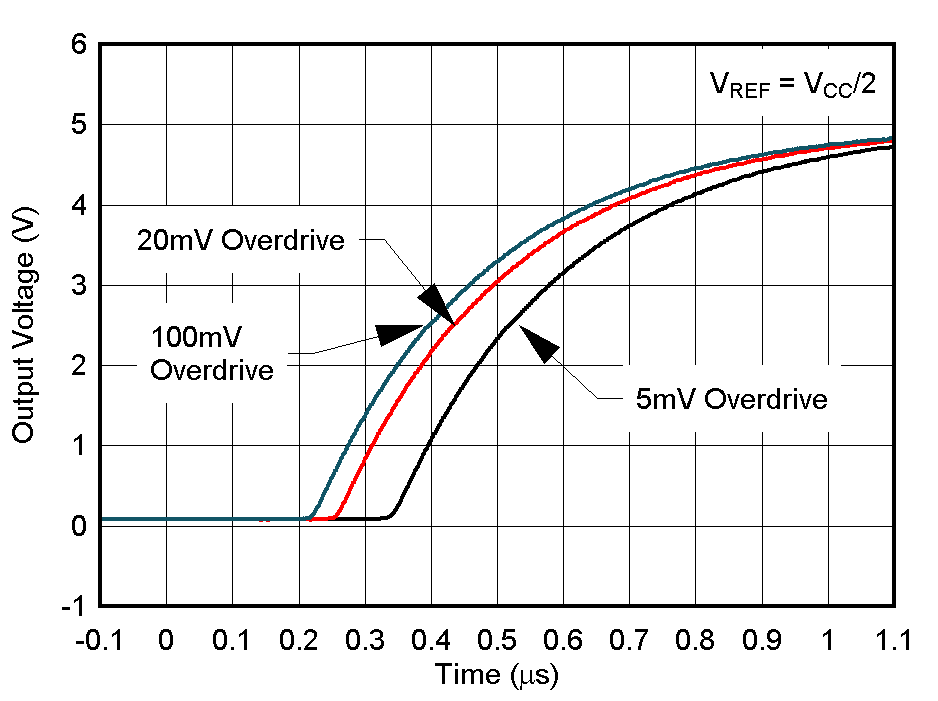

GUID-9DE8CC89-53CC-4618-9996-08BD02BC21B6-low.gifFigure 3-38 Response Time for Various Overdrives, Low-to-High Transition
