Layout

Layout Guidelines

Careful PCB layout is critical to achieve low EMI and stable power supply operation. Make the high frequency current loops as small as possible, and follow these guidelines of good layout practices:

  1. Keep the high-current paths short. This is essential for stable, jitter-free operation.
  2. Keep the power traces and load connections short. This is essential for high efficiency. Using 2 oz or thicker copper can enhance full load efficiency.
  3. Minimize current-sensing errors by routing CS and VOUT using a kelvin sensing directly across the current sense resistor (RSENSE).
  4. Route high-speed switching nodes (HB, HO, LO, and SW) away from sensitive analog signals (FB, CS, and VOUT).

Layout Procedure

Place the power components first, with ground terminals adjacent to the low-side FET.

  • Mount the controller IC as close as possible to the high and low-side MOSFETs. Make the grounds and high and low-sided drive gate drive lines as short and wide as possible. Place the series gate drive resistor as close to the MOSFET as possible to minimize gate ringing.
  • Locate the gate drive components (D1 and C12) together and near the controller IC; refer to Figure 38. Be aware that peak gate drive currents can be as high as 4 A. Average current up to 75 mA can flow from the VCC pin to the VCC capacitor through the bootstrap diode to the bootstrap capacitor. Size the traces accordingly.
  • Figure 39 shows the high frequency loops of the synchronous buck converter. The high frequency current flows through Q1 and Q2, through the power ground plane and back to VIN through the ceramic capacitors C6, C7, and C8. This loop must be as small as possible to minimize EMI. Refer to Figure 41 and Figure 42 for the recommended PCB layout.
  • Make the PGND and AGND connections to the LM5141 controller as shown in Figure 40. Create a power grounds directly connected to all high-power components and an analog ground plane for sensitive analog components. The analog ground plane (AGND) and power ground plane (PGND) must be connected at a single point directly under the IC (at the die attach pad or DAP).

Layout Examples

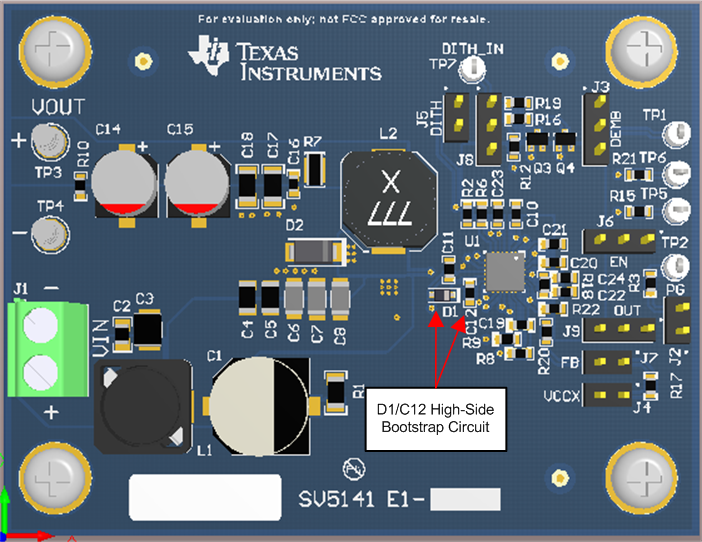

LM25141 evm_top_side_snvsaj6.png Figure 38. EVM Top Side

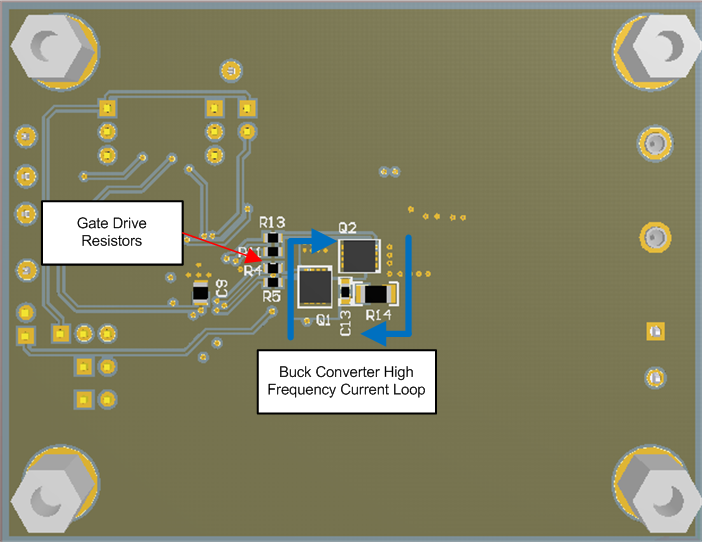

LM25141 evm_bottom_layer_high_frequency_current_loop_snvsaj6.png Figure 39. EVM Bottom Layer, High Frequency Current Loop
LM25141 evm_agnd_pgnd_connections_snvsaj6.png Figure 40. AGND and PGND Connections

Figure 41 and Figure 42 show the Top and Bottom layer of the LM5141 EVM.

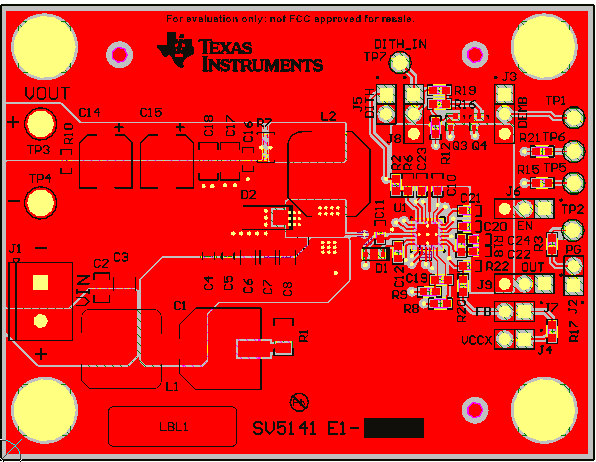

LM25141 evm_top_layer_snvsaj6.png Figure 41. EVM Top Layer

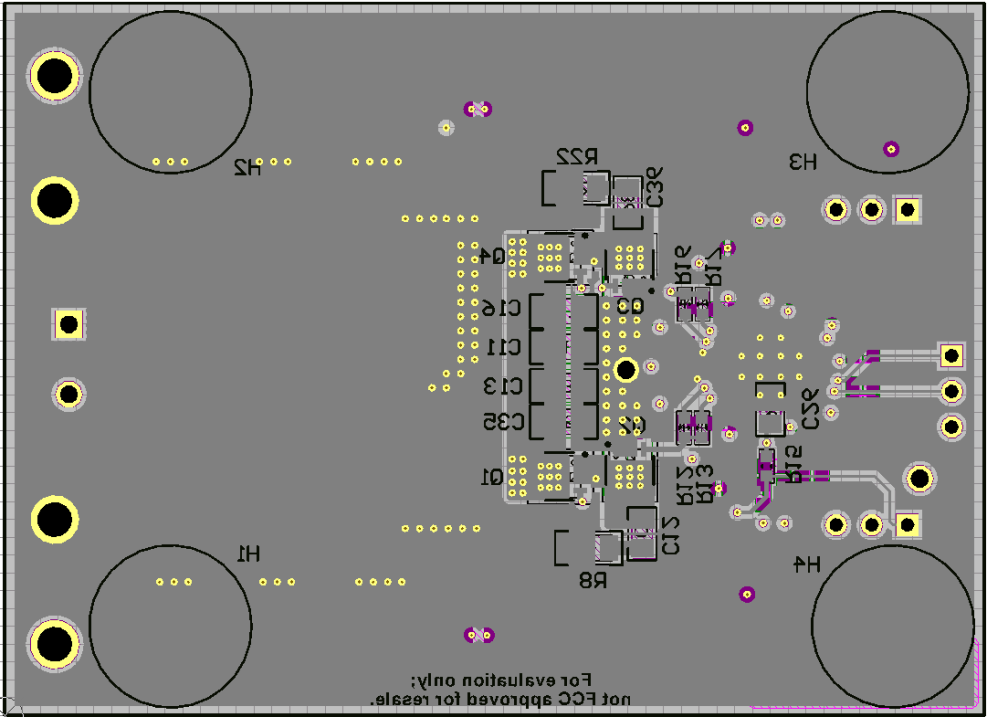

LM25141 evm_bottom_layer_snvsaj6.png Figure 42. EVM Bottom Layer
