ZHCSGG4 June   2017 LM1086-MIL

PRODUCTION DATA.

  1. 特性
  2. 应用
  3. 说明
  4. 修订历史记录
  5. Pin Configuration and Functions
  6. Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Typical Characteristics
  7. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Ripple Rejection
      2. 7.3.2 Load Regulation
      3. 7.3.3 Overload Recovery
    4. 7.4 Device Functional Modes
      1. 7.4.1 Output Voltage
      2. 7.4.2 Stability Consideration
      3. 7.4.3 Protection Diodes
  8. Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Applications
      1. 8.2.1 1.2-V to 15-V Adjustable Regulator
        1. 8.2.1.1 Design Requirements
        2. 8.2.1.2 Detailed Design Procedure
        3. 8.2.1.3 Application Curve
    3. 8.3 Other Applications
      1. 8.3.1  Adjustable at 5 V
      2. 8.3.2  5-V Regulator with Shutdown
      3. 8.3.3  Battery Charger
      4. 8.3.4  Adjustable Fixed Regulator
      5. 8.3.5  Regulator With Reference
      6. 8.3.6  High-Current Lamp-Driver Protection
      7. 8.3.7  Battery-Backup-Regulated Supply
      8. 8.3.8  Ripple Rejection Enhancement
      9. 8.3.9  Automatic Light Control
      10. 8.3.10 Remote Sensing
  9. Power Supply Recommendations
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
    3. 10.3 Thermal Considerations
  11. 11器件和文档支持
    1. 11.1 文档支持
      1. 11.1.1 相关文档
    2. 11.2 接收文档更新通知
    3. 11.3 社区资源
    4. 11.4 商标
    5. 11.5 静电放电警告
    6. 11.6 Glossary
  12. 12机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
  • Y|0
散热焊盘机械数据 (封装 | 引脚)
订购信息

Pin Configuration and Functions

NGN Package
8-Pin WSON
Top View
LM1086-MIL 10094866.gif

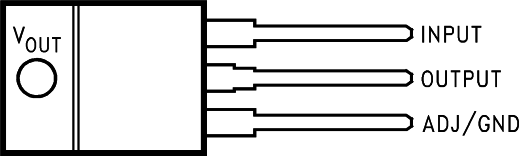

NDE Package
3-Pin TO-220
Top View
LM1086-MIL 10094802.png
KTT Package
3-Pin DDPAK/TO-263
Top View
LM1086-MIL 10094804.png

Pin Functions

PIN I/O DESCRIPTION
NAME NUMBER
KTT/NDE NGN
ADJ/GND 1 1 –– Adjust pin for the adjustable output voltage version. Ground pin for the fixed output voltage versions.
VIN 3 2 I Input voltage pin for the regulator.
VOUT 2, TAB 6, 7, 8, PAD O Output voltage pin for the regulator.
N/C 3, 4, 5 –– No connection
