7.6 Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 2000 (unless otherwise noted)

N = 3172, mean = –4.678 µV, std dev = 5.715 µV
Figure 7-1 Typical Distribution of Input Offset Voltage
N = 48
Figure 7-3 Input-referred Offset Voltage vs Temperature
N = 527, mean = 17.876 nA, std dev = 2.875 nA
Figure 7-5 Typical Distribution of Input Bias Current
N = 1080, mean = 356.396 ppm, std dev = 186.085 ppm
Figure 7-7 Typical Distribution of Gain Error
VREF = 0 V
Figure 7-9 Input Common-Mode Voltage vs Output Voltage

Figure 7-11 Positive Input Bias Current vs Input Common-Mode Voltage

Figure 7-13 Input Offset Current vs Temperature

Figure 7-15 CMRR vs Frequency (RTI)

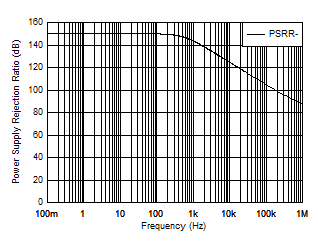

Figure 7-17 Negative PSRR vs Frequency (RTI)

Figure 7-19 Current Noise Spectral Density vs Frequency (RTI)
No Load
Figure 7-21 Gain Error vs Temperature

Figure 7-23 Large-Signal Step Response

Figure 7-25 Small Signal Response

Figure 7-27 Supply Current vs Temperature

Figure 7-29 Negative Output Voltage Swing vs Output Current

Figure 7-31 Short Circuit Current (Source + Sink) vs Temperature
N = 45, mean = 0.116 µV/°C, std dev = 0.102 µV/°C
Figure 7-2 Typical Distribution of Input Offset Voltage Drift
N = 527, mean = 0.1369 nA, std dev = 1.222 nA
Figure 7-4 Typical Distribution of Input Offset Current
N = 527, mean = -0.0840 µV/V, std dev = 0.0420 µV/V
Figure 7-6 Typical CMRR Distribution
N = 7
Figure 7-8 CMRR vs Temperature

Figure 7-10 Input Bias Current vs Temperature

Figure 7-12 Negative Input Bias Current vs Input Common-Mode Voltage

Figure 7-14 Input Offset Current vs Input Common-Mode Voltage

Figure 7-16 Positive PSRR vs Frequency (RTI)

Figure 7-18 Voltage Noise Spectral Density vs Frequency (RTI)

Figure 7-20 0.1-Hz to 10-Hz RTI Voltage Noise

Figure 7-22 Closed Loop Gain vs Frequency

Figure 7-24 Small Signal Response vs Capacitive Loads

Figure 7-26 Slew Rate vs Temperature

Figure 7-28 Positive Output Voltage Swing vs Output Current
N = 5
Figure 7-30 Input-Referred Offset Voltage vs Settling Time
