5 Pin Configuration and Functions

DGK Package
8-Pin VSSOP
Top View

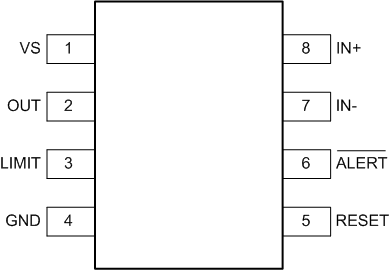

INA301 po_msop-8_bos713.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 VS Analog Power supply, 2.7 V to 5.5 V
2 OUT Analog output Output voltage
3 LIMIT Analog input Alert threshold limit input; see the Setting The Current-Limit Threshold section for details on setting the limit threshold
4 GND Analog Ground
5 RESET Digital input Transparent or latch mode selection input
6 ALERT Digital output Overlimit alert, active-low, open-drain output
7 IN– Analog input Connect to load side of the shunt resistor
8 IN+ Analog input Connect to supply side of the shunt resistor
