Typical Characteristics

All specifications at TA = 25 °C, VS = 5 V, VSENSE = VIN+ – VIN– = 0.5 V / Gain, and VCM = VIN– = 48 V, unless otherwise noted.


Figure 6-1 Common-Mode Rejection Ratio vs Temperature

VSENSE = 4 V / Gain

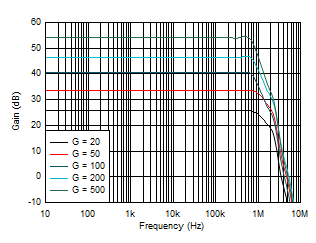

Figure 6-3 Gain vs Frequency

VSENSE = 0 V

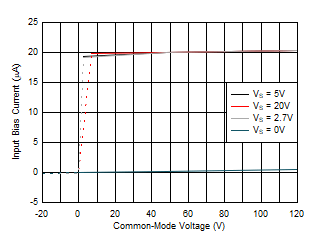

Figure 6-5 Input Bias Current vs Common-Mode Voltage

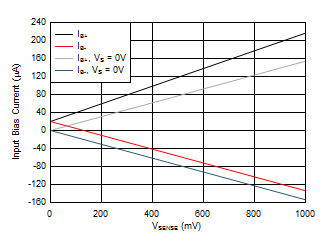

Figure 6-7 Input Bias Current vs VSENSE, A1 devices

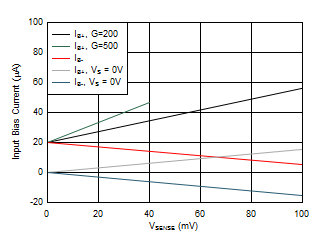

Figure 6-9 Input Bias Current vs VSENSE, A4 and A5 devices

VS = 5 V

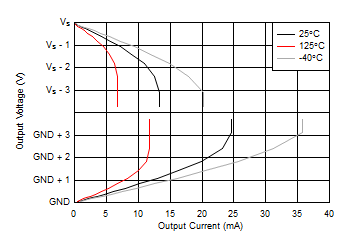

Figure 6-11 Output Voltage vs Output Current




Figure 6-13 Output Impedance vs Frequency

RL = 10 kΩ

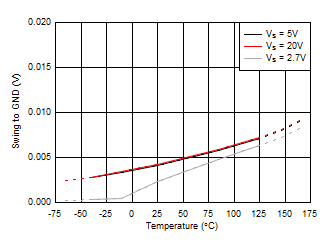

Figure 6-15 Swing to GND vs Temperature

Figure 6-17 Input Referred Noise

Figure 6-19 Quiescent Current vs Temperature

Figure 6-21 Quiescent Current vs Supply Voltage

RL = 10 kΩ VSENSE = 5 mV
Figure 6-23 Common-Mode Voltage Fast Transient Pulse, A5 devices

VSENSE = 0 mV
Figure 6-25 Start-Up Response

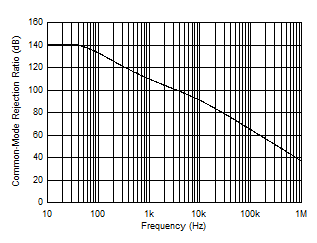

Figure 6-2 Common-Mode Rejection Ratio vs Frequency

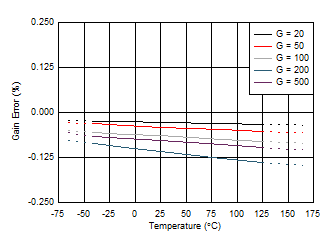

Figure 6-4 Gain Error vs Temperature

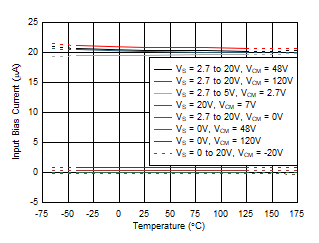

Figure 6-6 Input Bias Current vs Temperature

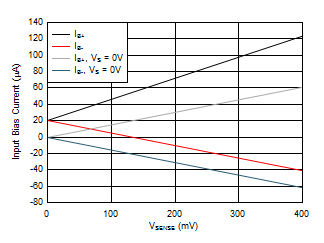

Figure 6-8 Input Bias Current vs VSENSE, A2 and A3 devices

VS = 2.7 V
Figure 6-10 Output Voltage vs Output Current

VS = 20 V
Figure 6-12 Output Voltage vs Output Current

RL = 10 kΩ

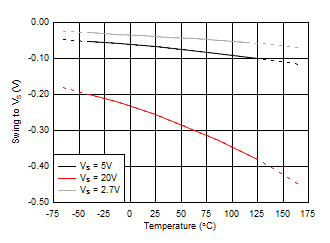

Figure 6-14 Swing to Supply vs Temperature

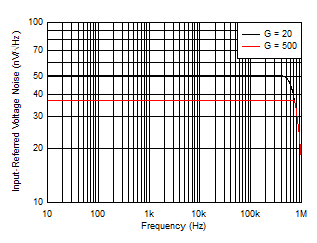

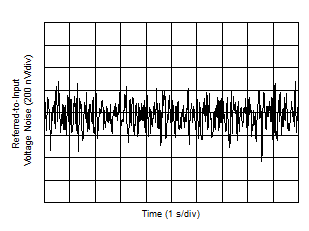

Figure 6-16 Input Referred Noise vs Frequency

Figure 6-18 Quiescent Current vs Output Voltage

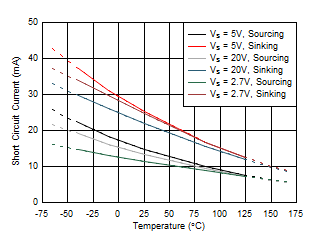

Figure 6-20 Short-Circuit Current vs Temperature

Figure 6-22 Quiescent Current vs Common-Mode Voltage

Figure 6-24 Step Response, A3 devices

VSENSE = 5 mV

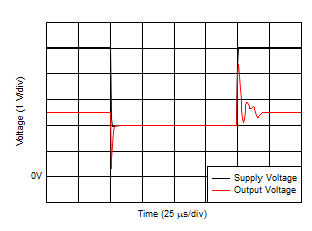

Figure 6-26 Supply Transient Response, A5 devices
