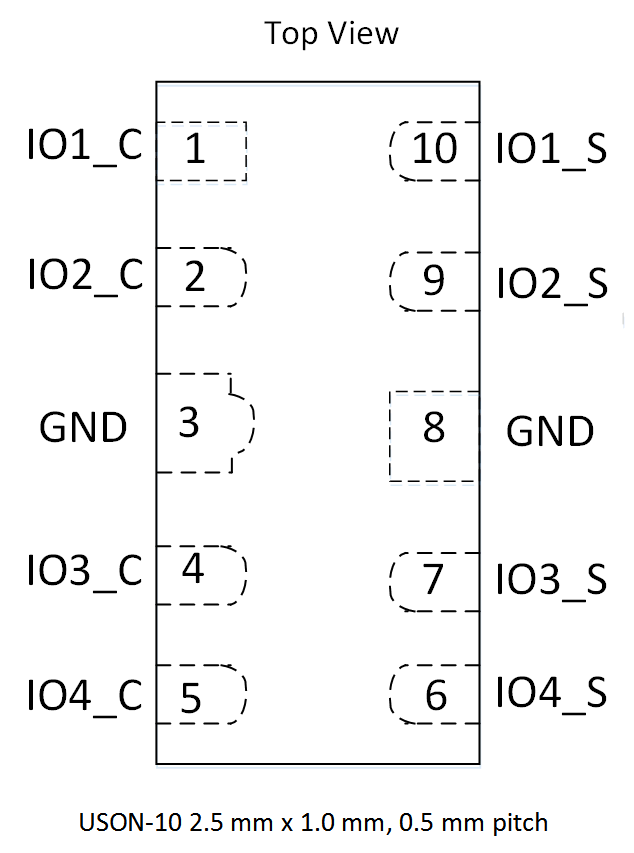

5 Pin Configuration and Functions

DQA Package
10-Pin USON
Top View
ESD224 Package_Outline_TopView.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
GND 3 Ground Ground. Connect to ground. These pins are shorted internally.
GND 8
IO1_C 1 Connector Side I/O ESD protected channel to be connected to the connector
IO2_C 2
IO3_C 4
IO4_C 5
IO4_S 6 System Side I/O Pin corresponding to IO4_C To be connected to the system side
IO3_S 7 System Side I/O Pin corresponding to IO3_C
IO2_S 9 System Side I/O Pin corresponding to IO2_C
IO1_S 10 System Side I/O Pin corresponding to IO1_C
