Parameter Measurement Information

DSLVDS1048 10088803.pngFigure 15. Receiver Propagation Delay and Transition Time Test Circuit

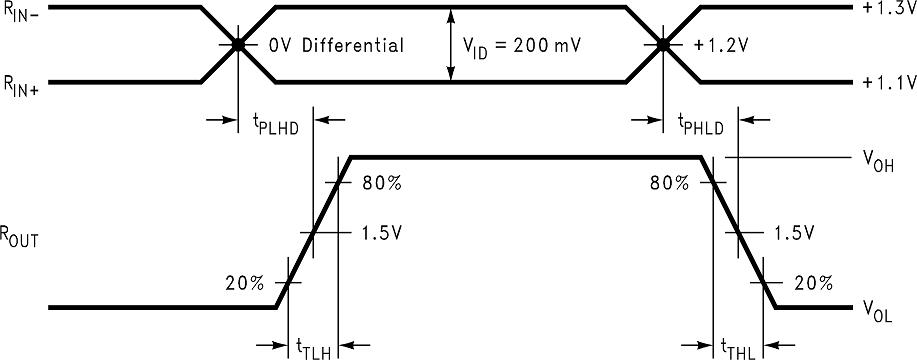

DSLVDS1048 10088804.pngFigure 16. Receiver Propagation Delay and Transition Time Waveforms
DSLVDS1048 10088805.png
CL includes load and test jig capacitance.

S1 = VCC for tPZL and tPLZ measurements.

S1 = GND for tPZH and tPHZ measurements.
Figure 17. Receiver TRI-STATE Delay Test Circuit
DSLVDS1048 10088806.pngFigure 18. Receiver TRI-STATE Delay Waveforms
