10 Layout

10.1 Layout Guidelines

As with any high speed design, board designers must maximize signal integrity by limiting reflections and crosstalk that can adversely affect high frequency and EMI performance. The following practices are recommended layout guidelines to optimize device performance.

  • Ensure that differential pair traces are always closely coupled to eliminate noise interference from other signals and take full advantage of the common mode noise canceling effect of the differential signals.
  • Maintain equal length on signal traces for a given differential pair.
  • Limit impedance discontinuities by reducing the number of vias on signal traces.
  • Eliminate any 90º angles on traces and use 45º bends instead.
  • If a via must exist on one signal polarity, mirror the via implementation on the other polarity of the differential pair.
  • Match the differential impedance of the selected physical media. This impedance should also match the value of the termination resistor that is connected across the differential pair at the receiver's input.
  • When possible, use short traces for LVDS inputs.

10.2 Layout Examples

The following images show an example layout of the DS90CR286A.Traces in blue correspond to the top layer and the traces in green correspond to the bottom layer. Note that differential pair inputs to the DS90CR286A are tightly coupled and close to the connector pins. In addition, observe that the power supply decoupling capacitors are placed as close as possible to the power supply pins with through vias in order to minimize inductance. The principles illustrated in this layout can also be applied to the 48-pin DS90CR216A.

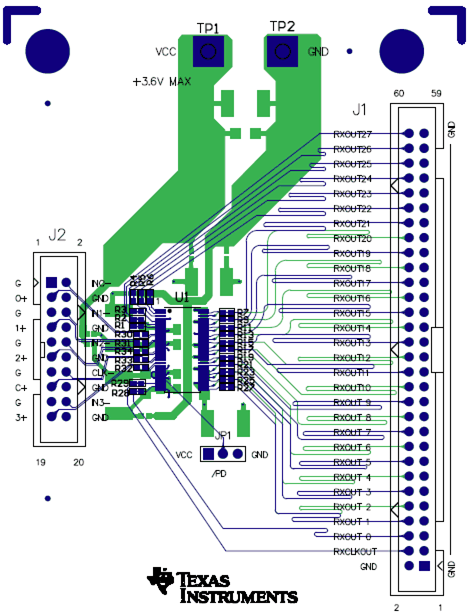

DS90CR216A DS90CR286A DS90CR286A-Q1 ds90cr286q_layout_example.gif Figure 27. Example Layout With DS90CR286A (U1)
DS90CR216A DS90CR286A DS90CR286A-Q1 ds90cr286q_layout_closeup_1.gif Figure 28. Example Layout Close-up
