5 Pin Configuration and Functions

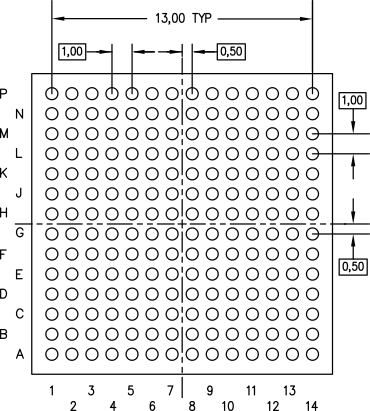

Plastic Ball Grid Array
196 Balls
Bottom View
DS125DF1610 PBGA.gif
DS125DF1610 DS110DF1610pinout_mw3.gif

Pin Functions

DS110DF1610,
DS125DF1610
PIN NAME		 DS150DF1610
PIN NAME		 PIN I/O DESCRIPTION
HIGH SPEED DIFFERENTIAL I/O
RX_1A_P
RX_1A_N		 RX_0_0P
RX_0_0N		 A14
B14		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_0B_P
Rx_0B_N		 RX_0_1P
RX_0_1N		 A12
B12		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_0A_P
RX_0A_N		 RX_0_2P
RX_0_2N		 A10
B10		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_2A_P
RX_2A_N		 RX_0_3P
RX_0_3N		 C13
D13		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_1B_P
RX_1B_N		 RX_0_4P
RX_0_4N		 C11
D11		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_3A_P
RX_3A_N		 RX_0_5P
RX_0_5N		 E14
F14		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_2B_P
RX_2B_N		 RX_0_6P
RX_0_6N		 E12
F12		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_4A_P
RX_4A_N		 RX_0_7P
RX_0_7N		 G13
H13		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_3B_P
RX_3B_N		 RX_1_0P
RX_1_0N		 G11
H11		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_4B_P
Rx_4B_N		 RX_1_1P
RX_1_1N		 J14
K14		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_5A_P
RX_5A_N		 RX_1_2P
RX_1_2N		 J12
K12		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_5B_P
RX_5B_N		 RX_1_3P
RX_1_3N		 L13
M13		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_6A_P
RX_6A_N		 RX_1_4P
RX_1_4N		 L11
M11		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_6B_P
RX_6B_N		 RX_1_5P
RX_1_5N		 N14
P14		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_7A_P
RX_7A_N		 RX_1_6P
RX_1_6N		 N12
P12		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
RX_7B_P
RX_7B_N		 RX_1_7P
RX_1_7N		 N10
P10		 I, CML Inverting and non-inverting CML-compatible, AC coupled differential inputs. An on-chip 100 Ohm differential termination resistor connects these inputs.
TX_1A_P
TX_1A_N		 TX_0_0P
TX_0_0N		 A1
B1		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_0B_P
TX_0B_N		 TX_0_1P
TX_0_1N		 A3
B3		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_0A_P
TX_0A_N		 TX_0_2P
TX_0_2N		 A5
B5		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_2A_P
TX_2A_N		 TX_0_3P
TX_0_3N		 C2
D2		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_1B_P
TX_1B_N		 TX_0_4P
TX_0_4N		 C4
D4		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_3A_P
TX_3A_N		 TX_0_5P
TX_0_5N		 E1
F1		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_2B_P
TX_2B_N		 TX_0_6P
TX_0_6N		 E3
F3		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_4A_P
TX_4A_N		 TX_0_7P
TX_0_7N		 G2
H2		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_3B_P
TX_3B_N		 TX_1_0P
TX_1_0N		 G4
H4		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_4B_P
TX_4B_N		 TX_1_1P
TX_1_1N		 J1
K1		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_5A_P
TX_5A_N		 TX_1_2P
TX_1_2N		 J3
K3		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_5B_P
TX_5B_N		 TX_1_3P
TX_1_3N		 L2
M2		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_6A_P
TX_6A_N		 TX_1_4P
TX_1_4N		 L4
M4		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_6B_P
TX_6B_N		 TX_1_5P
TX_1_5N		 N1
P1		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_7A_P
TX_7A_N		 TX_1_6P
TX_1_6N		 N3
P3		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
TX_7B_P
TX_7B_N		 TX_1_7P
TX_1_7N		 N5
P5		 O, CML Inverting and non-inverting CML-compatible differential outputs. Driver presents an output impedance of 100 ohms between these outputs when switching.
CLOCK PINS
REF_CLK_P
REF_CLK_N		 P7
P8		 I, LVDS/
LVCMOS		 Inverting and non-inverting
CML-compatible differential inputs for 25 MHz, 125 MHz, or 312.5 MHz clock. These differential signals are typically AC coupled with 1 µF capacitors
When configured for single-ended input operation, apply LVCMOS ref clock to REF_CLK_P and float REF_CLK_N. Single-ended signals should be DC coupled.
CLK_MON_P
CLK_MON_N		 A7
A8		 O, LVDS Inverting and non-inverting
CML-compatible differential outputs to monitor system differential clock.
When daisy chaining to another retimer the output frequency should be set to 25 MHz.
SMBUS INTERFACE
SDA_IO M7 I/O,
Open Drain		 Data Input / Open Drain Output
External pull-up resistor is required, typically in the 2kΩ to 5kΩ range. Pull-up value should be selected according to system implementation.
Pin is 3.3 V LVCMOS tolerant.
SCL_IO L6 I/O,
Open Drain		 Clock input/output
External pull-up resistor is required, typically in the 2kΩ to 5kΩ range. Pull-up value should be selected according to system implementation.
Pin is 3.3 V LVCMOS tolerant
EEPROM configuration (SMBus Master mode)
JTAG INTERFACE(1)
TMS_IO B7 I, LVCMOS JTAG Test Mode Select, internal pull-up
TDO_IO C7 O, LVCMOS JTAG Test Data Out
TRST_IO C8 I, LVCMOS JTAG Test Reset, internal pull-up
TCK_IO D6 I, LVCMOS JTAG Test clock, internal pull-up
TDI_IO D7 I, LVCMOS JTAG Test Data Input, internal pull-up
OTHER PINS
RESET_IO L8 I, LVCMOS Resets registers and state machines on rising edge. Pulse LOW for minimum of 10µs to perform reset. Pin should be pulled HIGH during power on.
INTERR_IO M8 O, Open Drain Active Low interrupt signal. Pin goes low when an interrupt event occurs. Interrupts must be enabled via SMBus.
ADDR0 B6 I, LVCMOS 4 level input strap pin for SMBus address code LSB. Standard LVCMOS output.
ADDR1 D5 I, LVCMOS 4 level input strap pin for SMBus address code MSB. Standard LVCMOS output.
READ_EN G5 I, LVCMOS Tie LOW for SMBus slave mode normal operation. Pin has internal pull down.
In SMBus slave mode, tie HIGH to force SMBus address = 0x30.
ALL_DONE L5 O, LVCMOS EEPROM load status. Pin goes LOW when EEPROM load is complete.
EN_SMB N8 I, LVCMOS Connect to GND through ≤1kΩ resistor for SMBus slave operation.
Connect to VDD through ≤1kΩ resistor for EEPROM configuration
POWER
VDD E5, E7, E9, E10, F5, F6, F8, F10, G7, G9, H6, H8, J5, J7, J9, J10, K5, K6, K8, K10 Power VDD = 2.5 V +/- 5%
GND A2, A4, A6, A9, A11, A13, B2, B4, B9, B11, B13, C1, C3, C5, C10, C12, C14, D1, D3, D10, D12, D14, E2, E4, E6, E8, E11, E13, F2, F4, F7, F9, F11, F13, G1, G3, G6, G8, G10, G12, G14, H1, H3, H5, H7, H9, H10, H12, H14, J2, J4, J6, J8, J11, J13, K2, K4, K7, K9, K11, K13, L1, L3, L10, L12, L14, M1, M3, M5, M10, M12, M14, N2, N4, N6, N9, N11, N13, P2, P4, P6, P9, P11, P13 Power Ground reference
N/C B8, C6, C9, D8, D9, L7, L9, M6, M9, N7 No Connect, leave floating
(1) Refer to the DS125DF1610 Programming Guide for additional information
