Application Information

The typical application for a haptic driver is in a touch-enabled system that already has an application processor that makes the decision on when to execute haptic effects.

The DRV2667 device is configured and can be used fully with I2C communication to stream or launch haptic effects. Additionally, the system designer may decide to use the analog input to stream the desired haptic effects.

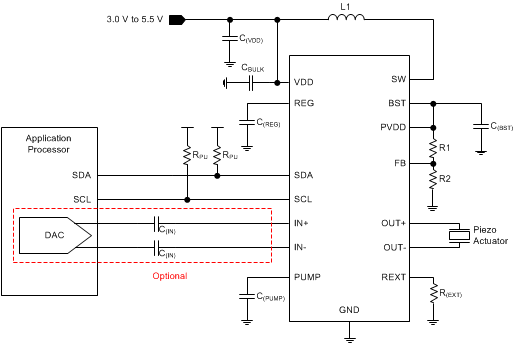

GUID-F8BE5923-AC72-4DEA-9BE5-AD882B107415-low.gifFigure 8-1 Typical Application Configuration
Table 8-1 Recommended External Components
COMPONENTDESCRIPTIONSPECIFICATIONTYPICAL VALUE
C(VDD)Input capacitorCapacitance1 µF
C(REG)Regulator capacitorCapacitance0.1 µF
C(BST)Boost capacitorCapacitance0.1 µF
CBULKBulk capacitorCapacitance10 µF
C(PUMP)Internal charge pump capacitorCapacitance0.1 µF
C(IN)AC coupling capacitor (optional)Capacitance1 µF
R1Boost feedback resistor
(see Section 7.5.1)
Resistance768 kΩ
R2Boost feedback resistor
(see Section 7.5.1)
Resistance9.76 kΩ
R2Current limit resistor
(see Section 7.5.2)
Resistance13 kΩ
R(PU)Pullup resistorResistance2.2 kΩ
L1Boost inductorInductance3.3 µH
